Page 64
Installation and Operation Manual - HE275CF
ENGLISH

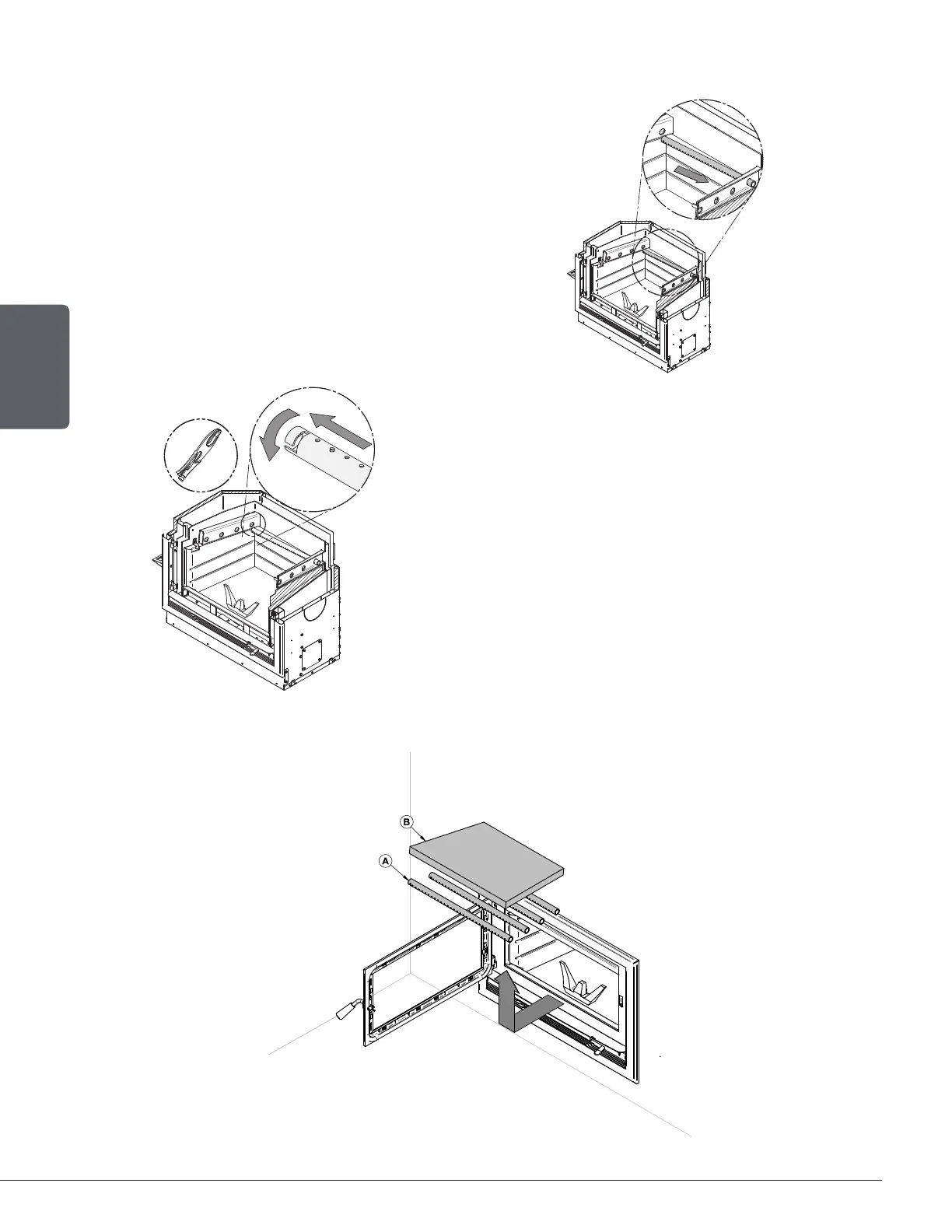

APPENDIX 7: SECONDARY AIR TUBES AND BAFFLE INSTALLATION
1. Starting with the rear tube, lean and insert
the right end of the secondary air tube into
the rear right channel hole. Then lift and
insert the left end of the tube into the rear
left channel.
2. Align the notch in the left end of the tube with
the key of the left air channel hole. Using a
«Wise grip» hold the tube and lock it in place
by turning the tube as shown. Make sure the
notch reaches the end of the key way.
3. Repeat for center back tube.
4. Put the baffle in place.
5. Repeat steps 1 and 2 for the two front tubes.
6. To remove the tubes use the above steps in
reverse order.
Note that secondary air tubes (A) can be replaced without removing the baffle board (B).
