Ventis HE275CF - Appendix 2: Optional Traditional Gravity Hot Air Distribution Kit Installation

Page 52
Installation and Operation Manual - HE275CF
ENGLISH
APPENDIX 2: OPTIONAL TRADITIONAL GRAVITY HOT AIR DISTRIBUTION
KIT INSTALLATION

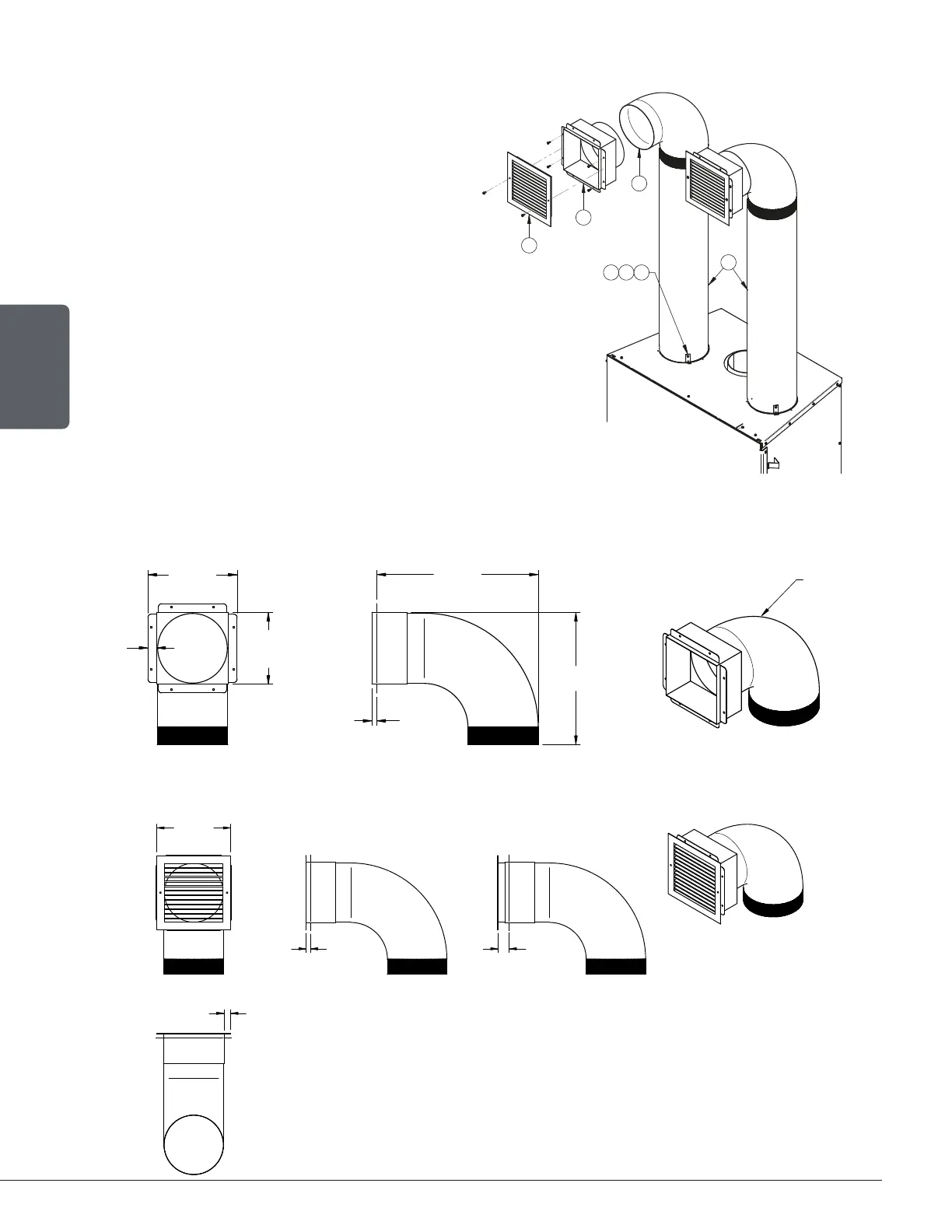

The kit includes:
− 2 hot air outlets (grilles (A) and frames (B));
− 2 90 elbows (C);
− 6 steel brackets (D) with fastening screws
(E) and self-tapping screws (F)
Parts not included in the kit:
− 8" rigid ducting (G), 26 ga, galvanized steel.
Dimensions of hot air outlet frame with elbow
Dimensions of hot air outlet decorative grille with elbow
A
B
C
G
FED
O
8"
204mm
18 1/2"
468mm
5/8"
14mm
8 1/4"
208mm
TYP.
10 1/4"
259mm
TYP.
1"
25mm
TYP.
15 1/8"
383mm
5/8"
14mm
MIN.
2"
38mm
MAX.
10"
254mm
TYP.
7/8"
23mm
TYP.
