Installation and Operation Manual - HE275CF
ENGLISH

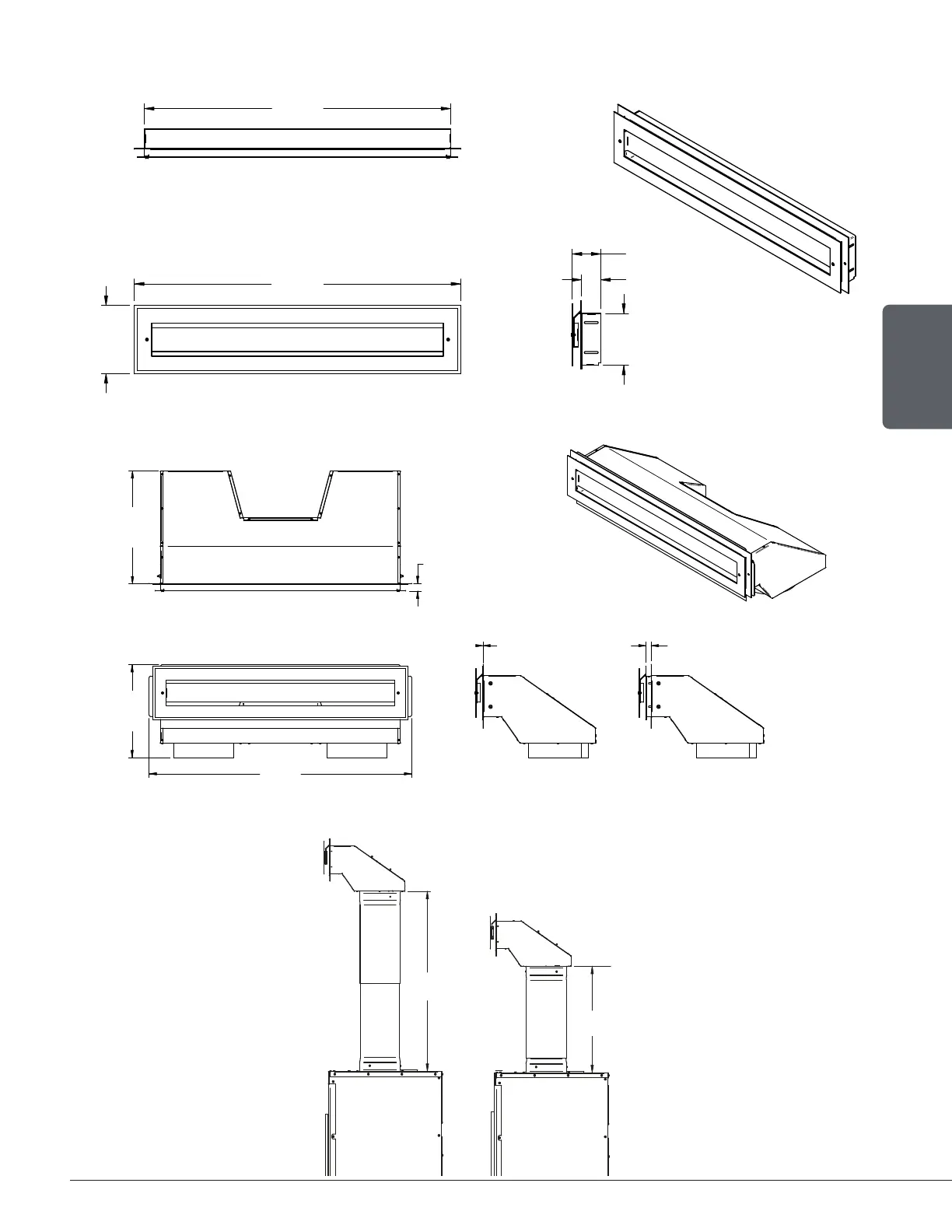

Dimensions of the decorative plate
Dimensions of assembled heat distribution box and adjustable decorative plate
Dimensions of telescoping section
5 3/8"
138mm
7 1/8"
181mm
32"
814mm
34 1/8"
867mm
2"
52mm
3"
76mm
0"
0mm
MIN.
12 1/2"
316mm
11/16"
17mm
MAX.
15 1/8"
384mm
35 1/8"
892mm
1"
25mm
36 1/8"
MAX
918mm
21 3/8"
543mm
MIN
