Installation and Operation Manual - HE275CF
ENGLISH
Installation
It is strongly recommended to wear gloves to complete the installation.

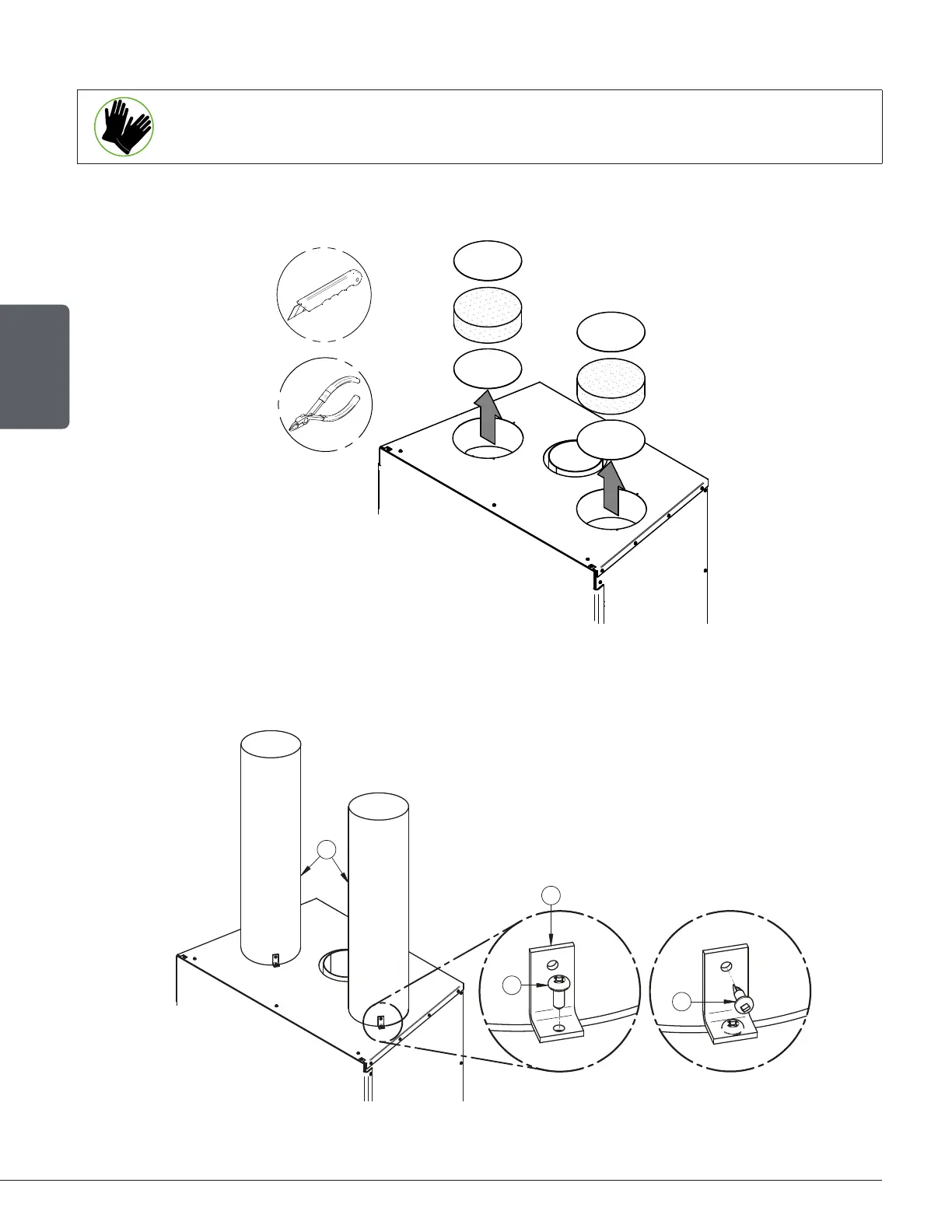

A) Remove the knockouts that close the 8" (20 cm) diameter holes on top of the fireplace. Then cut
and remove the insulation and the other set of knockouts inside the fireplace.
B) Screw the 6 steel brackets (D) with 6 screws (E) onto the top of the fireplace (3 per duct). Insert
the ducts (G) (not supplied) into each opening and screw in place in the brackets (D) with 6 self-
drilling screws (F).
1
2
1
6X
E
2
6X
F
D
G
