Installing and wiring the thermostat
To mount the thermostat to the wall box/wall socket, rst open the
thermostat by gently pushing the tabs in the buttom of the thermo-
stat. To x the thermostat, screw in properly sized screws into the
wall socket/wall box.
When proberly fastend and cables connected (see diagram below),
mount the frontpanel to the backpart again.
Electrical wall
box/socket

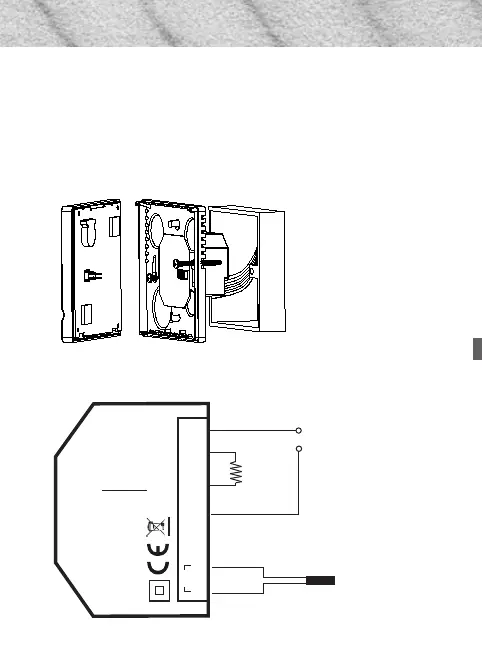

Wiring diagram
Remote sensor
Mains voltage: 85-240V~
raIP ting: IP30
S1
L
Load
S2
L
N
Load
N
13A
Max. load:
Temperature: 0T30
