S
ETUP
Installing the Paper Roll
18
C680 I
NSTALLATION
G
UIDE
R
A
F
T
R
E
V
I
S
I
O
N
B
.
6
Powered RS-232/4-
Pin Connection
The powered RS-232/4-pin connector on the back of the terminal is mainly
designed for 1D/2D barcode scanner.
Powered RS-232/
RJ11 Connection
Similar to 4-pin connection, powered RS-232/RJ11 connector on the back of the
terminal is designed for 1D/2D barcode scanner.
Installing the
Paper Roll
A fast, quiet thermal printer is built into the terminal. Before you can process
transactions that require a receipt or record, you must install a roll of thermal-
sensitive paper in the printer.
The ITP uses a roll of 40 mm single-ply, thermal-sensitive paper. A pink out-of-
paper indicator line appears on the edge of the paper approximately 18 inches
before the end of the roll.
After this line appears, there is enough paper remaining on the roll to conclude at
least one transaction.
To Install a Paper Roll
1
Gently pull the latch located on top of the terminal to unlock the paper roll
cover.

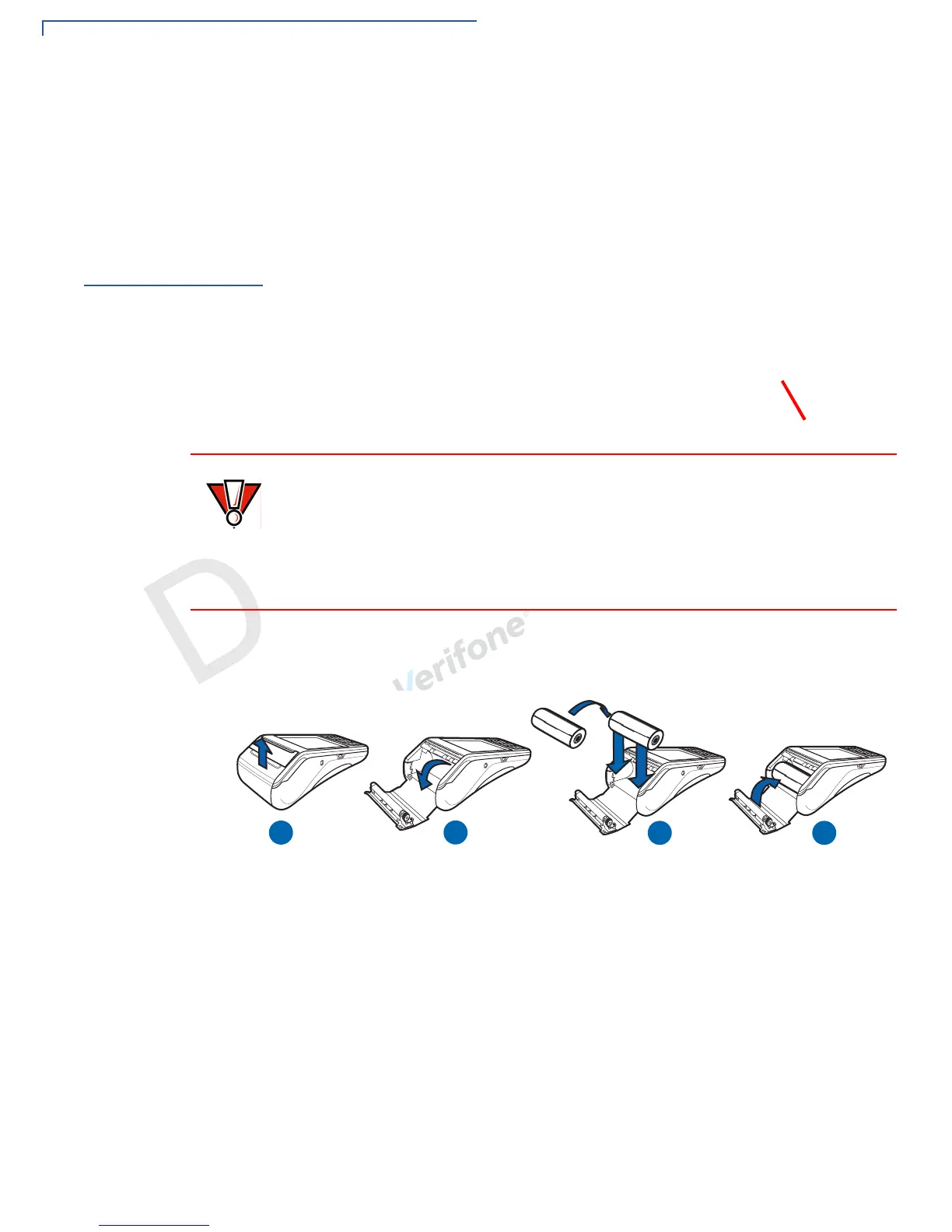

Figure 10 Paper Roll Installation
2
Lift the printer cover up to open.
3
Remove any partial roll of paper in the printer tray.
4
Loosen the glued leading edge of the new roll of paper or remove the
protective strip, if applicable. Unwind the paper roll past any glue residue.
5
Hold the roll so the paper feeds from the bottom of the roll.
6
Drop the paper roll into the printer tray.
7
Pull paper up past the glue residue on the paper roll.
CAUTION
Poor-quality paper can jam the printer and create excessive paper dust. To order
high-quality Verifone paper, refer to Accessories and Documentation.
Store thermal paper in a dry, dark area and handle carefully. Impact, friction,
temperature, humidity, and oils affect the color and storage characteristics of the
paper. Never load a roll of paper with folds, wrinkles, tears, or holes at the edges
in the print area.
A
B
C D
