Ruby2 Hardware Installation Guide
6 October 01, 2013

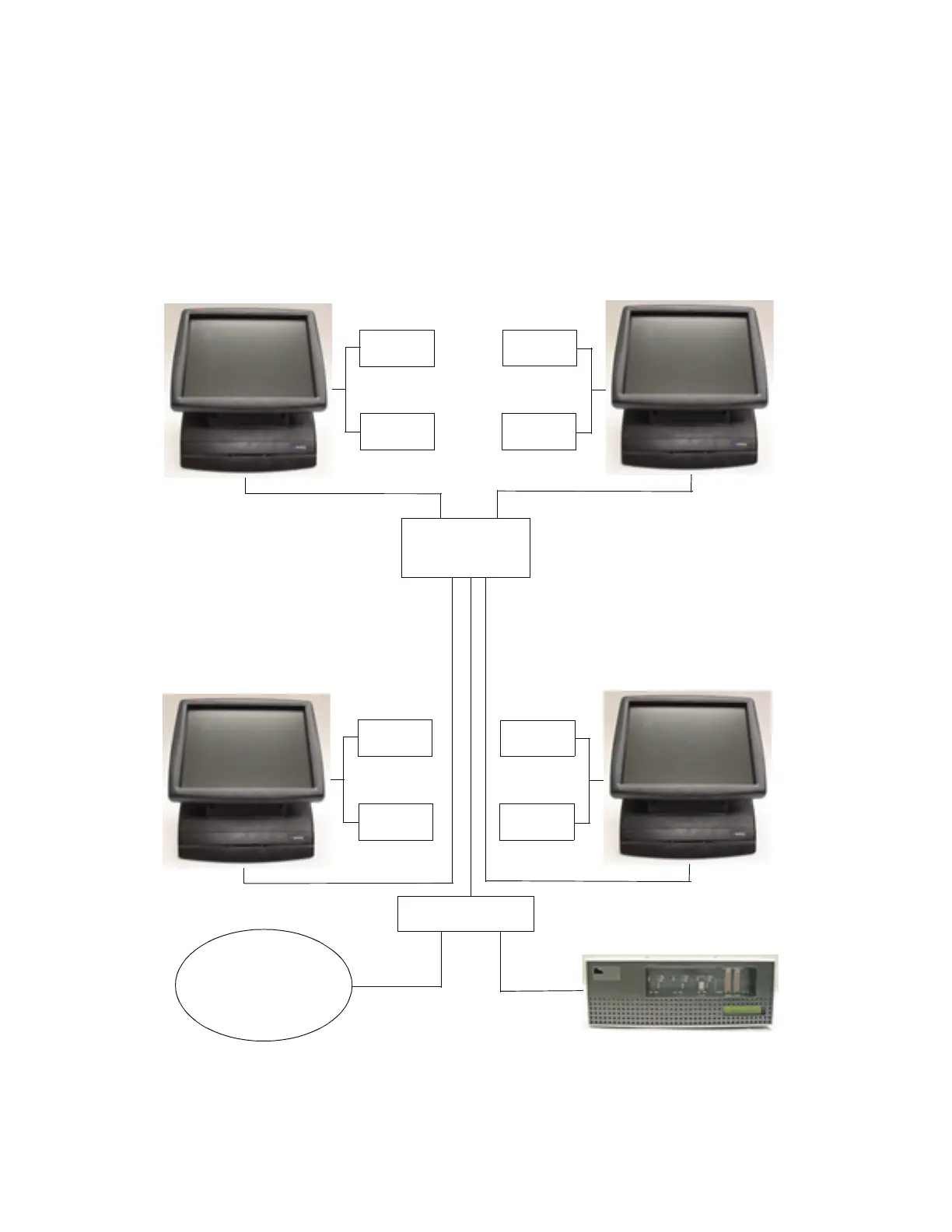

Configuring More Than Two Ruby2 Workstations
Installing more than two Ruby2 workstations requires a WAN/intranet or a
network switch as well as a router. The Ruby2 workstations use Ethernet
cables to connect to the network switch. network switches are available in
various sizes and usually support four or more workstations. The network
switch connects to the router using an Ethernet cable.
Customer
Display
Customer
Display
Printer
Printer
Router
Corporate
WAN / Intranet
Ruby2 / Commander Site Controller Configuration
Commander Site Controller
Ruby2
Ruby2
Customer
Display
Customer
Display
Printer
Printer
Ruby2
Ruby2
Network Switch
with more than two workstations
