TERMINAL SETUP
Examining Terminal Features
VX 520 GPRS CTLS I
NSTALLATION GUIDE 15
V
E
R
I
F
O
N
E
C
O
N
F
I
DE
N
T
I
A
L
TE
M
P
L
ATE
R
EV
F
Examining
Terminal
Features
Before you continue the installation process, notice the features of the VX 520
GPRS CTLS terminal (see Figure 2).

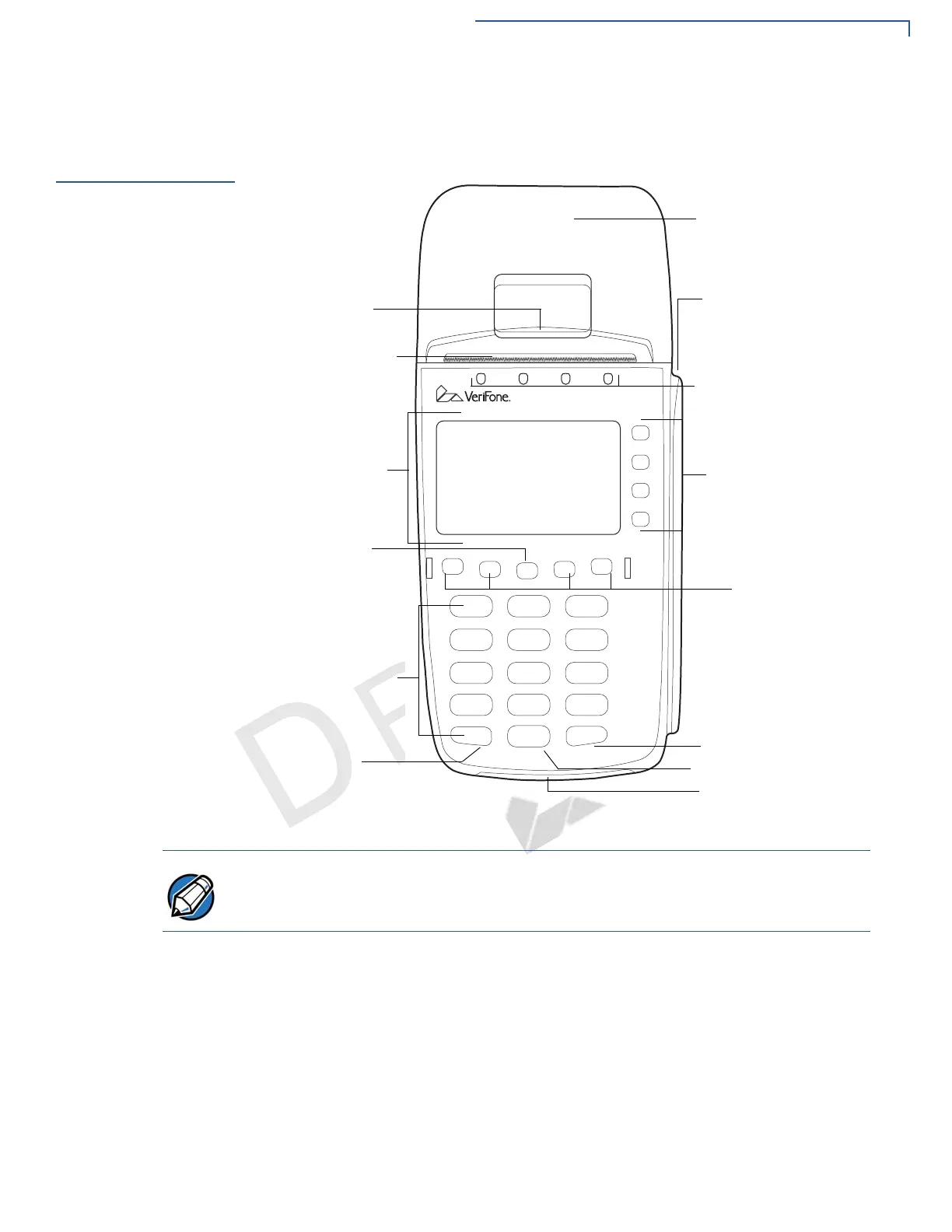

Figure 2 VX 520 GPRS CTLS Terminal Features (Front Panel)
Front Panel
The front panel includes the following features:
• A terminal display, backlit LCD screen. The screen also acts as the CTLS
tapping area for contactless transactions.
• Four LED indicators above the terminal display for CTLS transactions.
• Five types of keys:
a A backlit 12-key, telephone-style keypad.
b Four ATM-style function keys, labeled F1 to F4, to the right of the LCD
screen.
INTERNAL THERMAL
PRINTER
MAGNETIC CARD
READER
ATM-STYLE
FUNCTION
KEYS
PROGRAMMABLE
FUNCTION KEYS
ENTER KEY
BACKSPACE/CLEAR KEY
SMART CARD READER
CANCEL KEY
TELEPHONE-
STYLE KEYPAD
ALPHA KEY
TERMINAL DISPLAY
AND CTLS TAP AREA
SERRATED
METAL STRIP
PRINTER DOOR
LATCH
CTLS LED
INDICATORS
NOTE
VeriFone ships variants of the VX 520 GPRS CTLS terminals for different
markets. Your terminal may have a different configuration from the features
described in this section.

VeriFone VX 520 GPRS CTLS Specifications

General

Brand	VeriFone
Model	VX 520 GPRS CTLS
Category	Payment terminals
Language	English
