TERMINAL SETUP
Connecting Optional Devices
VX 520 GPRS CTLS I
NSTALLATION GUIDE 23
V
E
R
I
F
O
N
E
C
O
N
F
I
DE
N
T
I
A
L
TE
M
P
L
ATE
R
EV
F
6 Install an MSAM card by carefully sliding it into the slot until it is fully inserted.

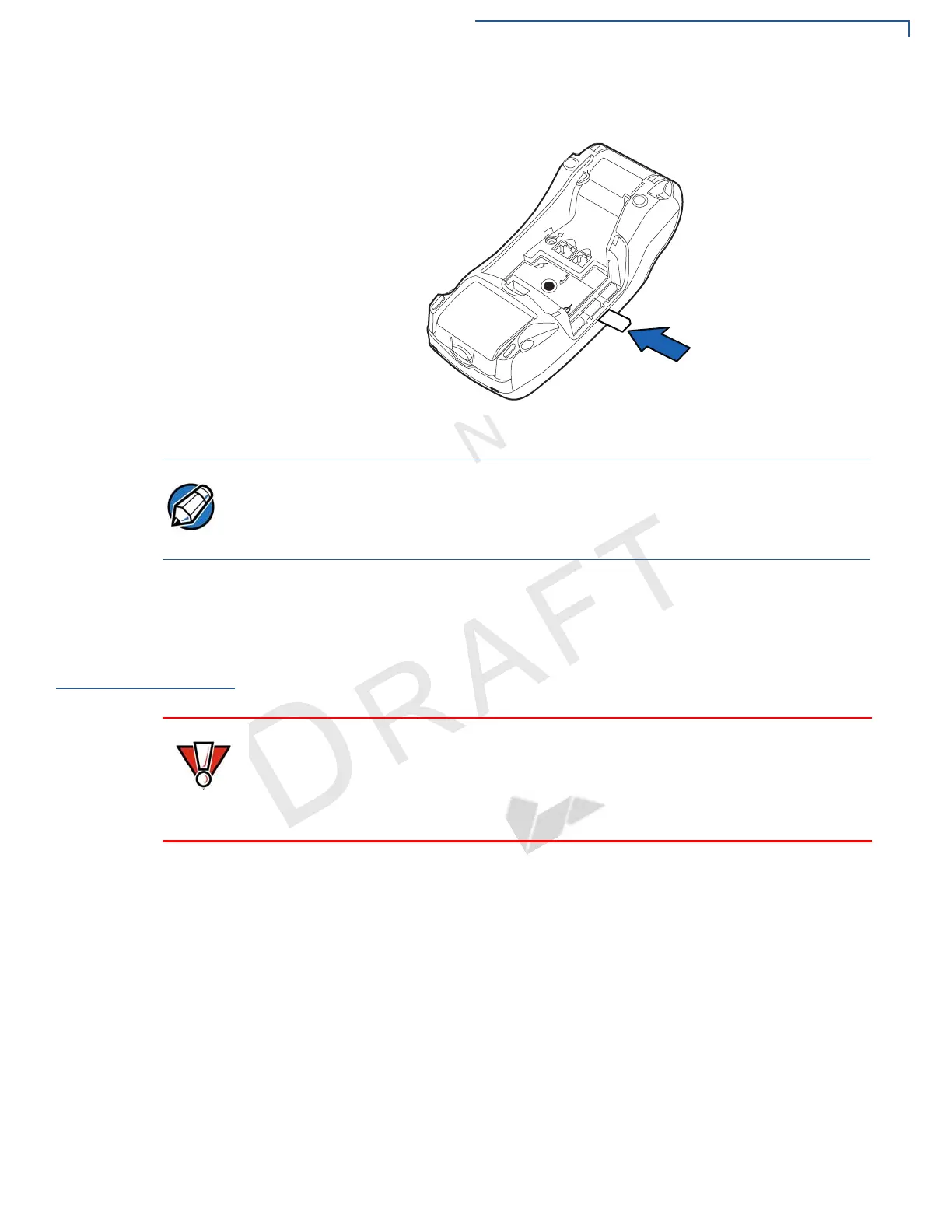

Figure 12 Installing an MSAM Card in a VX 520 GPRS CTLS Terminal
7 Close the MSAM cardholder panel, and then replace the terminal rear cover.
Connecting
Optional
Devices
The VX 520 GPRS CTLS terminal supports some peripheral devices designed for
use with electronic point-of-sale terminals.
Different terminals support different devices, so for more information about
optional devices, please contact your VeriFone distributor.
Optional Device
Connections
The VX 520 GPRS CTLS terminal has a port that can operate either as a PIN pad
port or an RS-232 port, depending on the power source available.
23
NOTE
Before inserting the MSAM card, position it as shown in Figure 12, with the card’s
gold contacts facing down. The cardholder connector base has an image
resembling the notched corner of an MSAM card to ensure the card is positioned
correctly.
CAUTION
Before connecting any peripheral device, remove the power cord from the
terminal and ensure that the green indicator LED is not lit. Reconnect the power
cord only after you are finished connecting the peripheral device(s). For complete
information about peripheral installation and use, refer to the user documentation
supplied with those devices.
