TERMINAL SETUP
Establishing Telephone Line Connections
VX 520 GPRS CTLS I
NSTALLATION GUIDE 19
V
E
R
I
F
O
N
E
C
O
N
F
I
DE
N
T
I
A
L
TE
M
P
L
ATE
R
EV
F
Establishing
Telephone Line
Connections
Connect the telephone cord to the communication port on the terminal, then route
it directly to a telephone wall jack (see Figure 6). This is a direct connection and
the line is dedicated to the terminal.

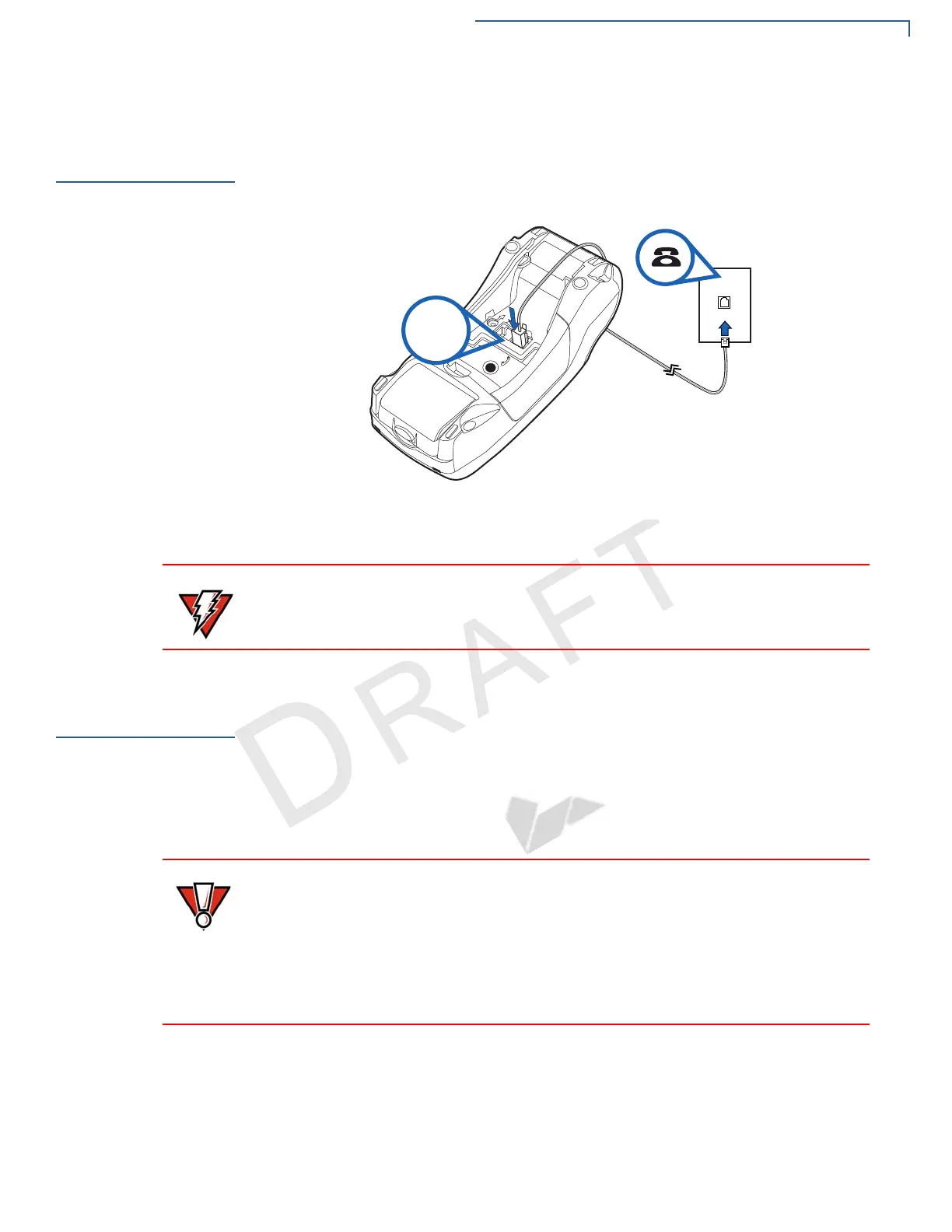

Figure 6 VX 520 GPRS CTLS Direct Telephone Connection
Installing a
Paper Roll in the
Printer
Before you can process transactions that require a receipt or record, you must
install paper in the printer.
The VX 520 GPRS CTLS uses a roll of 40 mm-diameter, single-ply, thermal-
sensitive paper.
A pink out-of-paper indicator line appears on the edge of the paper before the end
of the roll. After this line appears, there is enough paper remaining on the roll to
conclude at least one transaction.
23
RJ-11
WARNING
To reduce the risk of fire, use only No. 26AWG or larger UL Listed or CSA
Certified Telecommunication Line Cord.
CAUTION
Poor-quality paper can jam the printer and create excessive paper dust. To order
high-quality VeriFone paper, refer to Accessories and Documentation.
Store thermal paper in a dry, dark area. Handle thermal paper carefully: impact,
friction, temperature, humidity, and oils affect the color and storage
characteristics of the paper.
Never load a roll of paper with folds, wrinkles, tears, or holes at the edges.
