8
Vermont Castings UVS27

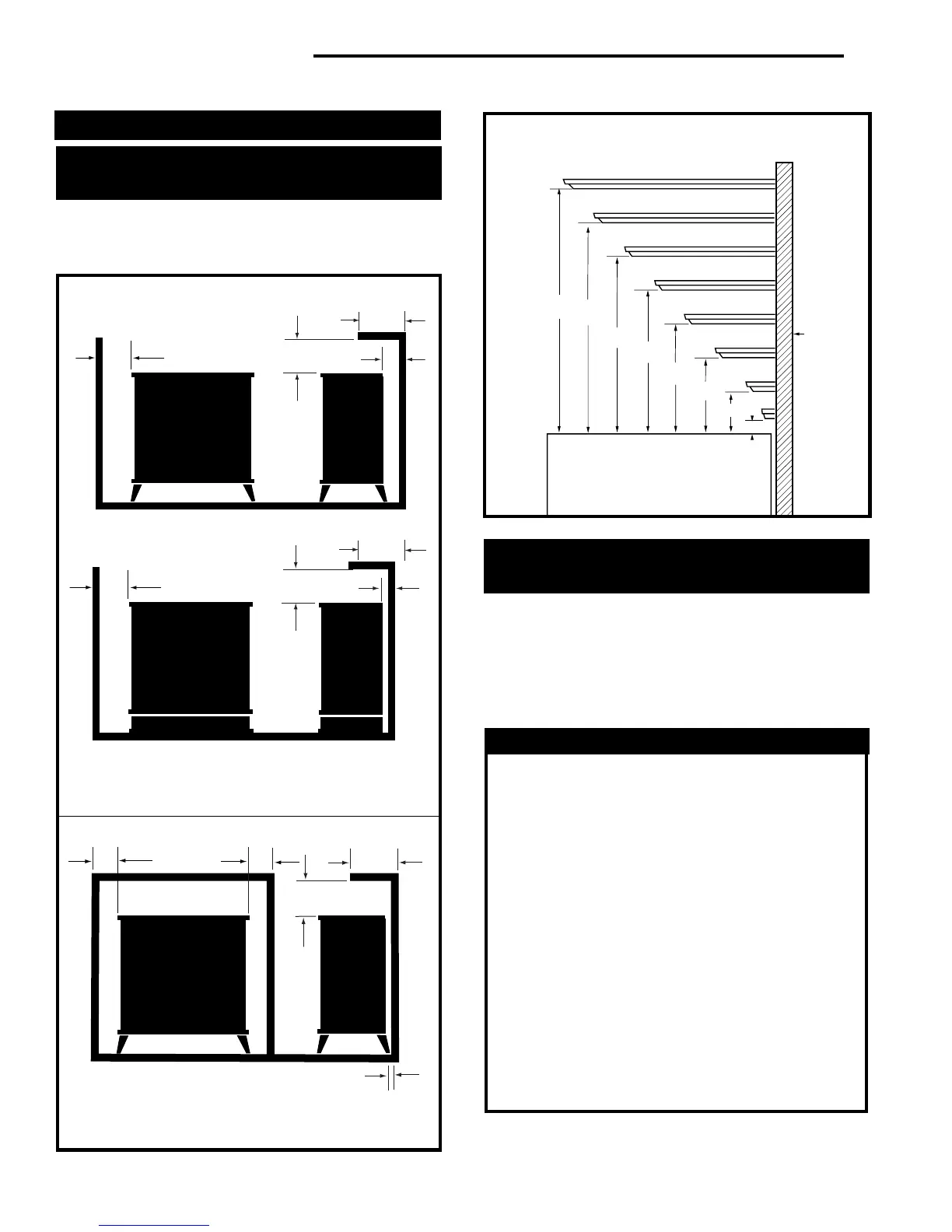

Clearance Requirements
Minimum Clearances to
Combustible Materials
Maintain clearance, (empty space), between combus-
tible materials and the heater as specified for the
appropriate firebox shell being installed.
B
A
C
D
Freestanding Stove
B
A
C
D
Hearthmount
B
A
C
D
B
Alcove Clearances
UVS27R/UVS27M Hearth
Requirements
The Freestanding Stove and Hearthmount Shell
must be installed on rigid flooring. If the appliance is
installed on any combustible surface other than
wood flooring, such as carpet or tile, a metal or
wood panel must be installed to extend the full
length and width of the unit.
WARNING
• DO NOT INSTALL THIS HEATER IN A BATH-
ROOM OR BEDROOM.
• INSTALLATION OF THIS HEATER MUST
CONFORM WITH LOCAL CODES OR, IN THE
ABSENCE OF LOCAL CODES, WITH THE
NATIONAL FUEL GAS CODE, ANSI Z223.1.
• THIS HEATER CREATES WARM AIR CUR-
RENTS. THESE CURRENTS MOVE HEAT TO
WALL SURFACES NEXT TO THE HEATER.
INSTALLING THE HEATER NEXT TO VINYL OR
CLOTH WALL COVERINGS OR OPERATING
THE HEATER WHERE IMPURITIES IN THE AIR
SUCH AS TOBACCO SMOKE EXIST, MAY
DISCOLOR WALLS.
• DO NOT USE A BLOWER INSERT, HEAT
EXCHANGER INSERT OR OTHER ACCESSORY
NOT APPROVED FOR USE WITH THIS HEATER.
A: Mantel/Trim* ......... 35”/2” C: Rear Wall ................. 0”
B: Side Wall/Trim* ..... 2” D: Max. Mantel Width .. 13”
* Trim is 1” thick maximum
A: Ceiling.................. 35” C: Rear Wall ................... 0”
B: Side Wall .............. 2” D: Max. Alcove Depth .... 13”
ST101
ST102
ST103
Mantel Clearances- Freestanding and
Hearthmount
Wall
Stove
5”
10”
15”
20”
25”
30”
35”
13”
11¹⁄₄”
9³⁄₈”
5³⁄₄”
7¹⁄₂””
4”
2¹⁄₄”
2”
1”
FP599a
