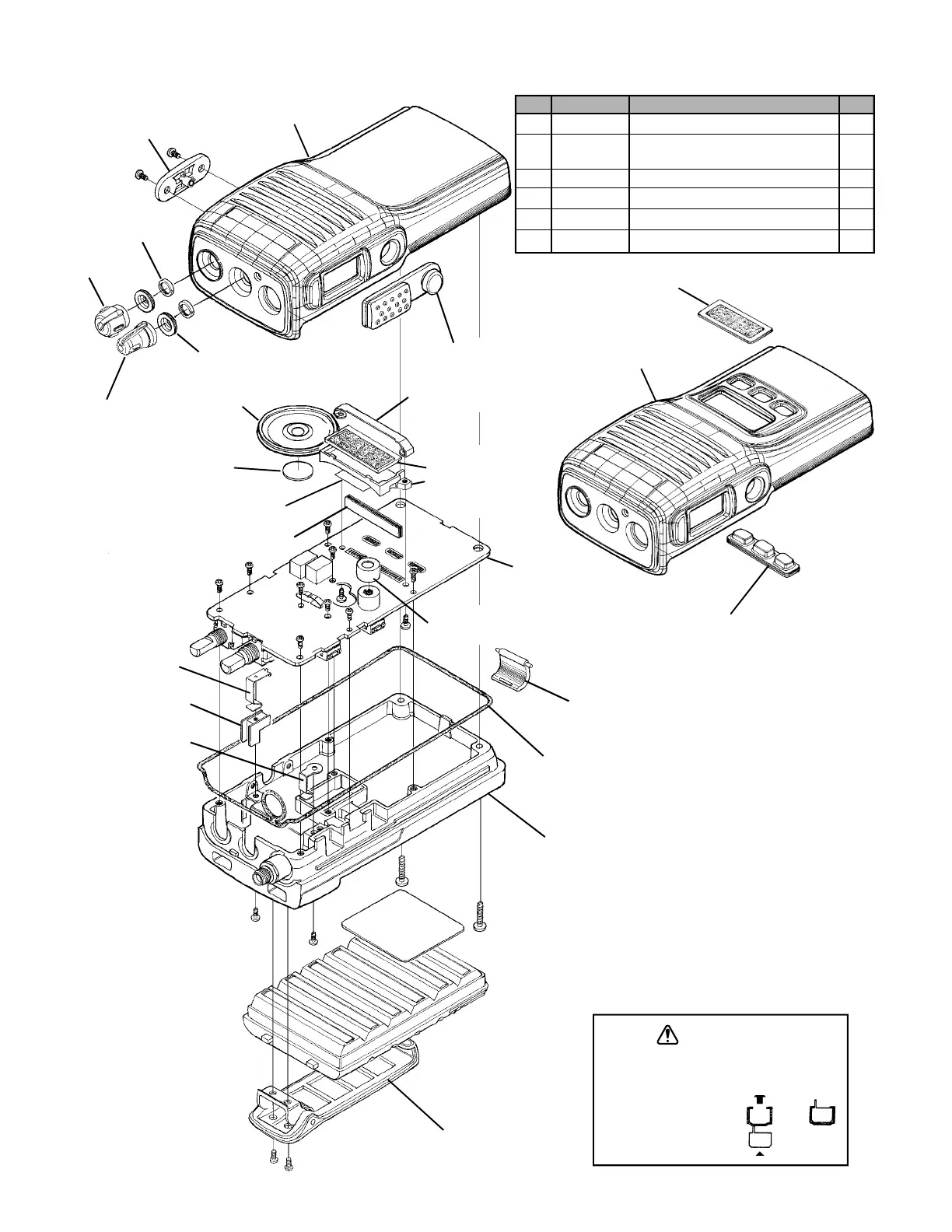

Exploded View & Miscellaneous Parts
RA029590B (Lot. 17~)
RA0295900 (Lot. 1~)
FRONT CASE ASSY (VX-180)
RA029600A (Lot. 17~)
RA0296000 (Lot. 1~)
FRONT CASE ASSY (VX-160)
RA0294800
INTER CONNECTOR (VX-180)
RA0294300 (Lot. 1~)
RA029430A (Lot. 4~)
RUBBER PACKING
RA0293900
RUBBER KNOB
RA0123500
LATCH NAIL B
RA0173500
CAP
MAIN Unit
RA029310D (Lot. 26~)
RA029310C (Lot. 20~)
RA029310B (Lot. 11~)
RA029310A (Lot. 3~)
RA0293100
REAR CASE ASSY
(w/SMA CONNECTOR, TERMINAL PLATE L,
PAN HEAD SCREW M2X3NI)
TERMINAL PLATE L
RA0107000
TERMINAL PLATE R
RA010340A
TERMINAL HOLDER
Å
Ã
Ã
À
À
À
À
À
À
À
Á
Á
Â
Â
R6147510
RING NUT (x 2 pcs)
RA0296100
VOLUME KNOB
RA029620A (Lot. 3~)
RA0296200 (Lot. 1~)
KNOB (CH)
RA0210900
WINDOW
G6090139
LCD (VX-180)
RA0110200
HOLDER RUBBER
À
REF. VXSTD P/N Description Qty.
À U44104002 TAPTITE SCREW M2X4NI 10
Á
U44104002
TAPTITE SCREW M2X4NI 2
(VX-180U)
 U20206007 BINDING HEAD SCREW M2.6X6B 2
à U24110002 TAPTITE SCREW M2X10NI 2
Ä U02206007 SEMS SCREW SM2.6X6B 2
Å U00103002 PAN HEAD SCREW M2X3NI 1
RA0210600
RUBBER PACKING (x 2 pcs)
RA0294200
PTT KNOB
RA0294400
LCD HOLDER (VX-180)
M4090151A (Lot. 10~)
M4090151 (Lot. 1~)
SPEAKER
À
À
Ä
Ä
CP7064001
BELT CLIP ASSY
CAUTION
The mic element must be desoldered
and removed from the PCB on order to re-
install its protective rubber cover.
Therefore, be
careful not to remove
this cover unless mic
element replacement
is necessary.
ÁÀ
RA0334900A
REFLECTOR SHEET (VX-180)
RA029450A (Lot. 10~)
RA0294500
LIGHT GUIDE (VX-180)
RA0309800 (Lot. 20~)
MYLAR SHEET (SP)
