VX-2500 OPERATING MANUAL Page 3
[
]
/
[
]
Buttons (Programmable Function Buttons)
Pressing either button changes the current channel (and displayed channel num-
ber or name). Holding a button for more than 1/2 second causes the function to
repeat.
Microphone Jack
Connect the microphone plug to this jack.
[A] Button (Programmable Function Button)
This button can be set up for special applications, such as High/Low power se-
lection, Monitor, Talk-Around, etc, as determined by your network requirements
and programmed by your VERTEX STANDARD dealer.
[]/[] Buttons (Programmable Function Buttons)
Pressing either button changes the current group (and displayed group number
or name). Holding a button for more than 1/2 second causes the function to
repeat.
[P1] - [P4] Buttons (Programmable Function Buttons)
These buttons can be set up for special applications, such as High/Low power
selection, Monitor, Talk-Around, etc, as determined by your network require-
ments and programmed by your VERTEX STANDARD dealer.

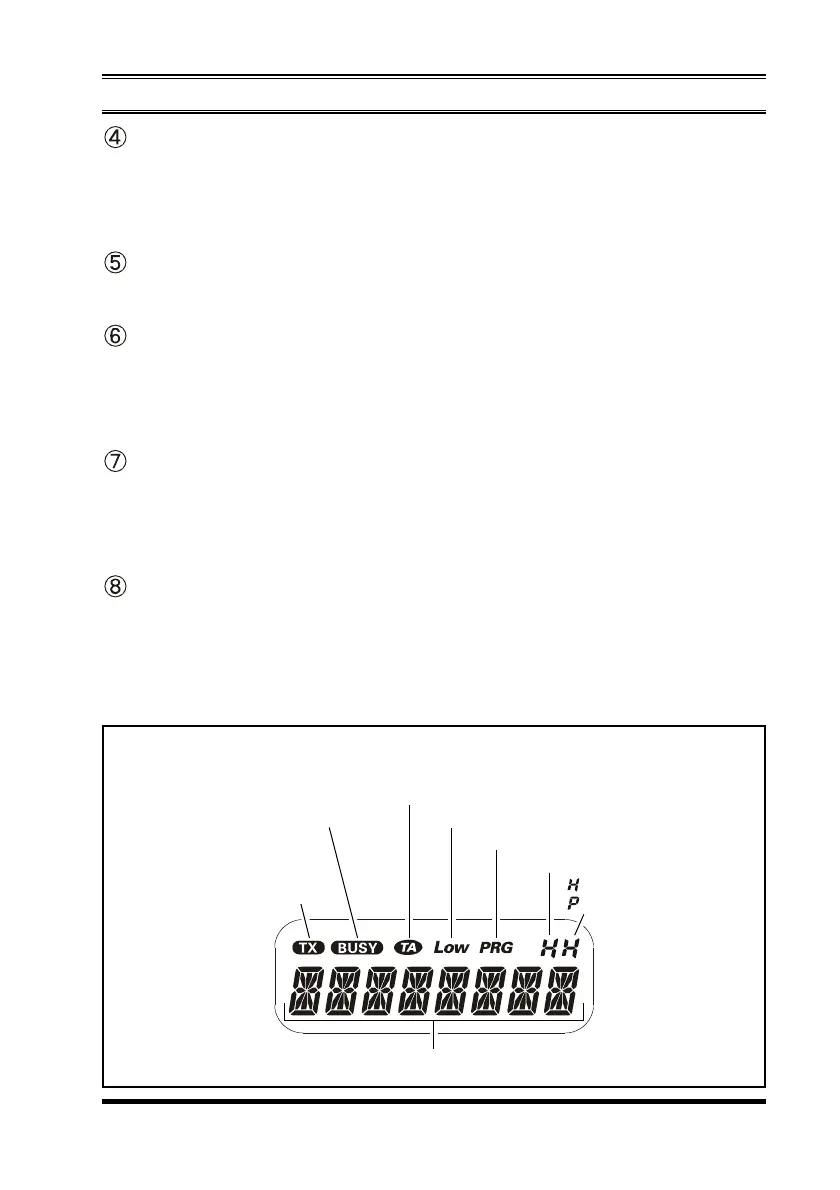

CONTROLS & CONNECTORS
Current Group on “Scan” List
LCD Icons & Indicators
8-Character Alpha-Numeric Display
Transmission in progress,
(follows Red BUSY/TX in-
dicator).
Busy Channel (follows
Green BUSY/TX indicator).
Talk-Around Enabled
Low TX Power
Horn Function Activate
:Home System/Group
:Priority Group
