VX-4200 SERIES OPERATING MANUAL 3

(
POWER
)
Button
Press and hold in this button for 2 seconds to toggle the transceiver’s power “on”
and “off.”

BUSY/TX Indicator
Indicates transceiver’s Transmit/Receive Status
Steady Red: Transmitting in progress
Steady Green: Signaling Off
Blinking Green: Busy Channel/Squelch Off

[

]
/
[

]
Buttons (Programmable Function Buttons)
Pressing either button changes the current channel (and displayed channel num-
ber or name). Holding in either button for more than 1.5 second causes the radio
to begin stepping (repeatedly) upward or downward through the channels.


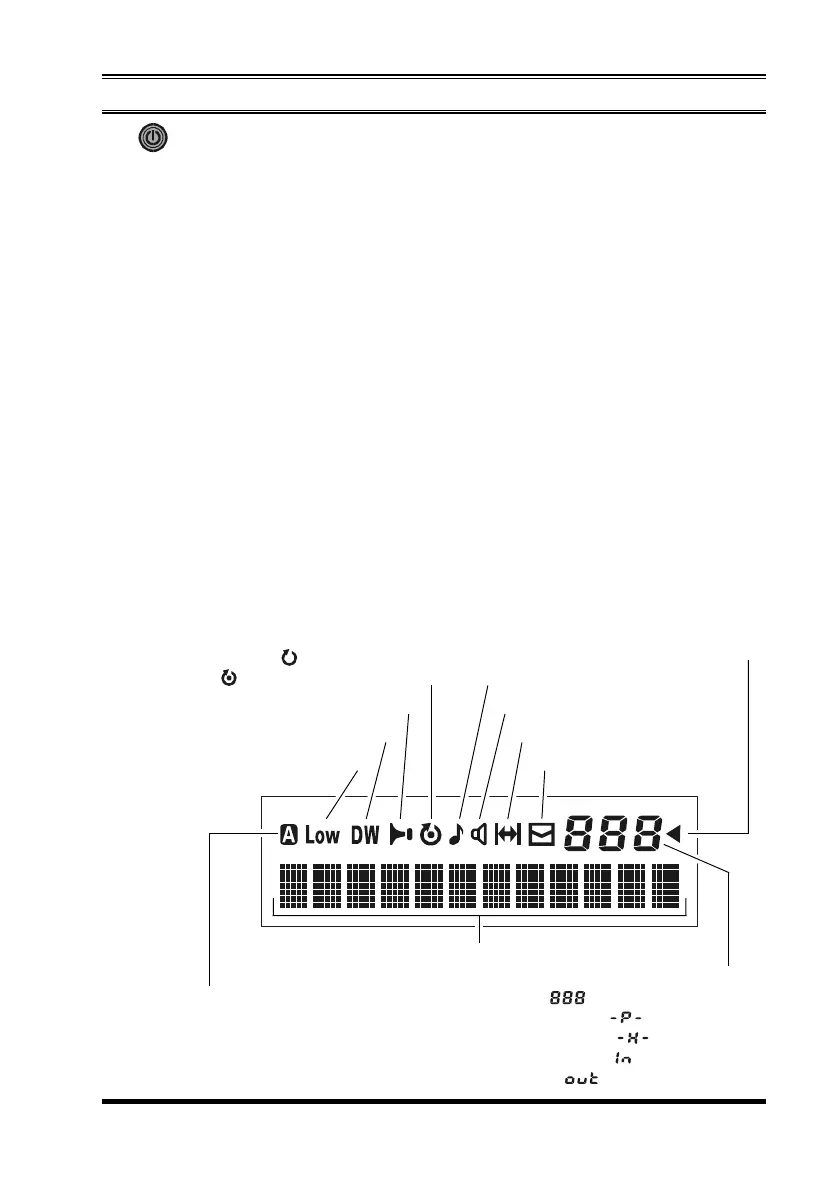

LCD (Liquid Crystal Display)
The display includes a 3-character numeric section showing Channel Group num-
ber or certain status indications (see below), a 12-character alpha-numeric sec-
tion showing Channel name tags/identity information and error messages, and
an upper icon row displaying feature status.
CONTROLS & CONNECTORS
“Call” indicator
“Dual Watch” is activated
Low Transmt Power Mode “ON”
“Horn Alert” is enabled
: “Scan” is activated
: “Priority Scan” is activated
“Talk-Around” is enabled
“Voice Message” received
Receiver Monitor
Sub-LCD
: Channel Group Number
: Priority Channel
: Home Channel
: ARTS “In Range”
: ARTS “Out of Range”
“Group Scan” is enabled
“AUX A” Port is activated
12 Character Alpha-numeric Display
