VX-P820/-P870 SERIES OPERATING MANUAL
9
BEFORE YOU BEGIN
Battery Charging
! Insert the DC plug from the PA-42 AC Adapter
into the DC jack on the bottom side of the VA C-
920 Desktop Rapid Charger, then plug the PA -
42 AC Adapter into the AC line outlet.
! Insert the battery pack into the VAC-920 Desk-
top Rapid Charger while aligning the slots of the
battery pack with the guides in the nest of the
VAC-920 ; refer to the illustration at the right for
details on proper positioning of the pack. If charg-
ing with the transceiver attached, turn the trans-
ceiver off, and the antenna jack should be at the
left side when viewing the charger from the front.
! If the battery pack is inserted correctly, the LED
indicator will glow red. A fully-discharged pack
will be charged completely in approximately 1.5
hours (FNB-V86LI, 2.5 hours: FNB-V87LI,
4.0 hours: FNB-V92LIIS).
! The LED indicator will blink red/green alternately
when charging is nearing completion.
! When charging is completed, the LED indicator
will change to green. Even if the charging is com-
pleted, the LED indicator will sometimes change
to red for trickle charging.
! Disconnect the pack from the VAC-9 20 Desktop
WARNING
" The FBA-34 was designed as a backup bat-
tery pack, and it can be used to power the
transceiver if you are in an area that does not
require the use of an intrinsically safe radio.
" The VX-P820/-P870 is only intrinsically safe
with the use of the FNB-V92LIIS battery
pack.
" Do not reverse-connect the battery terminals.
" Do not parallel-connect the battery terminals.
" Do not change batteries in hazardous loca-
tions.
" To reduce the risk of explosion, recharge the
batteries outside of hazardous locations.

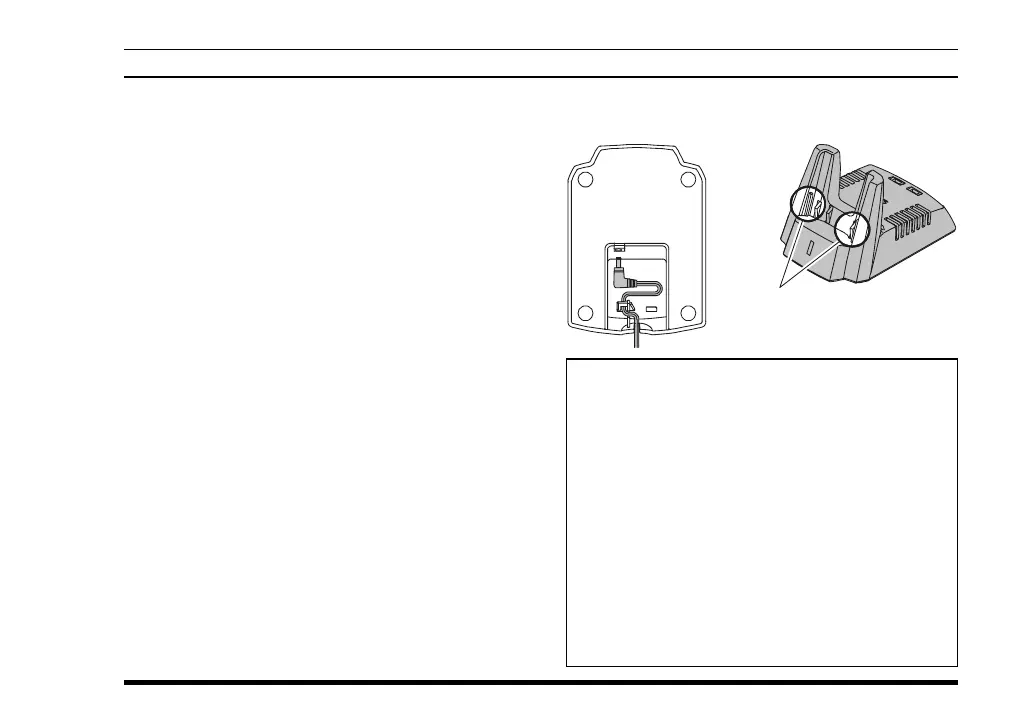

Align the slots of the battery pack
with the guides in the nest of the
VAC-920 Desktop Rapid Charger.
Rapid Charger, and unplug the PA-42 AC Adapter
from the AC line outlet.
