VX-P820/-P870 SERIES OPERATING MANUAL
7

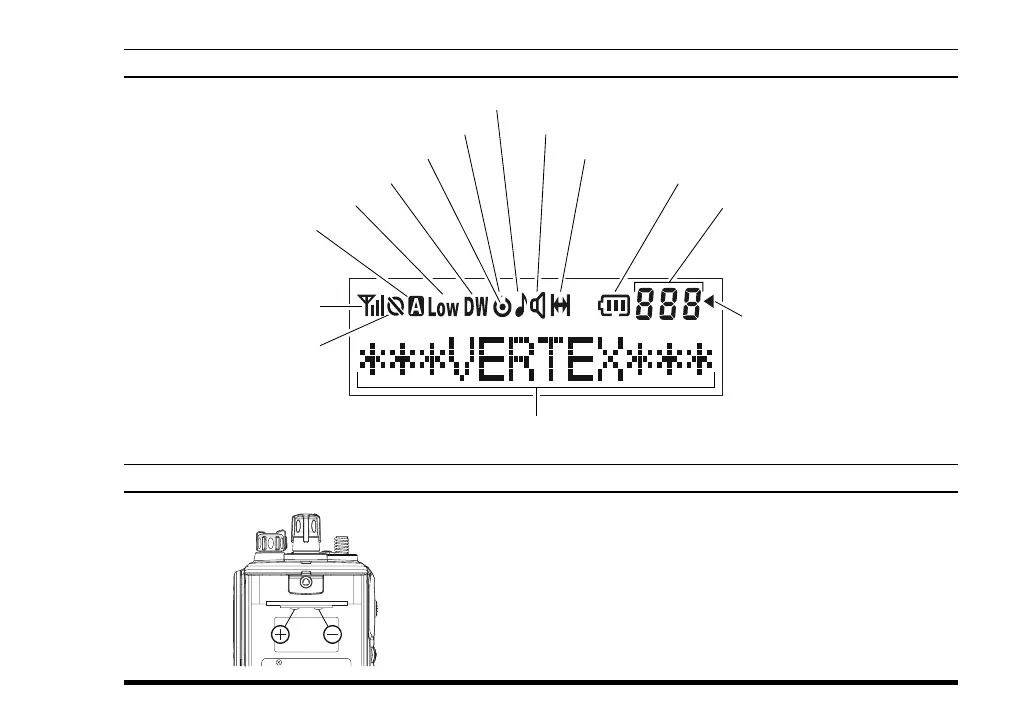

LCD ICONS & INDICATORS
(
16-KEY & 4-KEY VERSIONS
)
12 Character Alpha-numeric Display
SUB-LCD
888: Channel Group Number
-P-: Priority Channel
-H-: Home Channel
In: ARTS “In Range”
Out: ARTS “Out of Range”
RSSI Indicator (four steps)
Encryption is activated
“Analog Transmission”
is activated
Low Transmit Power Mode On
“DUAL WATCH” is activated
This channel on “SCAN” List
Priority Scan is activated
“CALL” Indicator
Receiver Monitor
“Talk-Around” is enabled
Battery Indicator
“Group Scan” is enabled
BATTERY TERMINALS
VHF Model UHF Model
Maximum Input Voltage:8.4 V DC8.4 V DC
Maximum Input Current:2.5 A2.5 A
Maximum Input Power:21 W21 W
Maximum Internal Capacitance:50.52 µF 51.32 µF
Maximum Internal Inductance:5.51 µH 5.46 µH
