VXR-7000 FM REPEATER OPERATING MANUAL12
Rev Bst: Reverse Burst.
When this parameter is set to “on,” the CTCSS tone
signal’s phase is inverted just before the repeater turns
to receive. This allows the portable/mobile station’s
CTCSS Decoder to begin switching off, thus reducing
the transition time required.
Press the [SPACE] bar to toggle “on” or “off.”
DCS Typ: DCS Format
This command is effective only when DCS is chosen for
squelch control.
A = “Normal” DCS
B = “Inverted” (complement) DCS
Press the [SPACE] bar to select the desired DCS Type.
DDec Type: DCS Decoder Type
This command selects the manner in which DCS is to be
decoded.
Fixed = Decodes only the type selected in above pa-
rameter (DCS Typ: Normal or Inverted).
Auto = Both types (Normal and Inverted) will be
decoded.
Press the [SPACE] bar to select the desired DCS Decoder
Mode.
Multi Tone: Enable/disable Multi Tone Operation
Press the [SPACE] bar to toggle Multi Tone Operation
between selections “yes” and “no.”

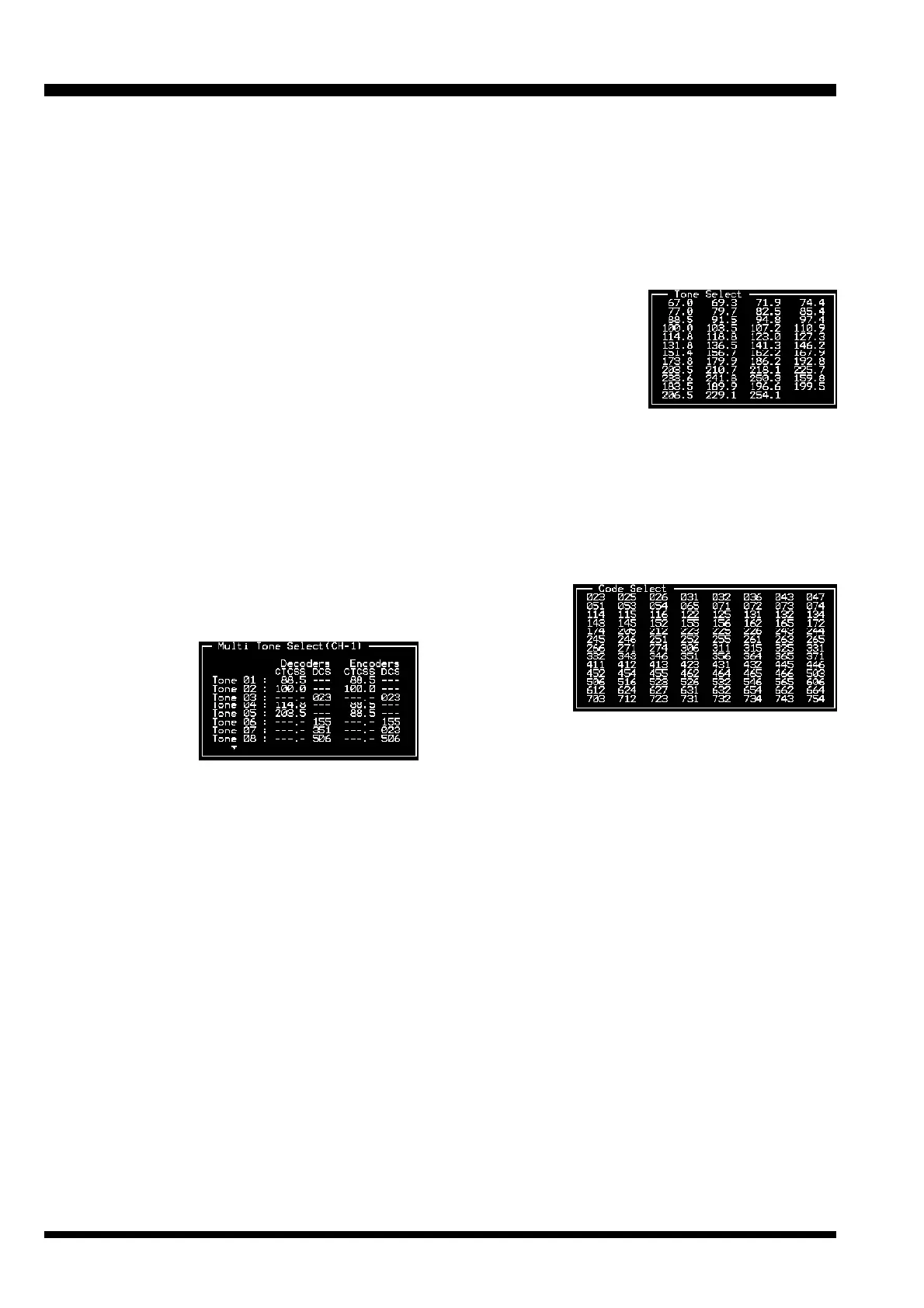

Press the [ENTER] key
to display the “MULTI
TONE SELECT” win-
dow, from which you
may select a CTCSS
tone or DCS code;
move the cursol to the appropriate field you using the
[ARROW] key, then press the [ENTER] key to open the “TONE
SELECT” or “CODE SELECT” window. Now select the de-
sired CTCSS tone or DCS code using the [ARROW] key,
then press the [ENTER] key again to accept the selected
tone or code, or press the [ESC] key to cancel. You may
set as many as 16 CTCSS tones and/or DCS codes.
Note that, if you do not yet program a CTCSS tone or
DCS code in the “MULTI TONE SELECT” window (when
the “MULTI TONE SELECT” window data is not pro-
grammed), press the [SPACE] bar to display the “MULTI
TONE SELECT” window directly.
CWID ANI/ENI: Select the Identifier mode
Press the [SPACE] bar to toggle the selections “CW ID,”
“ANI/ENI,” or “Off.” To select this feature to the “CW
ID” or “ANI/ENI,” the “CW ID” parameter must be en-
abled via the dealer programming.
CE27 Programming Software Instruction
Action Mode: Select the repeater operation mode
Press the [SPACE] bar to toggle between “Duplex” op-
eration or “Simplex” operation.
Tx Freq.: Edit Transmit Frequency
Use the [0] - [9] keys to enter the desired channel fre-
quency directly, and press the [ENTER] key.
CTCSS Encoders: Toggle CTCSS Encoder ON/OFF, sets
CTCSS Frequency
Press the [SPACE] bar to
toggle the CTCSS Encoder
“on” or “off,” or press the
[ENTER] key to display the
“TONE SELECT” window,
from which you may select
a CTCSS frequency using the [ARROW] key; press [EN-
TER] again to accept the selected tone, or press the [ESC]
key to cancel.
DCS Encoders: Toggle DCS Encoder ON/OFF, sets DCS
Code #
Press the [SPACE] bar to toggle the DCS Encoder “on” or
“off,” or press the [ENTER] key to display the “CODE SE-
LECT” window, from which you may select a DCS code
using the [AR-
ROW] key; press
[ENTER] again
to accept the
selected code,
or press the
[ESC] key to
cancel.
Base TOT: Enable/disable the Time-Out Timer while in the
“BASE” station mode
Press the [SPACE] bar to toggle the TOT feature selects
“yes” and “no.”
The TOT time is determined via dealer programming.
Base Guard: Enable/disable the Base Guard Feature
When this parameter is set to “yes,” the transmitter will
be inhibited for a few seconds before the repeater (in
the “BASE” station mode) turns to receive.
The inhibit time is determined via dealer programming.
LOUT: Select the Lock Out Feature’s mode
Press the [SPACE] bar to toggle the Lock Out Feature be-
tween “BCLO,” “BTLO,” or “off,” then press the [En-
ter] key to accept the setting. “BCLO” inhibits transmit-
ting while there is carrier present. “BTLO” inhibits trans-
mitting while there is carrier present unless there also is
a valid tone present.
