142

PS Unit

VXR-7000 UHF Service Manual

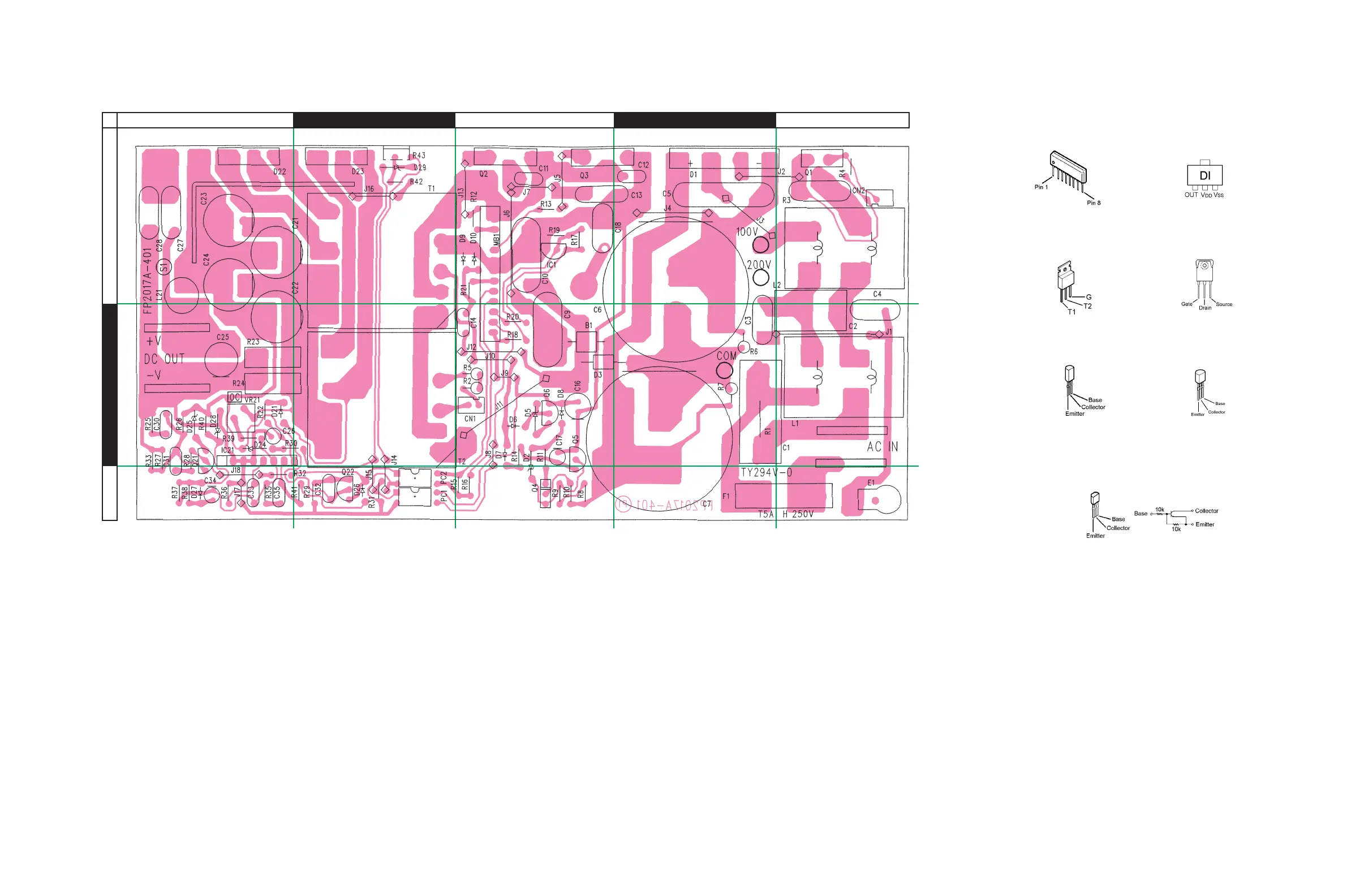

Parts Layout (Side A)

S-80745AN (DI)

(IC0001)

2SC4166Q

(Q0004)

2SC3246

(Q0006, 0023)

DTC114ESA

(Q0005)

2PA1015

(Q0021)

2PC1815

(Q0022)

NJM2904L

(IC0021)

BT138D-600

(Q0001)

2SK1017

(Q0002, 0003)
