92 VXR-7000 UHF Service Manual
1SS184 (B3)
(D4025, 4026)
HZM7C (24)
(D4008)
DA204K (K)
(D4001, 4002, 4003,
4004, 4005, 4017,
4018, 4021, 4024,
4040)
AN8005M
(Q4004)
TC74HC74AF
(Q4022)
2SC4116GR (LG)
(Q4013)
DTC144EK (26)
(Q4003)
FMG2 (G2)
(Q4006, 4009,
4010, 4011)
LC73881M
(Q4017)
DTC323TK (H02)
(Q4026, 4037)
CNTL Unit
HZM7.5NB2 (Lot. 41~)
(D4008)

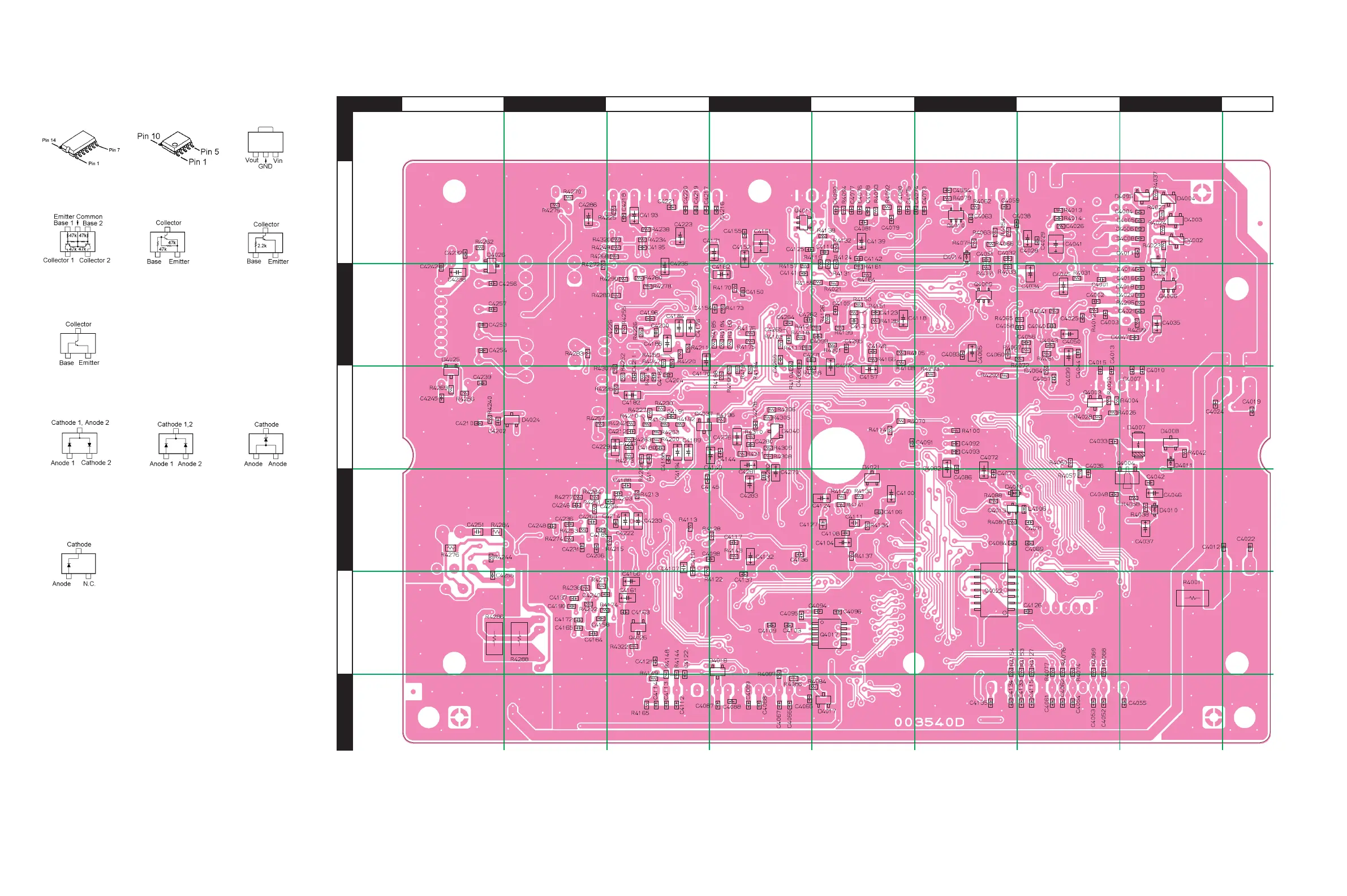

Parts Layout (Side B)
2
1
4
3
6
5
a b c d e f g h
i
