EVX-534/-539 VHF Service Manual 5

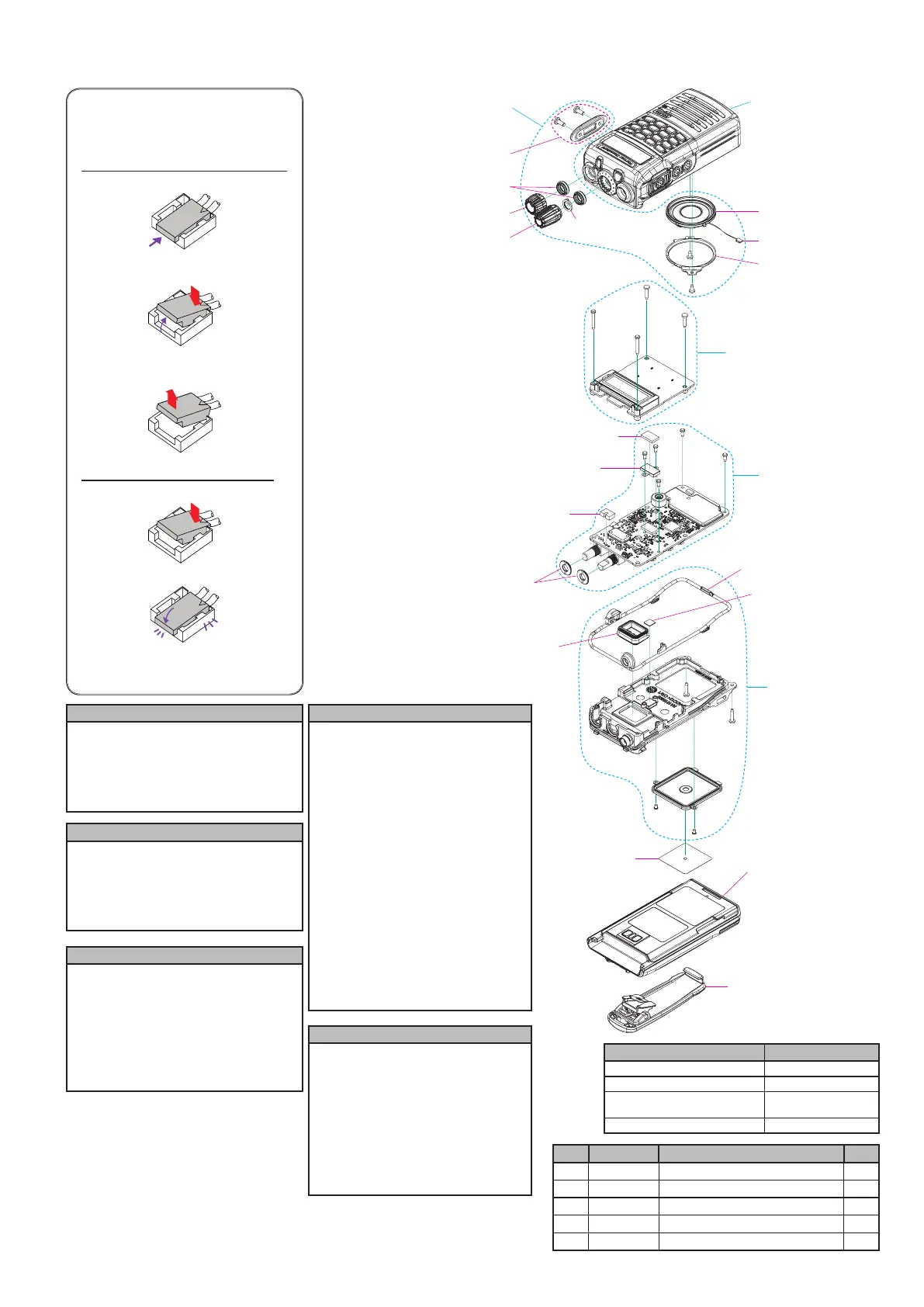

EVX-539 Exploded View & Miscellaneous Parts
Non-designated parts are available only as part of a designated assembly.
Disconnect the Speaker Connector
from the MAIN Unit when remove
the Front Case of the transceiver.
To DisconnecTing The speaker connecTor:
1. Hook the lever.
2. Pull up and friction lock is re-
leased.
3. Positive lock is released and re-
moval completes.
To connecTing The speaker connecTor:
1. Insert the cable side rst.
2. Press down at the lever side.
Note: Horizontal mating could dam-
age the connector.
EVX-539 FRONT CASE ASSY
(
componenT
)
FRONT CASE
(
EVX-539
)
MODEL LABEL
(
EVX-539
)
NAME PLATE
ESCUTCHEON
(
DOT
)
DOUBLE FACE TAPE
(
ECS
)
RUBBER
(
TOP SEL
)
SUPPORT
(
TOP SEL
)
LIGHT GUIDE
SP NET
RUBBER
(
PTT
)
FRAME
(
PTT
)
SHEET
(
PTT
)
RUBBER
(
SIDE
)
KEY PAD
(
16KEY
)
WINDOW
SPONGE RUBBER
(
LCD
)
SPONGE RUBBER
(
CASE
)
LATCH NAIL
LATCH PLATE
COIL SPRING
(
2.2X12X0.25
) (
2 pcs
)
SHEET
(
M-TEX 9X4.5
)
O RING
(
3.0X0.9
)
PAN HEAD SCREW
(
M2X3BSUS#2
)
FRONT CASE SUB ASSY
(
componenT
)
KNOB
(
VOL
)
KNOB
(
FREQ
)
WASHER
BUSH
(
2 pcs
)
CAP
(
MIC/SP
)
SPEAKER
WIRE ASSY
SPEAKER MOUNT PLATE
O RING
(
CAP
)
O RING
(
0.8X2.2
) (
2 pcs
)
BINDING HEAD SCREW
(
M2.6X6B
) (
2 pcs
)
BINDING HEAD TAPTITE-B
(
M2X5
) (
2 pcs
)
DISPLAY UNIT
(
componenT
)
Printed Circuit Board with Components
LCD MODULE
SPONGE RUBBER
(
35X3
)
TAPE
(
LCD
) (
2 pcs
)
BIND HEAD TAPTITE-B
(
2X10
) (
2 pcs
)
PAN HEAD TAPTITE-B
(
M2X15
) (
2 pcs
)
PAN HEAD TAPTITE-B
(
M1.7X4 NI #1
) (
4 pcs
)
MAIN UNIT
(
componenT
)
Printed Circuit Board with Components
SHIELD CASE COVER
(
FET
)
HOLDER RUBBER
(
MIC
)
PORON SHEET
(
16X10
)
SPONGE RUBBER
(
LIGHT GUIDE
)
NUT
(
C065
) (
2 pcs
)
PAN HEAD TAPTITE-B
(
M2X5
) (
5 pcs
)
j
M4090204
SPEAKER
T9207535A
WIRE ASSY
S5000322
SP MOUNT PLATE
RA125110B
KNOB
(
FREQ
)
RA125100B
KNOB
(
VOL
)
RA1396900
WASHER
RA125090A
(x 2 pcs)
BUSH
CB6642000
MIC/SP CAP ASSY
RA1448500
RUBBER PACKING
(
CHASSIS
)
RA090590A
(x 2 pcs)
NUT
(
C065
)
RA1458000
RUBBER BOOTS
CB6950000
MAIN UNIT ASSY
RA037690B
SHEET
(
6X6
)
BELT CLIP
CLIP-20
(
AAH12X101
)
m
l
k
CB6641000
FRONT CASE SUB ASSY
CB6643000
CHASSIS ASSY
CB6929000
EVX-539 FRONT CASE ASSY
j
k
n
l
n
l
m
m
m
m
l
CB6927000
DISPLAY UNIT ASSY
RA1534700
PORON SHEET
(
16X10
)
Li-Ion BATTERY PACK
FNB-V133LI-UNI
(
AAJ67X001
)
or FNB-V134LI-UNI
(
AAJ68X001
)
RA1580800
SPONGE RUBBER
(
LIGHT GUIDE
)
RA125020A
SHIELD CASE COVER
(
FET
)
RA127840A
CAUTION LABEL
DESCRIPTION VXSTD P/N
Battery Pack FNB-V133LI-UNI AAJ67X001
Desktop Charger CD-58 AAJ72X001
AC Adapter PA-55C or PA-55U
PA-55C: AAJ71X003
PA-55U: AAJ71X004
Belt Clip CLIP-20 AAH12X101
REF. VXSTD P/N DESCRIPTION QTY.
j
U07225001 PAN HEAD SCREW M2X2.5
(
3
)
2
k
U24105001 BIND HEAD TAPTITE-B M2X5
(
3
)
2
l
U24110001 BIND HEAD TAPTITE-B 2X10
(
3
)
4
m
U44105001 PAN HEAD TAPTITE-B M2X5 5
n
U44115001 PAN HEAD TAPTITE-B M2X15
(
3
)
2
CHASSIS ASSY
(
componenT
)
CHASSIS
CONNECTOR
(
SMAP-BT4WP
)
RUBBER PACKING
(
CHASSIS
)
RUBBER BOOTS
SHEET
(
6X6
)
LID
(
OPTION
)
PACKING PAD
(
OPTION
)
SHEET
(
MICROTEX C010
)
PAN HEAD SCREW
(
M2X2.5
) (
2 pcs
)
BIND HEAD TAPTITE-B
(
2X10
) (
2 pcs
)
