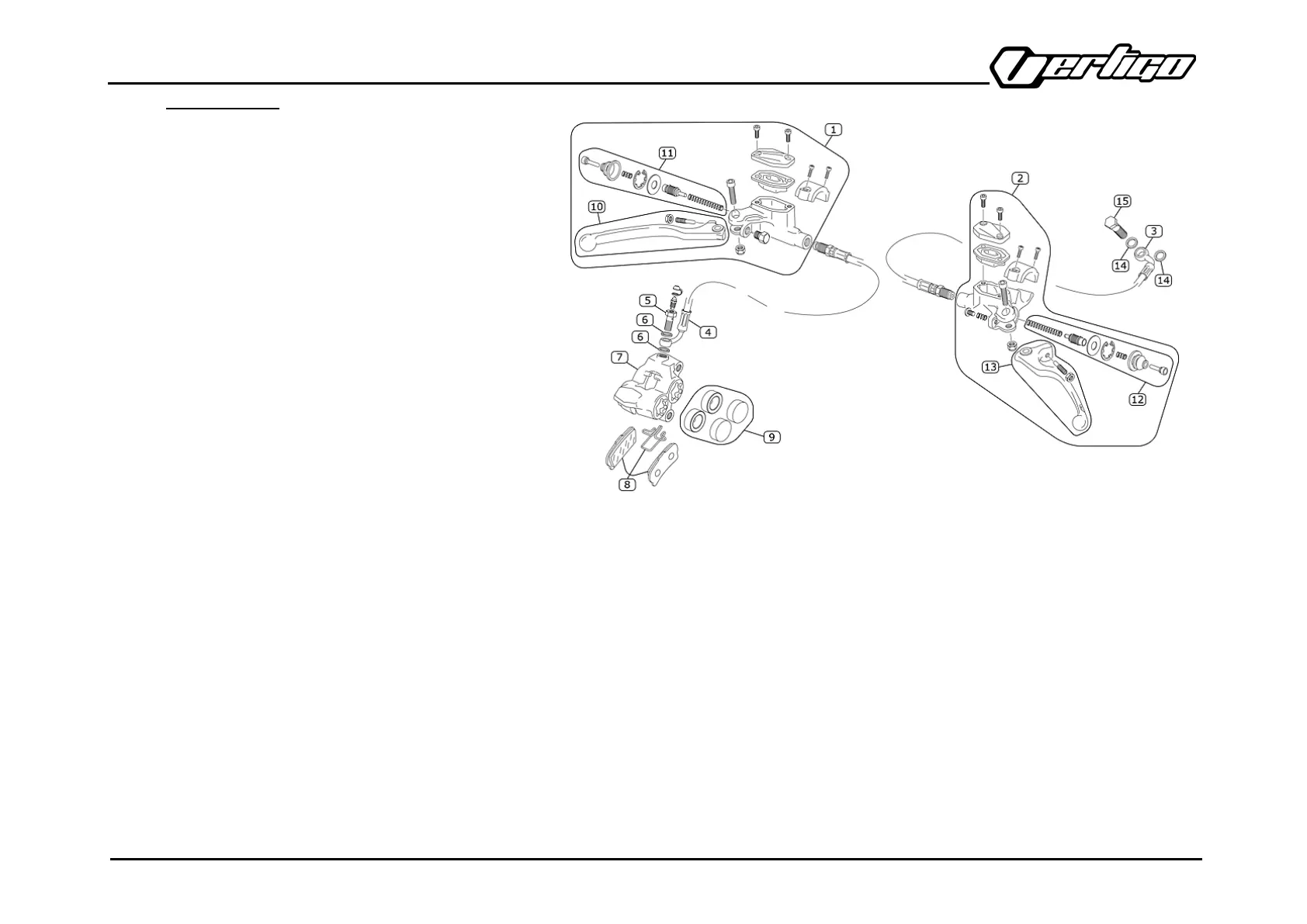

3.2.2 Exploded view
Nº
ICE HELL
TITANIUM
CAMO
DESCRIPTION
1
V-0365
V-0365
V-0365
FRONT BRAKE PUMP SET
2
V-0354
V-0354
V-0354
CLUTCH PUMP SET
3
V-0355
V-0355
V-0355
CLUTCH HOSE
4
V-0364
V-0364
V-0364
FRONT BRAKE HOSE
5
V-0723
V-0723
V-0723
RACORD FRONT BRAKE
6
V-0724
V-0724
V-0724
BANJO WASHER
7
V-0363
V-0363
V-0363
FRONT BRAKE CALIPER
8
V-0362
V-0362
V-0362
FRONT BRAKE PADS
9
V-0968
V-0968
V-0968
FRONT CALIPER PISTON REPAIR KIT
10
V-0366
V-0366
V-0366
FRONT BRAKE LEVER
11
V-0367
V-0367
V-0367
FRONT BRAKE PUMP REPAIR KIT
12
V-0370
V-0370
V-0370
CLUTCH PUMP REPAIR KIT
13
V-0722
V-0722
V-0722
CLUTCH LEVER
14
V-0611
V-0611
V-0611
CLUTCH RACORD ALUMINIUM WASHER
15
V-0610
V-0610
V-0610
RACORD M10 CLUTCH
