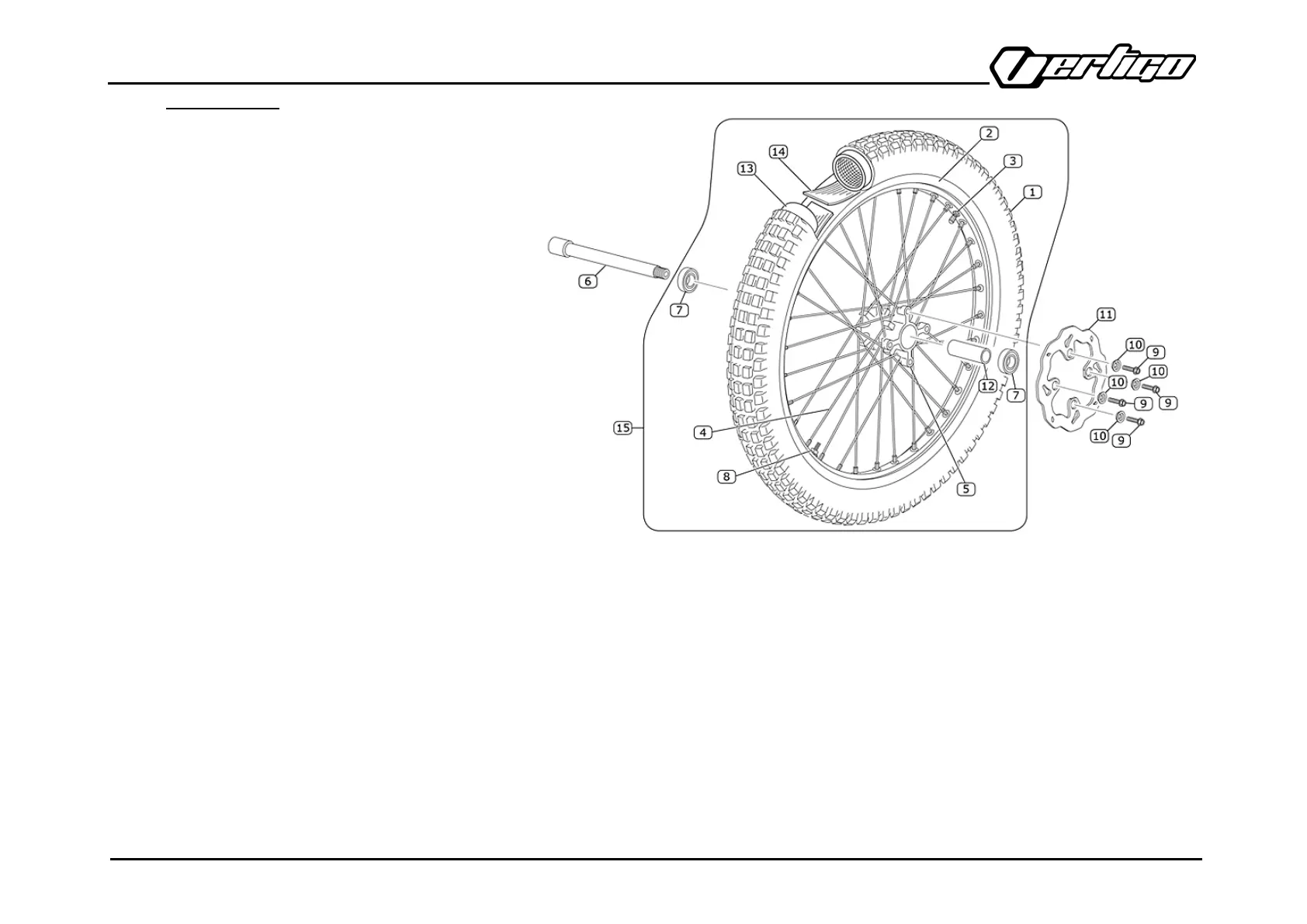

3.3.2 Exploded view
Nº
ICE HELL
TITANIUM
CAMO
DESCRIPTION
1
V-0758
V-0276
V-0758
FRONT TYRE MICHELIN TRIAL COMP. X11
2
V-0371
V-0371
V-0371
FRONT RIM 1.60 X 21
3
V-0385
V-0385
V-0385
TUBELESS VALVE
4
V-0372
V-0372
V-0372
FRONT WHEEL SPOKE M3.5 X 0.6 L255 mm
5
V-0374
V-0374
V-0374
FRONT HUB
6
V-0334
V-0334
V-0334
FRONT WHEEL SHAFT
7
V-0510
V-0510
V-0510
BEARING HUB 6004 2 RS
8
V-0375
V-0375
V-0375
FRONT WHEEL GRIP
9
V-0437
V-0437
V-0437
SPECIAL SCREW M6x20 BRAKE DISC SPACER
10
V-0325
V-0325
V-0325
FLOATING BRAKE DISC SLEEVE
11
V-0348
V-0348
V-0348
FRONT BRAKE DISC
12
V-1003
V-1003
V-1003
FRONT HUB INNER SLEEVE
13
V-0278
V-0278
V-0278
FRONT INNER TUBE 21MD VALVE TR4
14
V-0747
V-0747
V-0747
FRONT INNERTUBE PROTECTOR
15
V-0357
V-1178
V-0357
FRONT WHEEL SET
