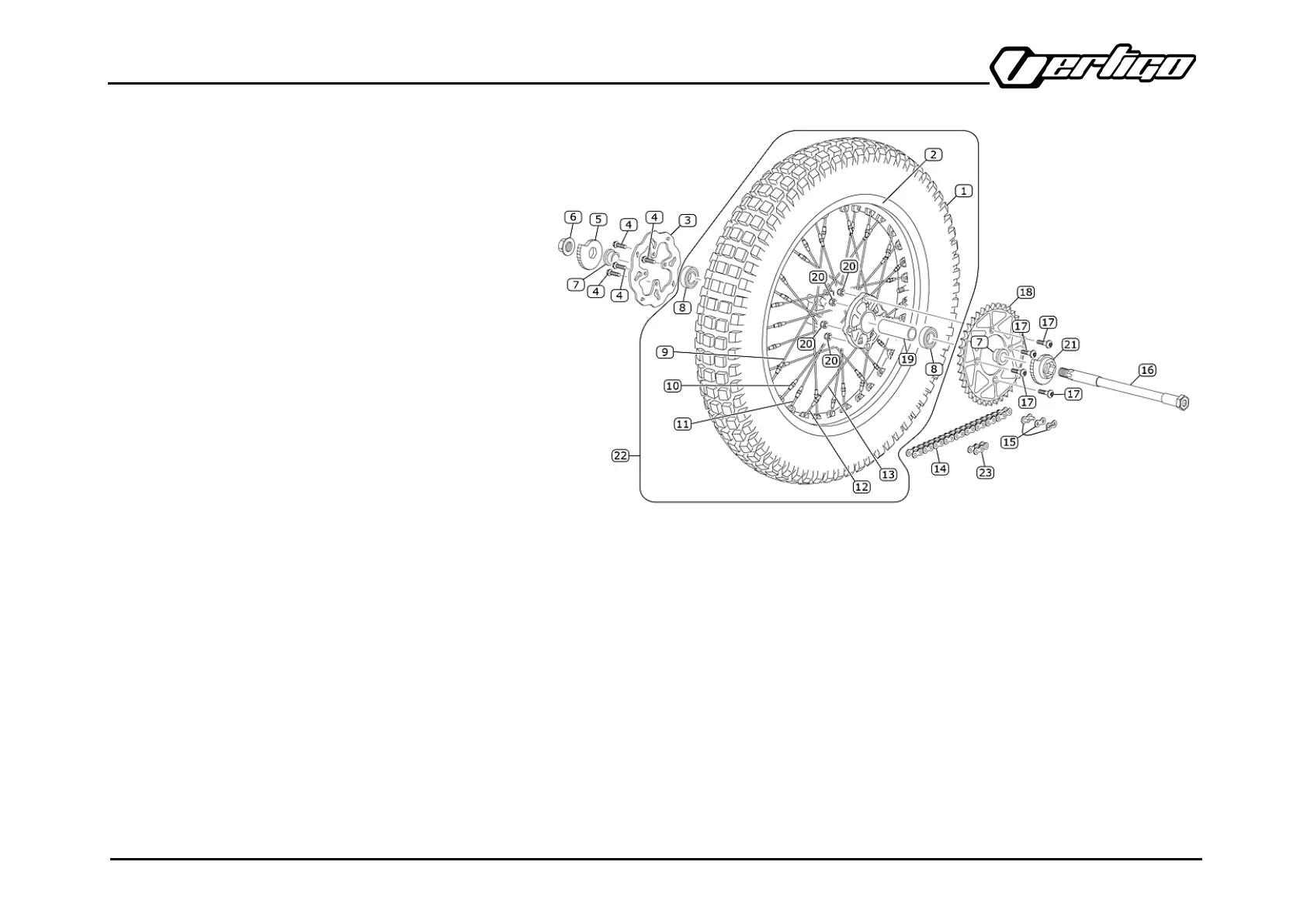

3.3.2.1 Ice Hell and Titanium rear wheel exploded view
Nº
ICE HELL
TITANIUM
DESCRIPTION
1
V-0641
V-0277
MICHELIN REAR TIRE TRIAL COMP.X11
2
V-0626
V-0626
REAR RIM MACHINING 2.15 X 18 TUBELESS
3
V-0349
V-0349
REAR BRAKE DISC
4
V-0682
V-0682
SCREW M6 X 20 mm
5
V-0331
V-0331
ICE HELL RIGHT ECCENTRIC WASHER
6
V-0552
V-0552
REAR WHEEL NUT
7
V-0549
V-0549
REAR WHEEL SLEEVE
8
V-0510
V-0510
BEARING HUB 6004 2 RS
9
V-0381
V-0381
REAR WHEEL SPOKE M4 X 0.7 L165 mm
10
V-0383
V-0383
REAR WHEEL SPOKE NUT M4
11
V-0382
V-0382
REAR WHEEL SPOKE M4 X 0.7 LG 34.5mm
12
V-0380
V-0380
REAR WHEEL SPOKE CROWN SIDE M4X0.7 L36 mm
13
V-0379
V-0379
REAR WHEEL SPOKE CROWN SIDE M4X0.7 L175 mm
14
V-1031
V-1031
REGINA CHAIN 103
15
V-0674
V-0674
CHAIN LINK
16
V-0333
V-0333
ICE HELL REAR WHEEL SHAFT
17
V-0681
V-0681
SPECIAL CROWN SCRE M8 X 25 mm
18
V-1098
V-1175
ICE HELL Z42 SPROCKET
19
V-1004
V-1004
REAR HUB INNER SLEEVE
20
V-0470
V-0470
NUT M8
21
V-0332
V-0332
ICE HELL LEFT ECCENTRIC WASHER
22
V-1100
V-1176
ICE HELL 2017 REAR WHEEL SET
23
V-1032
V-1032
HALF CHAIN LINK
