SERVICE MANUAL
-VERTIGO COMBAT-V07-ENG.DOCX - FRAME SECTION
Vertigo.
Carrer Argenteria 8-10, Pol. Ind. Riera de Caldes. 08184 Palau-Solità i Plegamans (Barcelona - Spain) T + 34 931 70 16 55.

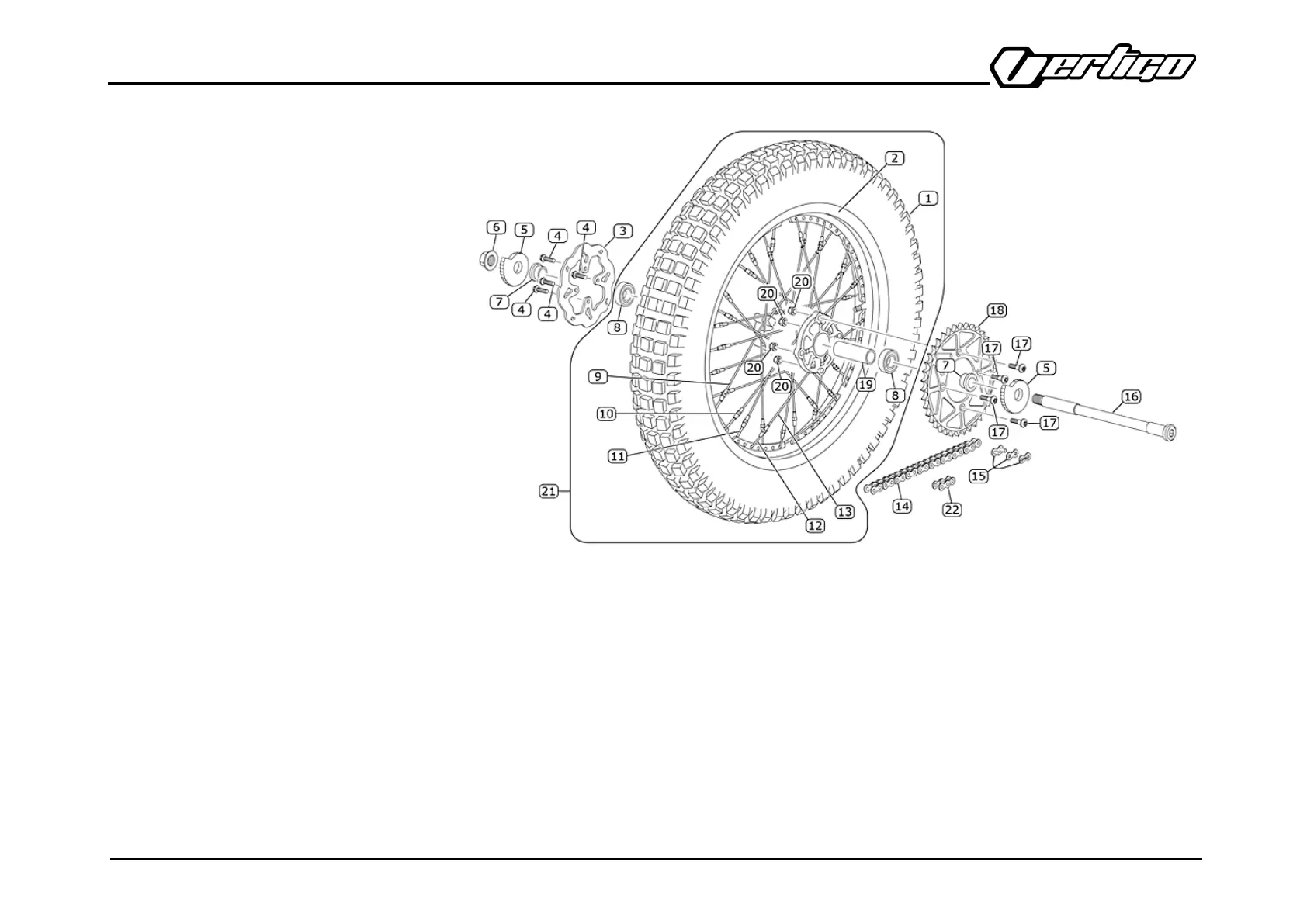

3.3.2.2 Camo rear wheel exploded view
Nº
CAMO
DESCRIPTION
1
V-0641
REAR TYRE MICHELIN TRIAL COMP.X11
2
V-0378
REAR RIM 2.15 X 18 TUBELESS
3
V-0349
REAR BRAKE DISC
4
V-0682
SPECIAL SCREW M6X20 BRAKE DISC
5
V-0606
CAMO REAR WHEEL ECCENTRIC WASHER
6
V-0552
REAR WHEEL NUT
7
V-0549
REAR WHEEL SLEEVE
8
V-0510
BEARING HUB 6004 2 RS
9
V-0381
REAR WHEEL SPOKE M4 X 0.7 L165 mm
10
V-0383
REAR WHEEL SPOKE NUT M4
11
V-0382
REAR WHEEL SPOKE M4 X 0.7 LG 34.5mm
12
V-0380
REAR WHEEL SPOKE CROWN SIDE M4X0.7 L36 mm
13
V-0379
REAR WHEEL SPOKE CROWN SIDE M4X0.7 L175 mm
14
V-0622
CHAIN REGINA - 100
15
V-0674
CHAIN LINK
16
V-0605
REAR WHEEL SHAFT
17
V-0681
SPECIAL CROWN SCREW M8 X 25 mm
18
V-0620
CROWN Z38
19
V-1004
REAR HUB INNER SLEEVE
20
V-0470
NUT M8 DIN 985 AUTO LOCK
21
V-0358
REAR WHEEL SET
22
V-1032
HALF CHAIN LINK
