4 Chapter 2 Installation
VERTIV
TM
GEIST
TM
Rack PDU User Manual

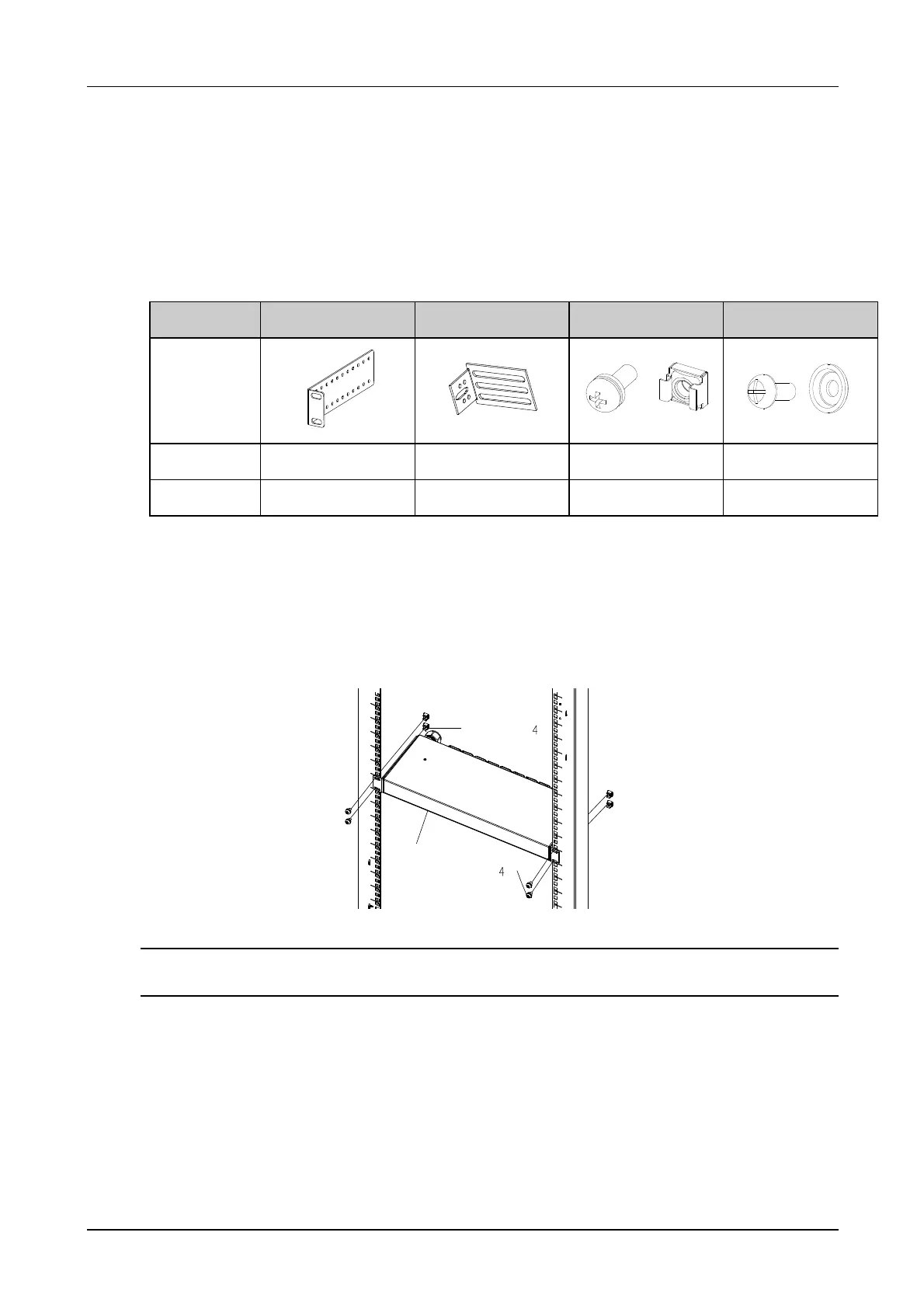

2.3 Installation Instruction
2.3.1 Installation Accessories
Table 2-1 lists the accessories to be used during installation.
Table 2-1 Installation Accessories
1U Mounting bracket
(2pcs)
0U Mounting bracket
(2pcs)
M6 floating nut and
M6 × 16 screw (4 sets)
Toolless mounting
button
Horizontal
installation
√
√
Vertical
installation
√
√
2.3.2 Installation Procedures
Tw o installation modes are available for the PDU: horizontal installation and vertical installation.
Horizontal installation
1U model is suitable for Horizontal Installation.
Fix the PDU onto the 19” rails w ith M6 floating nuts and M6 ×16 screw s, as shown in Figure2-1.
Figure 2-1 PDU installation
 Note
For 1U horizontal mounting PDU, the brackets can be installed on the front or the rear.
Vertical installation
0U model is suitable for vertical installation. Vertical installation is divided into tw o types: Tool-less and bracket
mounting.
1. Tool-less installation
1) Insert the tw o mounting buttons (installed before delivery) on the rear of the PDU into the suitable installation
hole on the cable organizer of the cabinet.
M6 Screw（ ）
PDU
Floating Nut（ ）
