6 Chapter 2 Installation
VERTIV
TM
GEIST
TM
Rack PDU User Manual

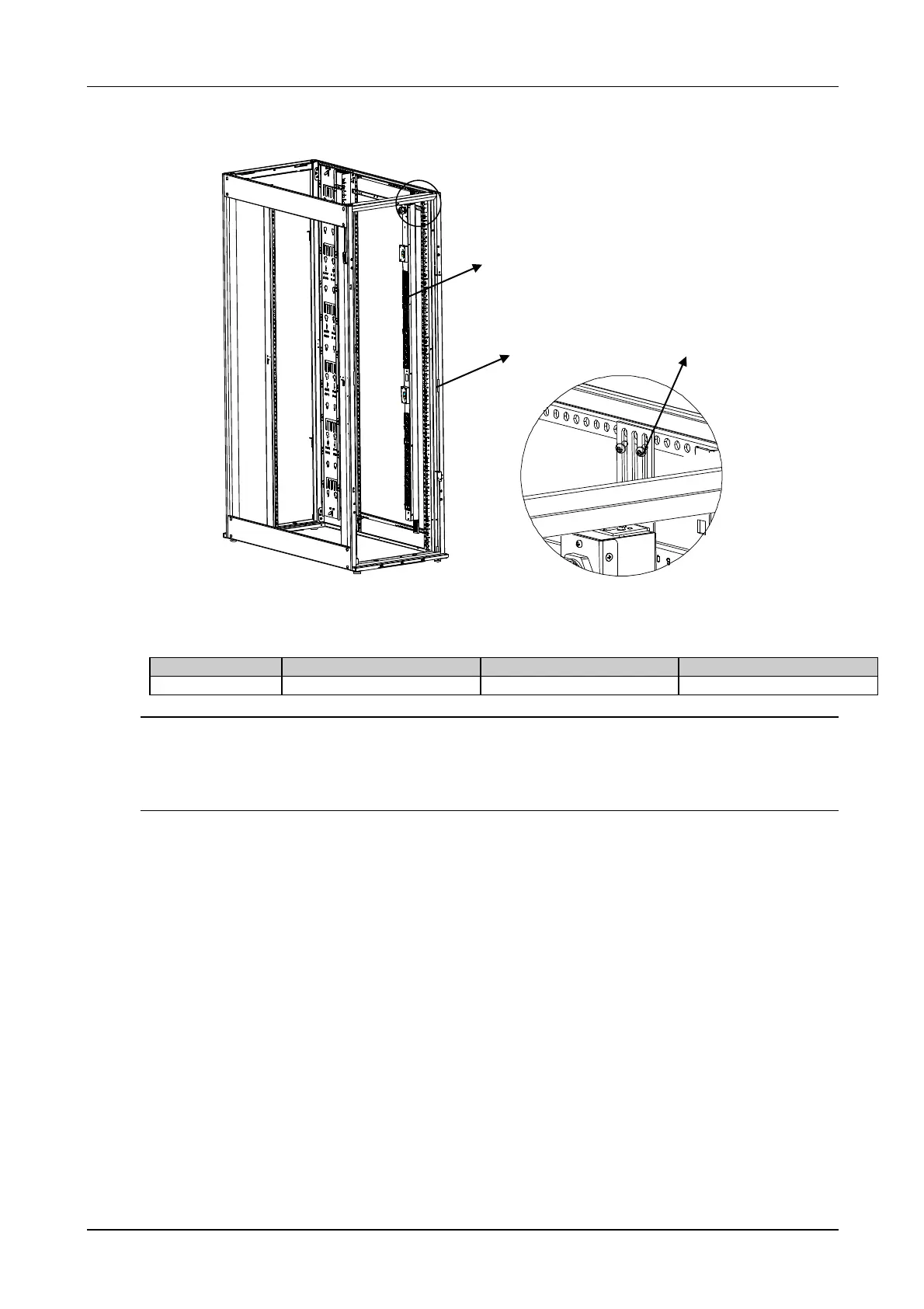

Figure 2-4 Installing PDU (VE series cabinet)
Table 2-2 Details of Installation with Bolt
Item
1
2
3
Description
PDU
Cabinet
M6 screw and Nut
 Note
1. The installation with bolt is only suitable for the 0U PDU with the length is 1683mm
2. During PDU installation, the input cable of the PDU need to be secured to the rack or cable manager and cannot be
left suspended.
1
2
A
Enlarged diagram of A
3
