Vertiv Liebert Mini-Mate MT048 - CABINET DIMENSIONAL DATA 4 & 5 ΤΟΝ DIRECT EXPANSION FAN;COIL MODULE

REV : 2
REV DATE : 06/18
DPN004055
Page :1 /1
Form No.: DPN001040_REV4
4 & 5 TON DIRECT EXPANSION FAN/COIL MODULE

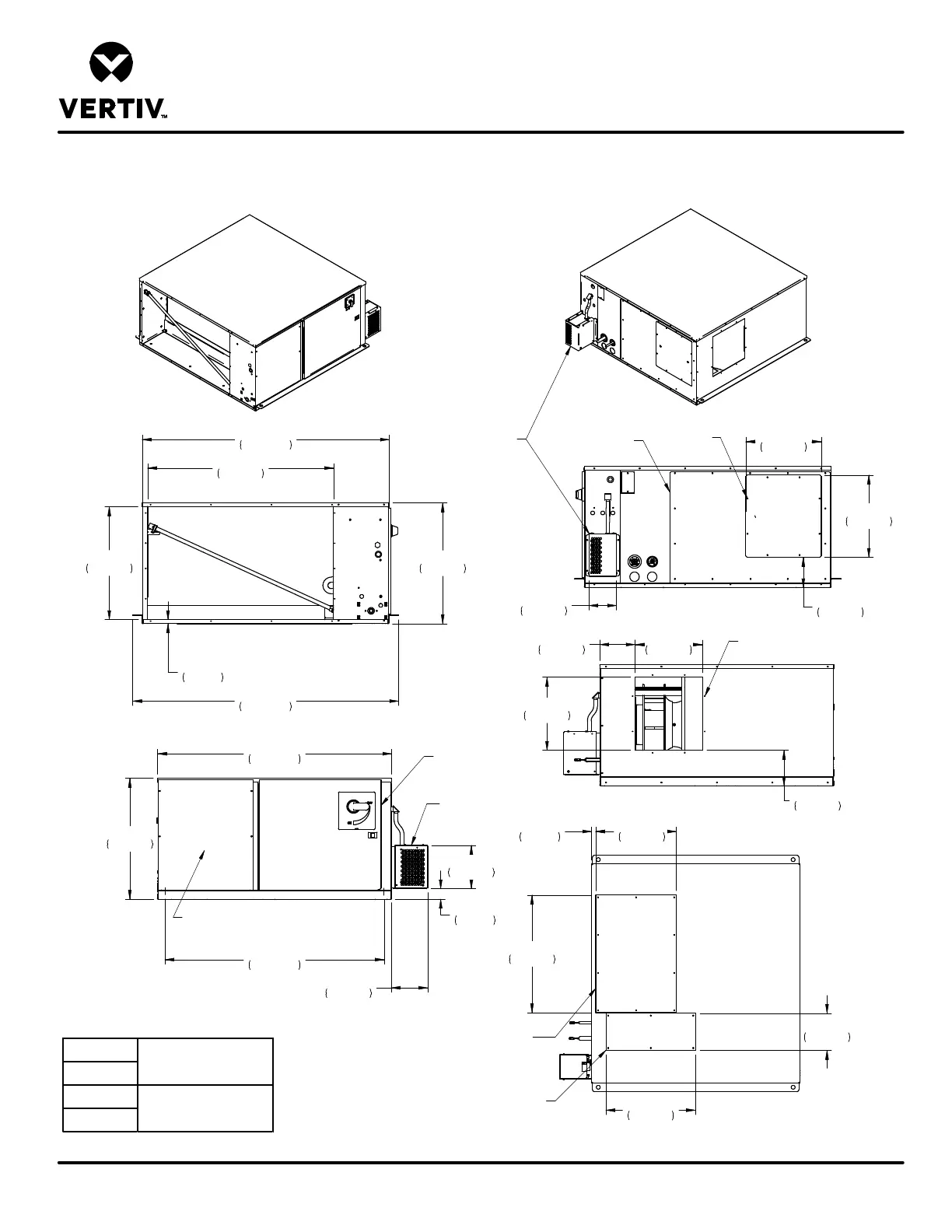

CABINET DIMENSIONAL DATA
LIEBERT MINI-MATE
VARIABLE CAPACITY
Front of Unit
Right Side
of Unit
Discharge
Side of Unit
Return Air Side
of Unit
Return Air Side of Unit
22 7/16"
570mm
24"
610mm
49"
1245mm
13/16"
21mm
52 13/16"
1341mm
36 7/8"
937mm
Right Side of Unit
15"
381mm
16 1/4"
413mm
Fan Service
Access Panel
6 1/8"
156mm
Front of Unit
24"
610mm
46 1/2"
1180mm
Electrical
Access Panel
Removable
Access Panels
MODEL #
60 HZ
MT048HE1
MT060HE1
MODULE WEIGHT
lbs. (kg) net.
498 (226)*
Discharge Side
Bottom of Unit
13 3/8"
340mm
14 1/2"
368mm
7"
177mm
26 1/4"
667mm
18"
457mm
20"
508mm
8 1/4"
210mm
15/16"
24mm
7"
178mm
Service
Access Panel
Bottom Service
Access Panel
For Fan
43 1/2"
1105mm
1/8"
(3mm)
Dia.
Optional 575V
Transformer
Optional 575V
Transformer
5 1/2"
139mm
8 9/16"
218mm
2 1/8"
53mm
7 1/4"
184mm
*Units with 575V transformer add 32 (14.5)
1/8"
(3mm)
Dia.
