Vertiv Liebert Mini-Mate MT048 - PRIMARY CONNECTION LOCATIONS 4 & 5 ΤΟΝ DIRECT EXPANSION FAN;COIL MODULE

REV : 1
REV DATE : 8/17
DPN004056
Page :1 /1
4 & 5 TON DIRECT EXPANSION FAN/COIL MODULE
Form No.: DPN001040_REV4

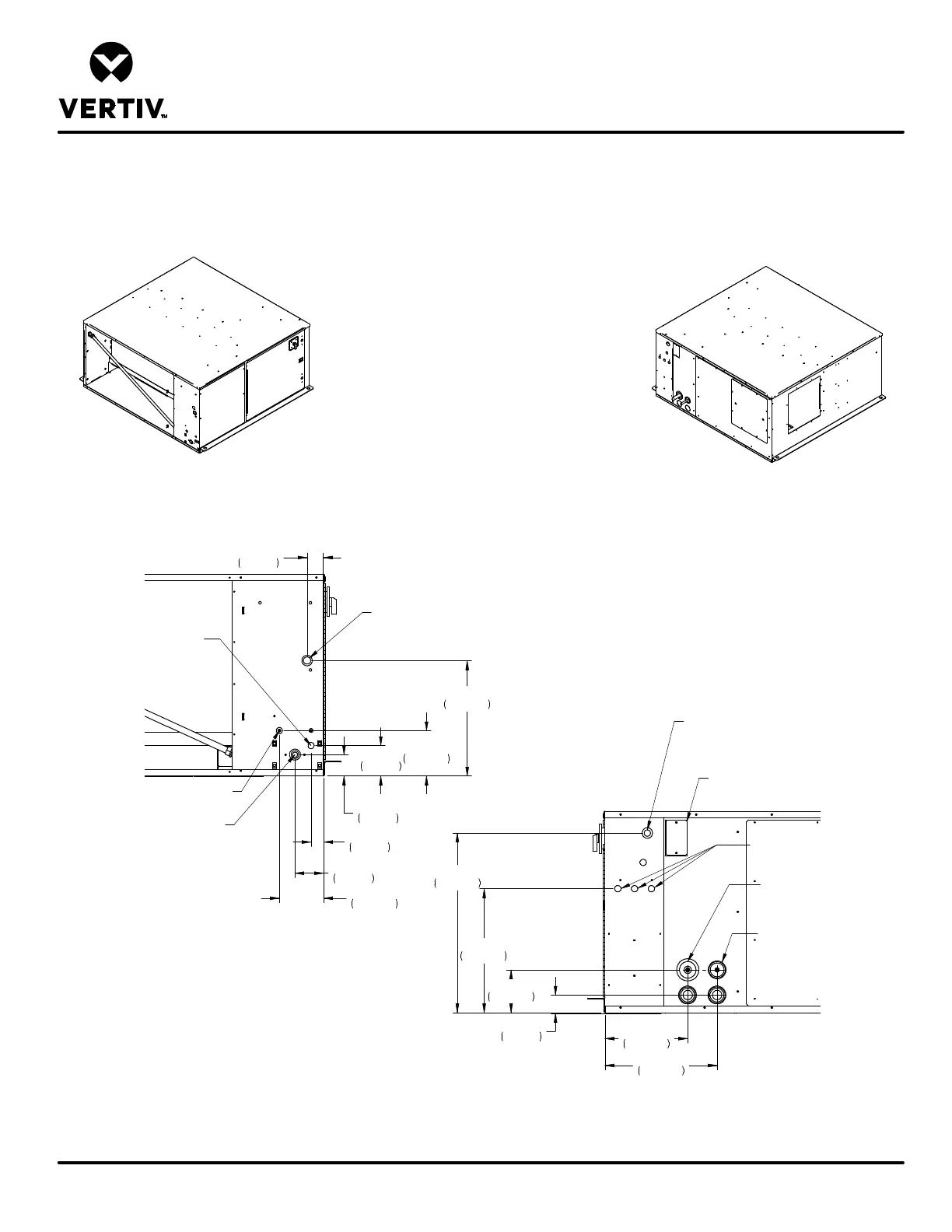

PRIMARY CONNECTION LOCATIONS
LIEBERT MINI-MATE
VARIABLE CAPACITY
Left Side of Unit
Right Side of Unit
7/8" (22.2mm) Dia.
Electrical Entrance for
Condensate Pump
Connection
Filter Clog Switch
Adjustment Screw
5 1/4"
134mm
1 1/2"
38mm
13 3/4"
349mm
1 7/8"
48mm
5 1/8"
130mm
7/8" (22.2mm) OD CU
Suction Refrigerant Line
1/2" (12.7mm) OD CU
Liquid Refrigerant Line
Entrance for Customer High
Volt Connections
Entrance for Customer Low
Volt Connections
14 13/16"
376mm
21 7/16"
544mm
Front of Unit
Right Side
side of unit
Rear of unit
Left Side
of Unit
Location for Optional
IntelliSlot card
3/4" (19mm) NPT Female
Condensate Drain Connection
Drain is trapped internally and
must not be trapped outside
of the module
NOTE: ROUTE SUPPLY LINE TO CLEAR
HANGING RODS AND FILTER ACCESS
3 5/8"
92mm
5 7/16"
137mm
2 9/16"
65mm
3 7/16"
87mm
9 13/16"
250mm
2 3/16"
55mm
13 3/8"
339mm
Optional 1/4" (6mm) O.D. Compression Fitting.
Use Copper Lines for Humidifier Supply Line
