Vertiv Liebert Mini-Mate MT048 - GENERAL ARRANGEMENT SPLIT SYSTEMS W; AIR COOLED CONDENSING UNIT

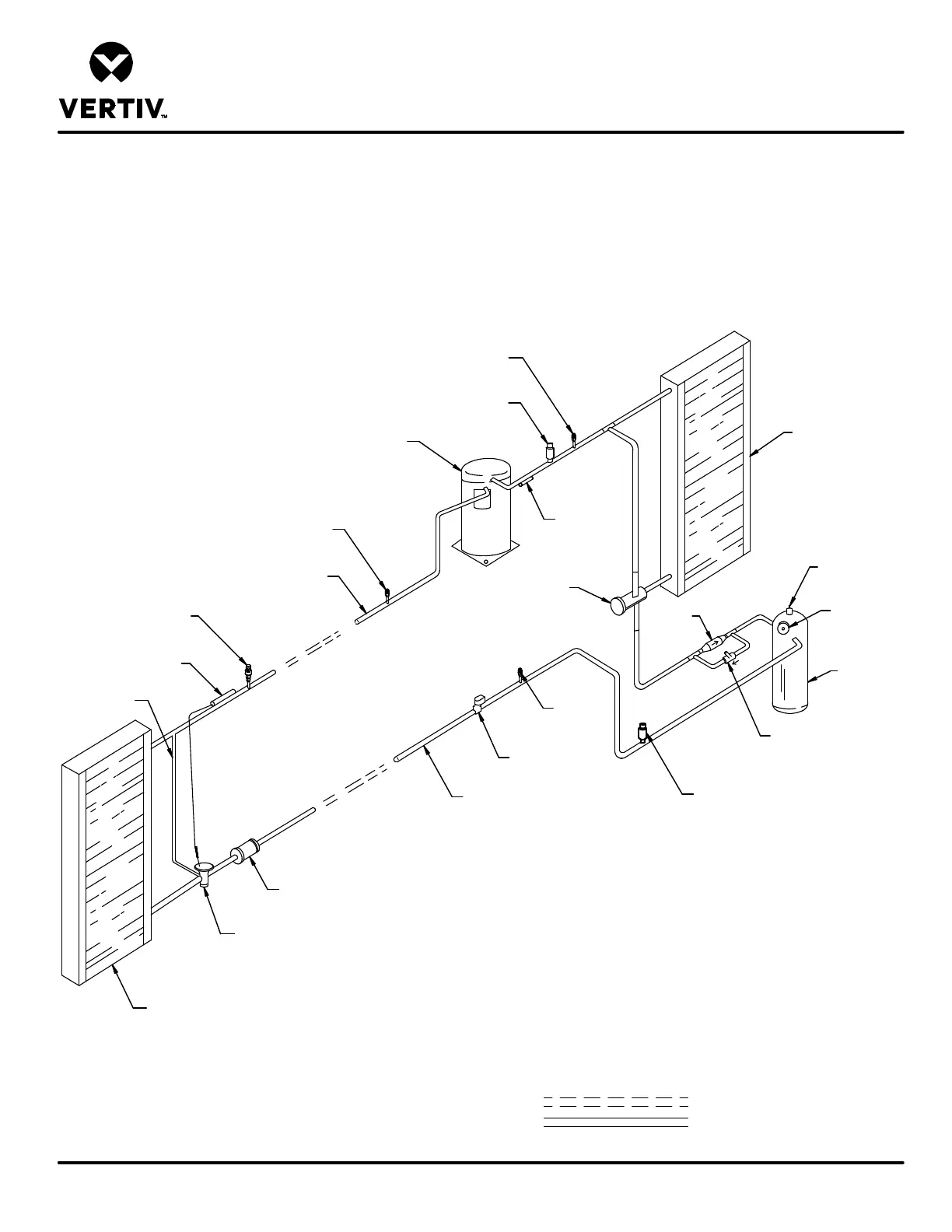

GENERAL ARRANGEMENT
SPLIT SYSTEMS W/ AIR COOLED CONDENSING UNIT
REV : 2
REV DATE : 06/18
DPN004060
Page :1 /1
Form No.: DPN001040_REV4
LIEBERT MINI-MATE
VARIABLE CAPACITY
FIELD PIPING
FACTORY PIPING
High Pressure
Cut Out Switch
Schrader Port
with Valve Core
Suction Pressure
Transducer
External Equalizer
Sensing Bulb
Suction Line
Digital Scroll
Compressor
Schrader Port
with Valve Core
Condenser Coil
Discharge
Temperature
Thermistor
3 - Way Head
Pressure
Control Valve
Atmospheric Pressure
Relief Valve
Sight Glass
Lee - Temp
Receiver
Pressure
Balancing Valve
Check
Valve
Receiver Heater Pressure
Limiting Switch
Liquid Line
Liquid Line
Solenoid Valve
Schrader
Port with
Valve Core
Filter Drier
Expansion
Valve
Evaporator Coil
