Vertiv Liebert Mini-Mate MT048 - PRIMARY CONNECTION LOCATIONS 3 ΤΟΝ DIRECT EXPANSION FAN;COIL MODULE

REV : 0
REV DATE : 6/18
DPN004801
Page :1 /1
3 TON DIRECT EXPANSION FAN/COIL MODULE
Form No.: DPN001040_REV4

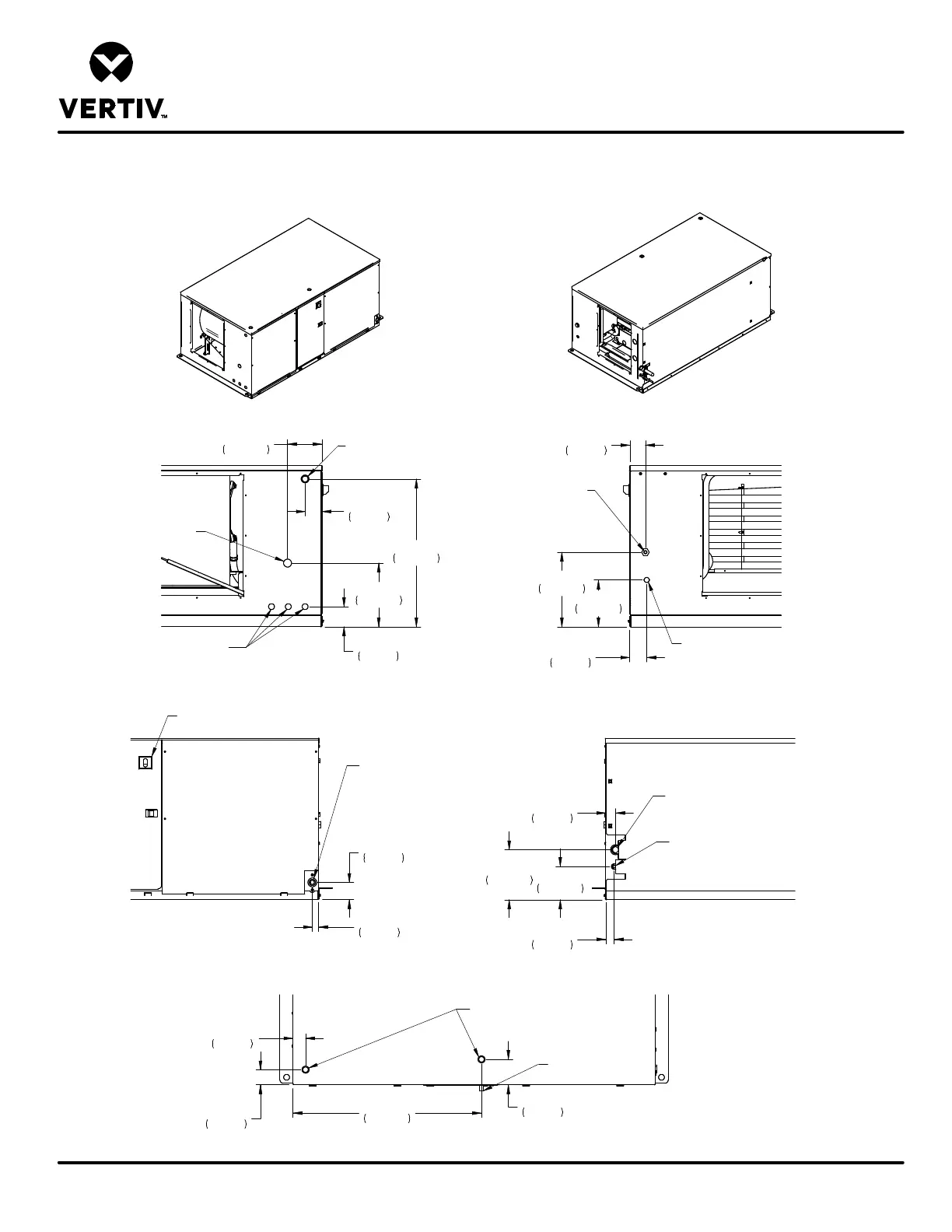

PRIMARY CONNECTION LOCATIONS
LIEBERT MINI-MATE
VARIABLE CAPACITY
Rear of Unit
Left Side of Unit
Front of Unit
Right Side of Unit
Left Side of Unit
2 1/2"
64mm
Filter Clog Switch
Adjustment Screw
Entrance for Customer High
Volt Connections
Entrance for Customer
Low Volt Connections
22"
559mm
3"
76mm
9 1/2"
241mm
5 1/8"
130mm
Right Side of Unit
11 1/8"
283mm
7"
178mm
2 9/16"
64mm
2 5/16"
59mm
Optional 1/4" (6mm) O.D.
Compression Fitting.
Use Copper Lines for
Humidifier Supply Line
7/8" (22.2mm) Dia. Electrical Entrance
for Condensate Pump Connection
Rear of Unit
Front of Unit
2 9/16"
65mm
15/16"
24mm
3/4" (19mm) NPT Female
Condensate Drain Connection
Drain is trapped internally and
must not be trapped outside
of the module
1 1/4"
32mm
1 7/16"
37mm
4 15/16"
125mm
7 7/16"
189mm
7/8" (22.2mm) OD CU
Suction Refrigerant Line
3/8" (10mm) OD CU
Liquid Refrigerant Line
Top of Unit
1 15/16"
48mm
3 3/4"
95mm
2 1/4"
57mm
Entrance for Customer
High Volt Connections
28 1/8"
714mm
Disconnect Switch
Disconnect Switch
