LIEBERT iCOM™ WALLMOUNT DISPLAY
Form No.: DPN001040_REV4
LIEBERT MINI-MATE
VARIABLE CAPACITY

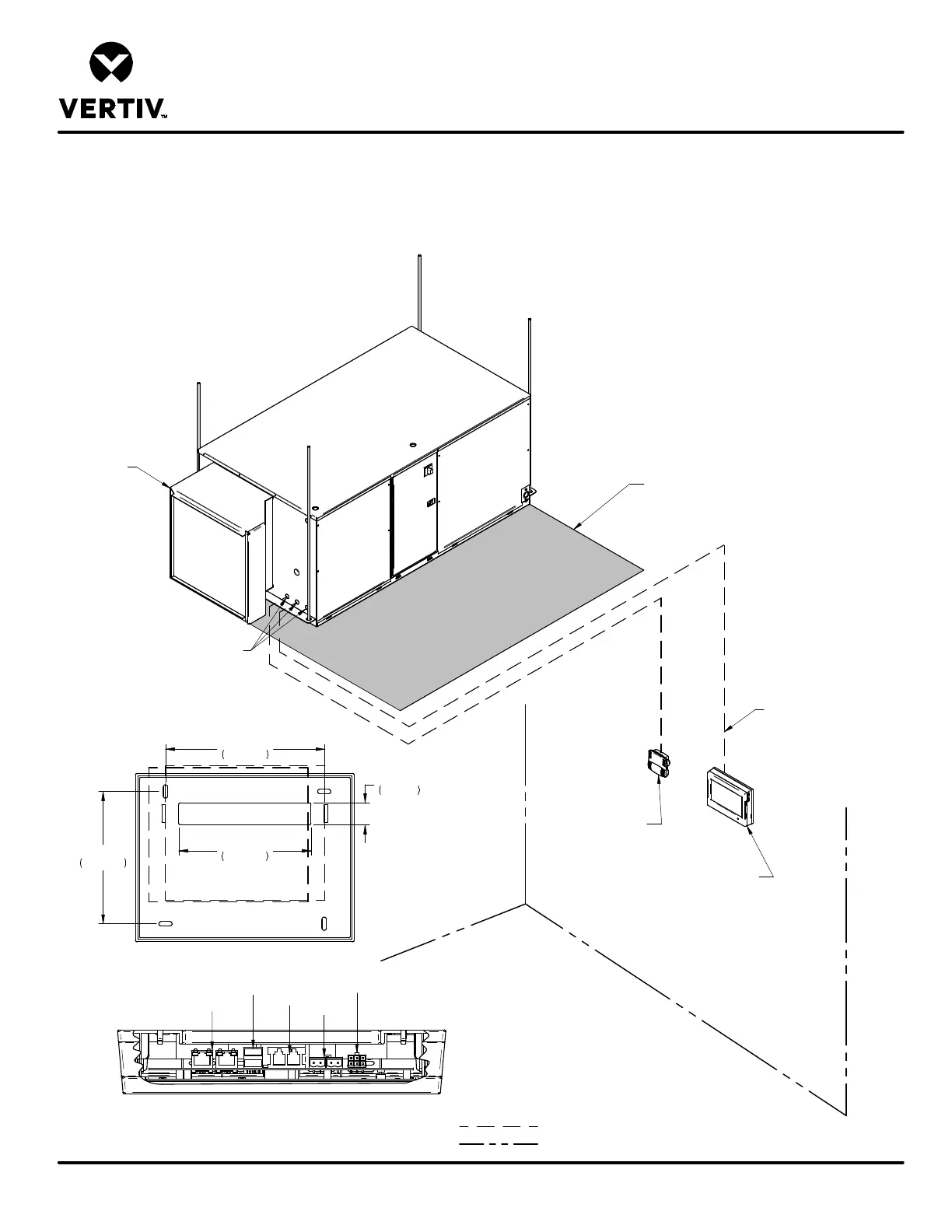

3 TON GENERAL ARRANGEMENT, DIMENSIONAL DATA
& FIELD CONNECTIONS
Field Provided Wiring
Wall
Notes:
1. Refer to DPN004802 for connection points on Liebert Mini-Mate unit.
iCOM
Wall Display
POWER
485
CAN
USB
ETHERNET
WALL DISPLAY - DUST COVERS AND HARNESS NOT PICTURED FOR CLARITY
Rear view of iCOM Wall Display Case
7 1/8"
181mm
5 7/8"
150mm
5 7/8"
150mm
1"
25mm
Inlet and Outlet Opening for Power
& Commnunication Wires
Ethernet
Comms
and
Power Feed
Remote
Temperature
and Humidity
Sensor
Optional Filter
Box Shown
Shaded area indicates a
recommended clearance of
30" (762 mm) for component
access and removal.
Entrance for
Customer Low
Volt Connections.
Front
of Unit
Left Side
of Unit
