REV : 0
REV DATE : 06/18
DPN004805
Page :1 /1

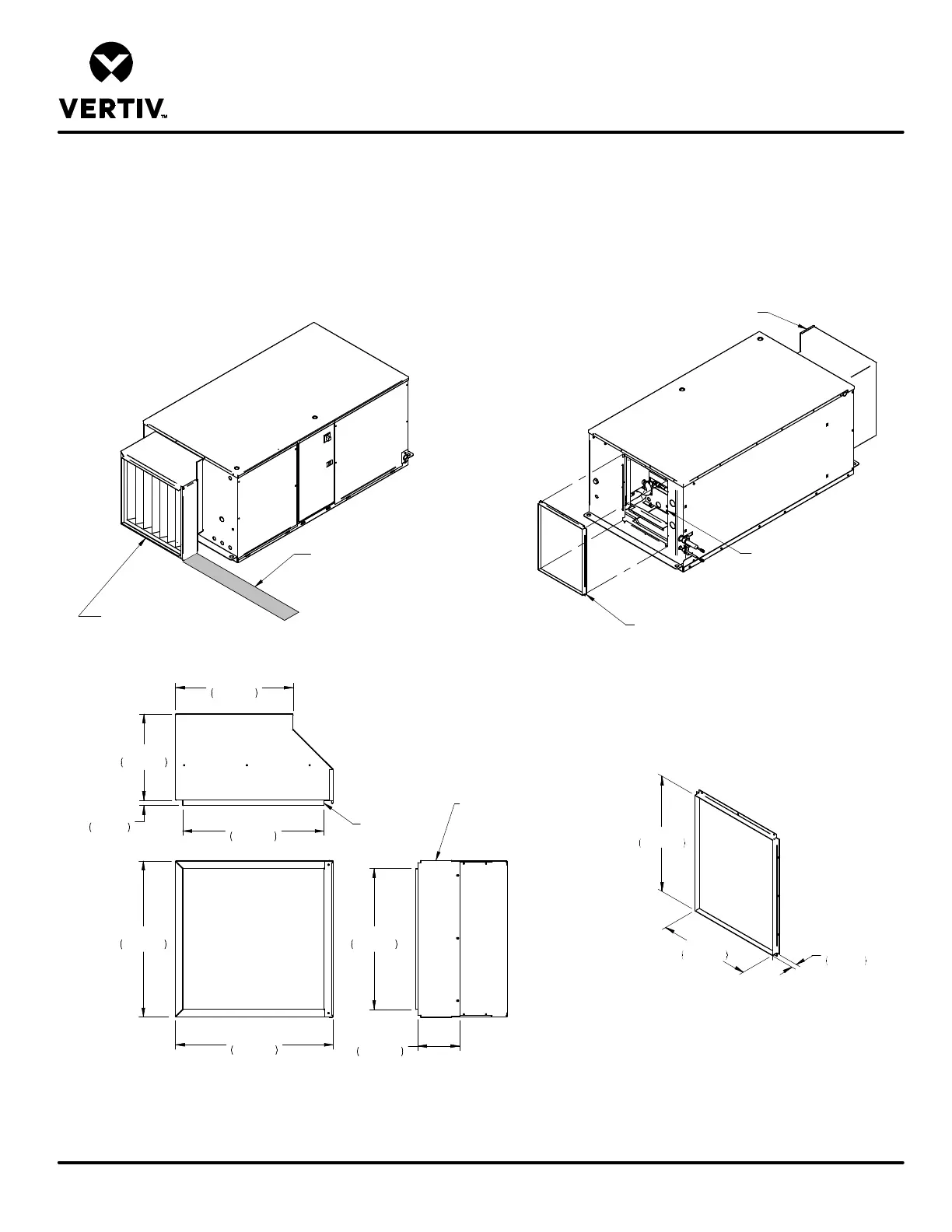

OPTIONAL FIELD INSTALLED FILTER BOX &
DISCHARGE DUCT FLANGE 3 TON MODEL
Form No.: DPN001040_REV4
DIMENSIONAL DATA
LIEBERT MINI-MATE
VARIABLE CAPACITY
Discharge Air Duct Flange
Optional Field Installed
Filter Box
Shaded area indicates a recommended
clearance of 30" (762mm) be provided
for filter access and removal.
Removable
Filter Access
Panel
18"
457mm
5 3/8"
136mm
20 1/8"
511mm
11"
279mm
11/16"
17mm
18"
458mm
Duct Flange
Front of Filter Box
Optional Filter Box
Discharge Air Duct Flange
Supplied with Filter Box
Air discharge location
for duct flange
14"
356mm
18"
457mm
13/16"
20mm
19 7/8"
505mm
15"
381mm
Optional Field Installed
Filter Box
Discharge Side
of Unit
Front of Unit
Rear of Unit
