REV : 0
REV DATE : 06/18
DPN004806
Page :1 /1
Form No.: DPN001040_REV4

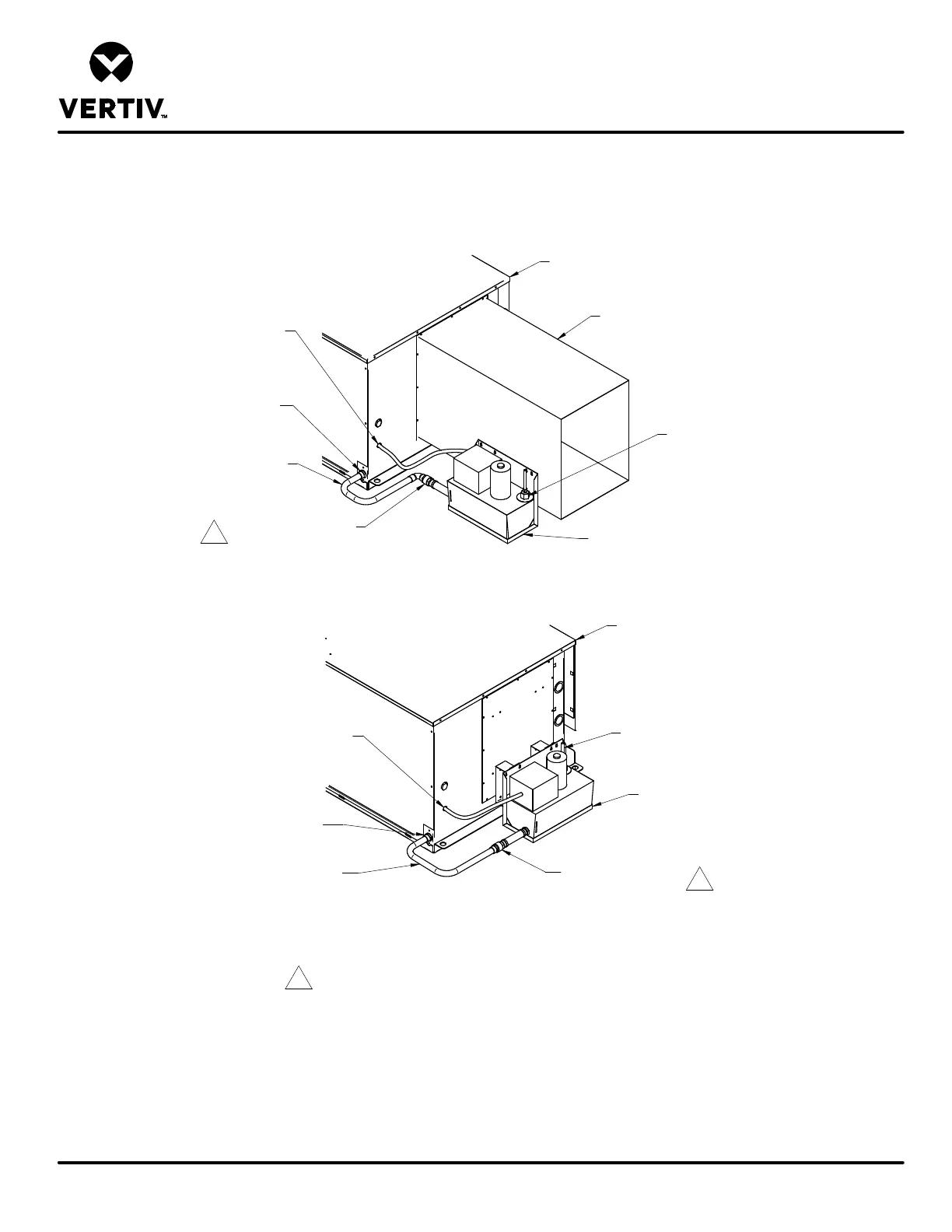

OPTIONAL FIELD INSTALLED
CONDENSATE PUMP CONNECTION LOCATIONS
3 TON MODEL
LIEBERT MINI-MATE
VARIABLE CAPACITY
Condensate Pump
Support Bracket
3/4" (19mm) NPT-Female
Condensate Drain
Connection
Field Supplied Rigid Piping
(Support as Required)
3/4" (19mm) NPT - Female
Customer Connection
1
Notes:
1. 3/4" NPT-Male to 3/4" (19mm) flexible rubber tubing assembly supplied must
be installed between condensate drain and pump inlet fitting and secured.
2. The Auxiliary Float Switch included with pump must be field interlocked
with unit control to enable unit shutdown feature. Wire to Mini-Mate
terminal per unit schematic.
3. Refer to DPN003401 for installation instructions.
4. Condensate pump is energized through Mini-Mate Module.
Separate power supply is not necesary.
5. Condensate pump includes built in drain line check valve.
CONDENSATE PUMP (FIELD INSTALLED)
ON UNIT WITH AIR OUTLET DUCTWORK
Air Outlet Duct
Fan Coil Unit
CONDENSATE PUMP (FIELD INSTALLED)
ON UNIT WITH AIR DISTRIBUTION PLENUM
3/4" (19mm) NPT-Female
Condensate Drain
Connection
Field supplied rigid piping.
Support as required.
Condensate Pump
Support Bracket
3/4" (19mm) NPT - Female
Customer Connection
3/8" (9.5mm) Compression Fitting
Drain Connection
Field Supplied Drain Line
Electrical Entrance
for Condensate Pump
Connection
Fan Coil Unit
1
Electrical Entrance
for Condensate Pump
Connection
3/8" (9.5mm) Compression Fitting
Drain Connection
Field Supplied Drain Line
