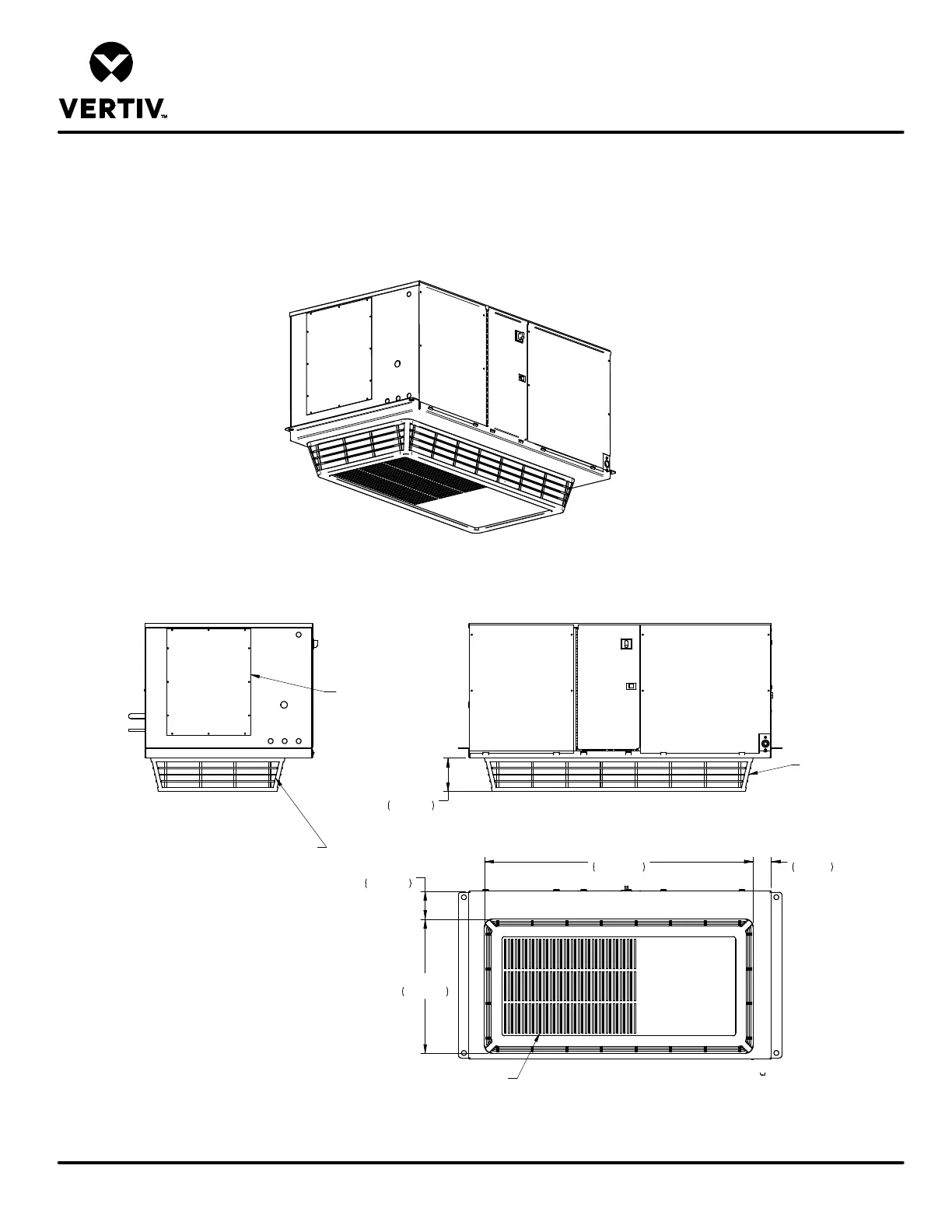

OPTIONAL FIELD INSTALLED
AIR DISTRIBUTION PLENUM
3 TON MODEL
LIEBERT MINI-MATE
VARIABLE CAPACITY
Front of Unit
Return Side of Unit
Bottom of Unit
48"
1219mm
24"
610mm
5"
127mm
3 1/4"
83mm
Removable panel on
side of plenum. Minimum
Clearance 30" (762mm) for
filter access and removal.
Air Discharge out
sides of plenum
Cover Plate supplied
with Plenum
Air Inlet through grille
in bottom center of plenum
6"
152mm
