REV : 1
REV DATE : 5/17
DPN004059
Page :1 /1

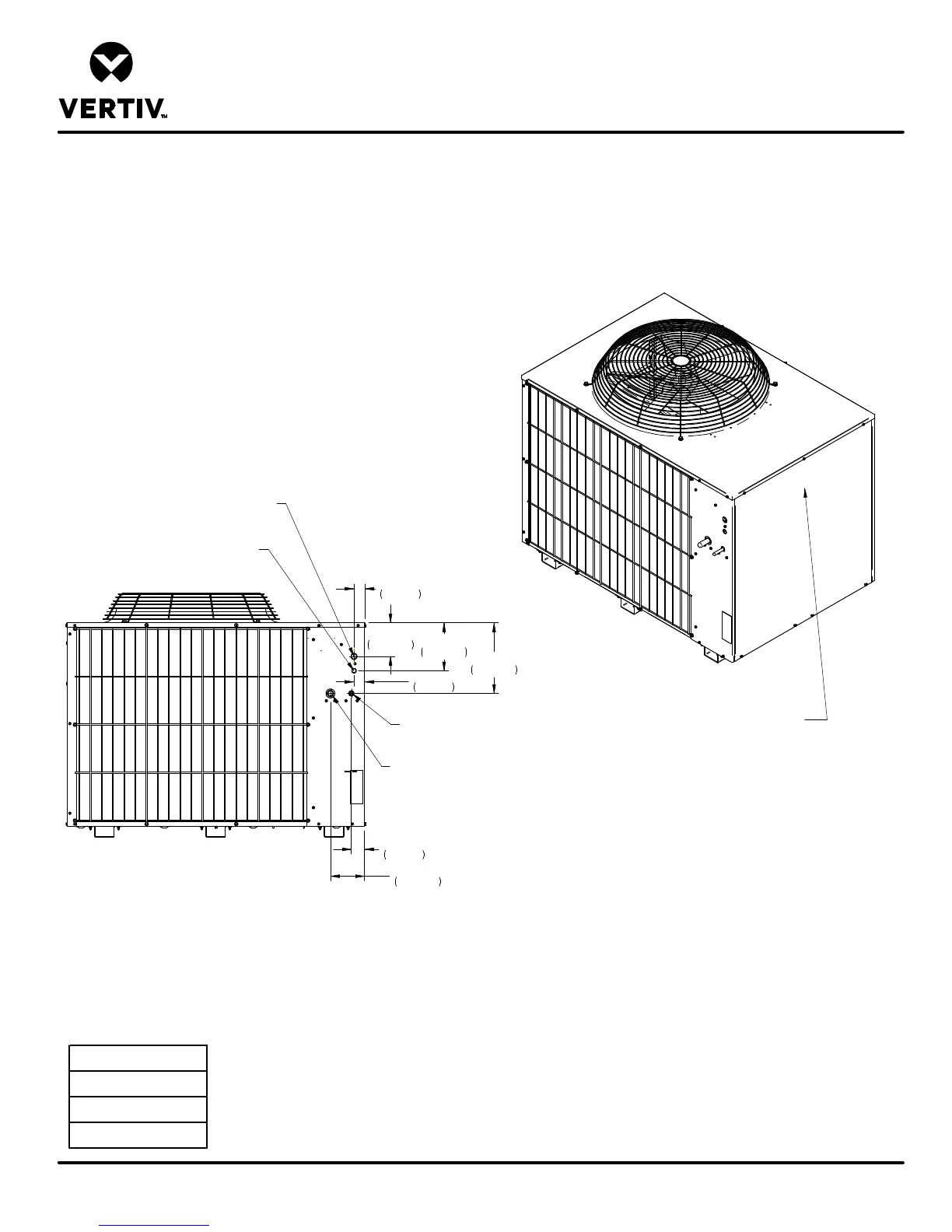

5 TON HIGH AMBIENT/QUIET-LINE OUTDOOR CONDENSING UNIT
W/ TOP AIR DISCHARGE
Form No.: DPN001040_REV4
PRIMARY CONNECTION LOCATIONS
LIEBERT PFD
Removable Panel - Access to
refrigeration components, electrical
components and connections
PRIMARY CONNECTION LOCATIONS
2"
50mm
12-5/8"
320mm
3/4" (17 mm) Liquid Line OD CU
1-1/8" ( 29mm) Suction Line OD CU
MODEL NUMBERS
60Hz
PFD067A - H
PFDZ67A - L
1-15/16"
48mm
6"
152mm
8-9/16"
217mm
2-3/8"
60mm
6-1/16"
155mm
3/4" (17mm) Dia. Electrical Entrance for
Low Voltage Connection
1" (25 mm) Dia. Electrical Entrance
for High Voltage Connection
