REV : 2
REV DATE : 06/18
DPN004064
Page :1 /1

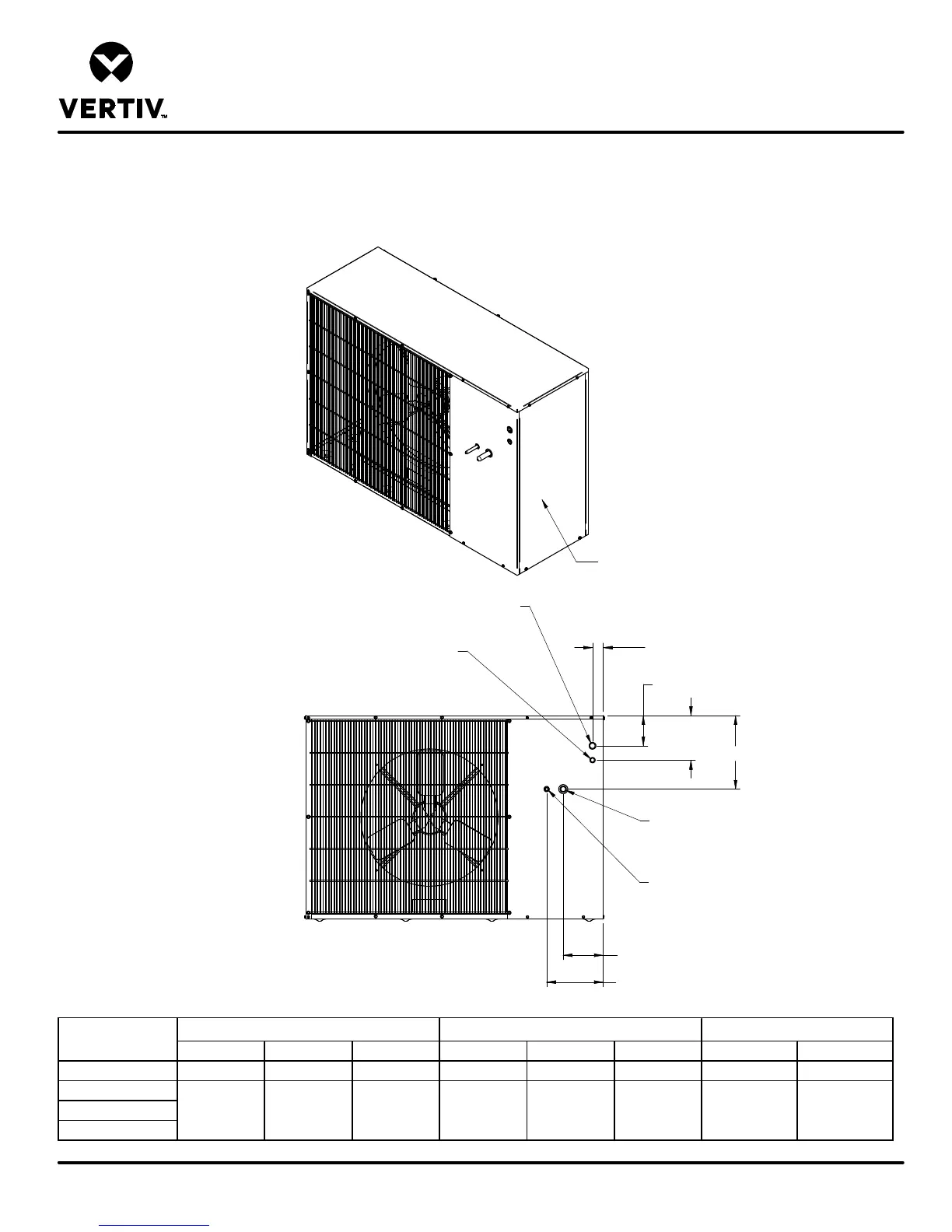

PRIMARY CONNECTION LOCATIONS
CONDENSING UNIT W/ HORIZONTAL AIR DISCHARGE
Form No.: DPN001040_REV4
LIEBERT PFD
A B C D E F G H
PFD037A-L 2 (51) 5-3/4 (146) 8-1/2 (216) 6 (152) 7-1/2 (191) 10-1/2 (267) 3/4" 3/8"
PFD037A-H
PFD054A-L
PFD067A-L
ELECTRICAL CONNECTIONS in. (mm)
7/8" 1/2"
MODEL NUMBERS
7-1/4 (184) 10 (254)2 (51) 5-1/2 (140) 8 (203) 13-1/4 (337)
PIPING CONNECTION LOCATION in. (mm) PIPING CONNECTION SIZES O.D. CU
D
C
B
A
Removable Panel - Access to
refrigeration components, electrical
components and connections
1" (25 mm) Dia. Electrical Entrance
for High Voltage Connection
3/4" (17mm) Dia. Electrical Entrance for
Low Voltage Connection
E
Suction Line Connection
Liquid Line Connection
F
