REV : 2
REV DATE : 06/18
DPN004066
Page :1 /1
OUTDOOR CONDENSING UNIT WITH HORIZONTAL AIR DISCHARGE
Form No.: DPN001040_REV4

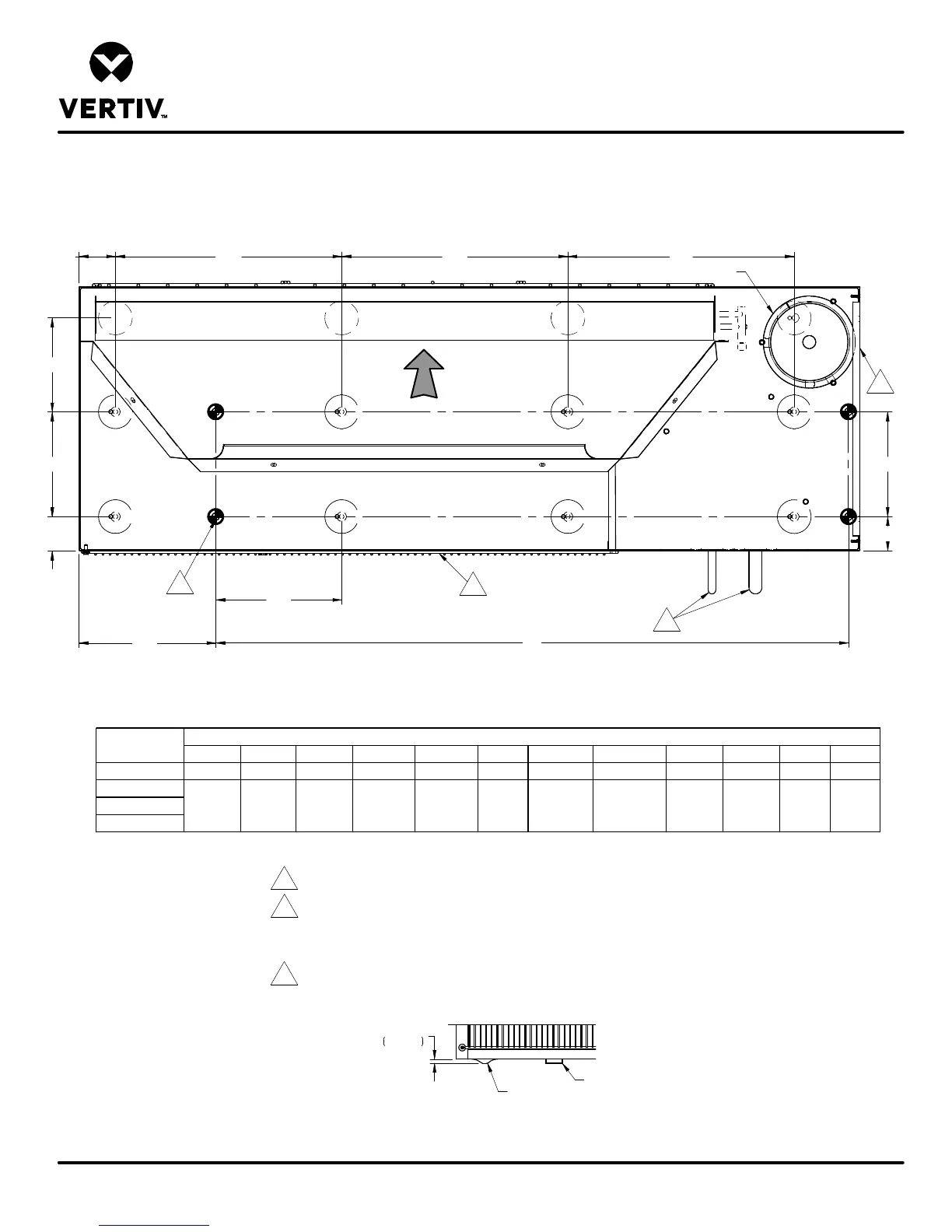

OPTIONAL ANCHORAGE PLAN
LIEBERT PFD
TOP VIEW
Some Parts not Shown for Clarity
A B C D E F G H J K L M
PFD037A-L
9-9/16 (243) 37-1/8 (943) 2-1/4 (57) 7-1/8 (181) 6-1/8 (156) 2-9/16 (65) 13-1/8 (333) 14-3/4 (375) 13-1/4 (337) 2-1/4 (57) 7-1/8 (181) 6-3/8 (162)
PFD037A-H
PFD054A-L
PFD067A-L
MODEL NUMBERS
DIMENSIONAL DATA in. (mm)
9-5/16 (236) 43 (1092) 2-5/16 (58) 7-1/8 (181) 8-19/16 (217) 2-1/2 (63) 15-1/16 (383) 15-11/16 (398) 15-3/8 (391) 2-5/16 (58) 7-1/8 (181) 6-3/8 (162)
F G H J
K
L
M
A
B
C
D
Coil
Air
2Typ. (4) places
1
6
Receiver
1
PARTIAL FRONT VIEW
3/8"
10mm
Foot
3/8"(10mm) Field supplied spacer
Typical 4 places
Notes:
1. Front Grille and Right End Panel will need to be removed to access anchor holes,
Top panel may be removed for additional access. All removed parts must be reinstalled.
2. 1/2"(13mm) Diameter hole, use for unit anchor.
3. All dimensions have a tolerance of ±1/16".
4. F, G, H, J, K, L and M dimensions are for the foot locations.
5. The use of this anchor plan is optional and installer will assume
responsibility for suitable anchorage.
6. Supply and return piping connections.
Rear of Unit
Front of
Unit
E
