Vertiv™ NetSure™ 5100 Series -48 VDC Power System User Manual

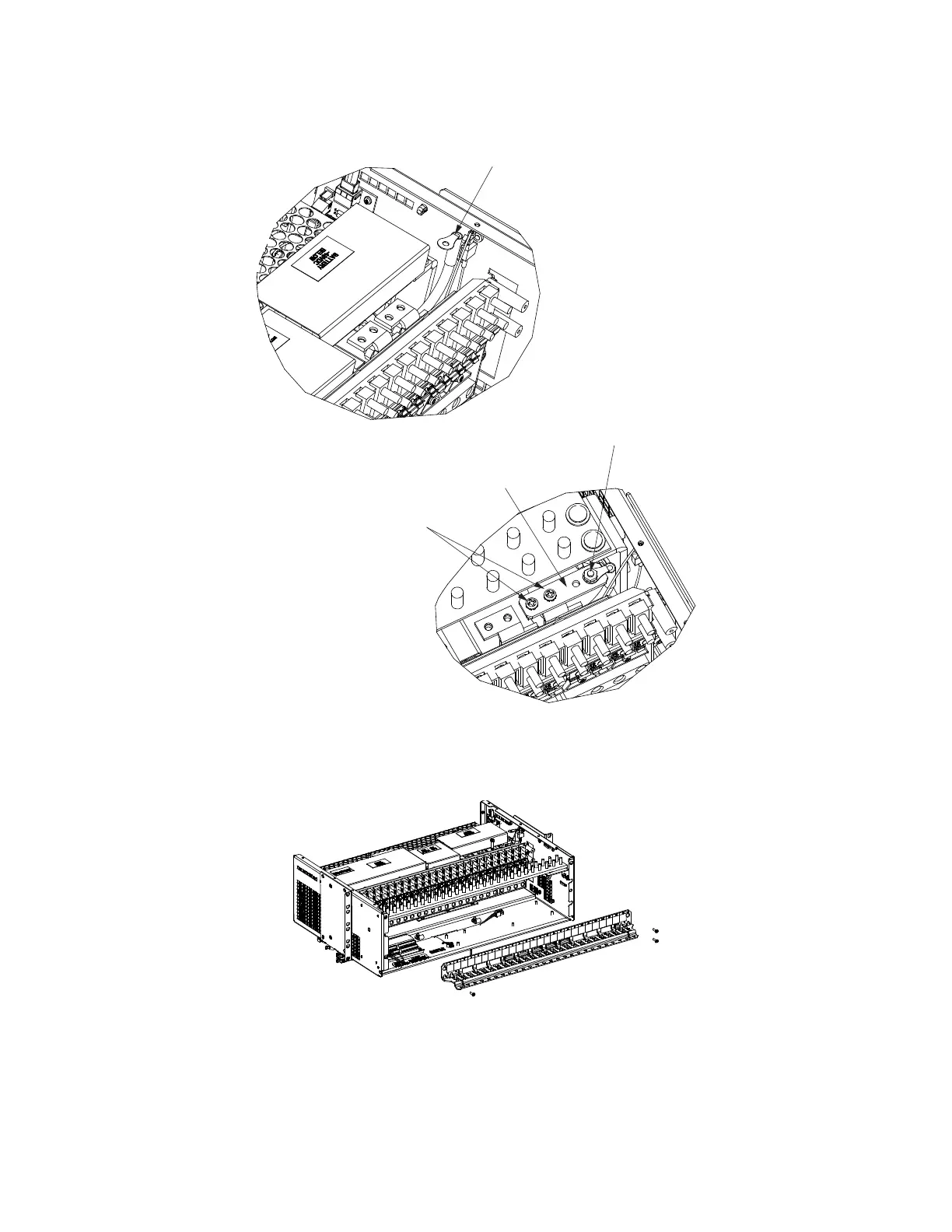

Figure 4.22 Relocating Shorting Busbar and Connecting Cable

8. Remove the shield from the distribution panel.

Figure 4.23 Removing Distribution Panel Shield

9. Locate the violet wire stored near the IB2 card inside the distribution cabinet. Connect this wire to Digital Input 2+ (DI2+) on

the IB2.

Relocate Shorting Busbar

and Install Cable

orque to 23 in-lbs.

Torque to 23 in-lbs.

Locate this Cable

Remove this Shield
