Vertiv | NetSure 7100 Series Quick Start Guide (QS582127000) | Rev. T

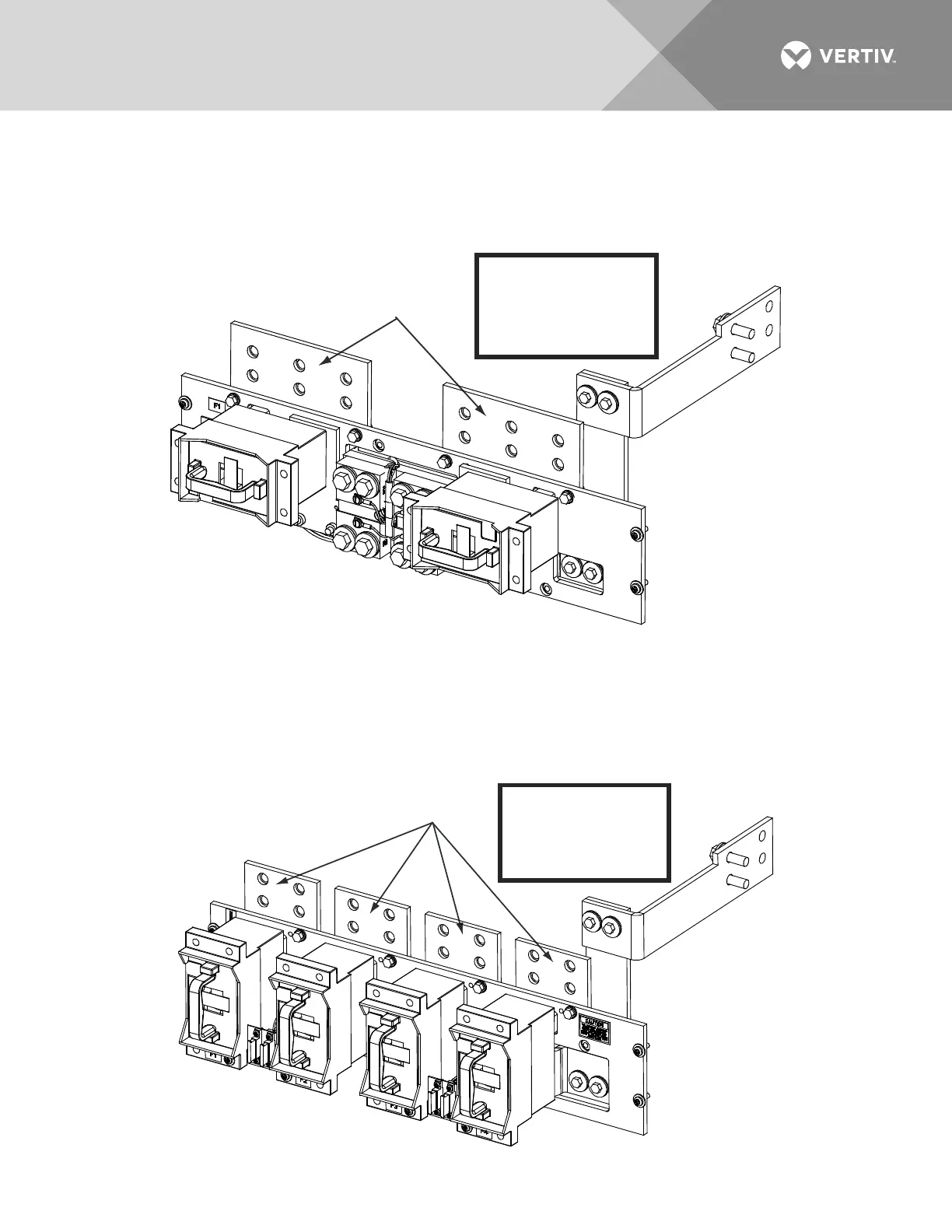

Figure 69:
List BF: Battery Disconnect Distribution Panel, (2) TPH Fuse Battery Disconnect Positions (with
Shunts) (without Return Busbar)
Figure 70:
List BG: Battery Disconnect Distribution Panel, (4) TPH Fuse Battery Disconnect Positions (without
Shunts) (without Return Busbar)
-48VDC Battery
Connections
BATTERY CONNECTIONS
3/8-16 Captive Nuts on 1” Centers Maximum Lug Width: 1.88 inches.
(Customer must supply
or order additional
hardware)
Observe proper polarity
when making battery
connections.
WARNING!
-48VDC Battery
Connections
BATTERY CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply
or order additional
hardware)
Observe proper polarity
when making battery
connections.
WARNING!
Maximum Lug Width: 1.75 inches.
Maximum fuse size is 400A.
