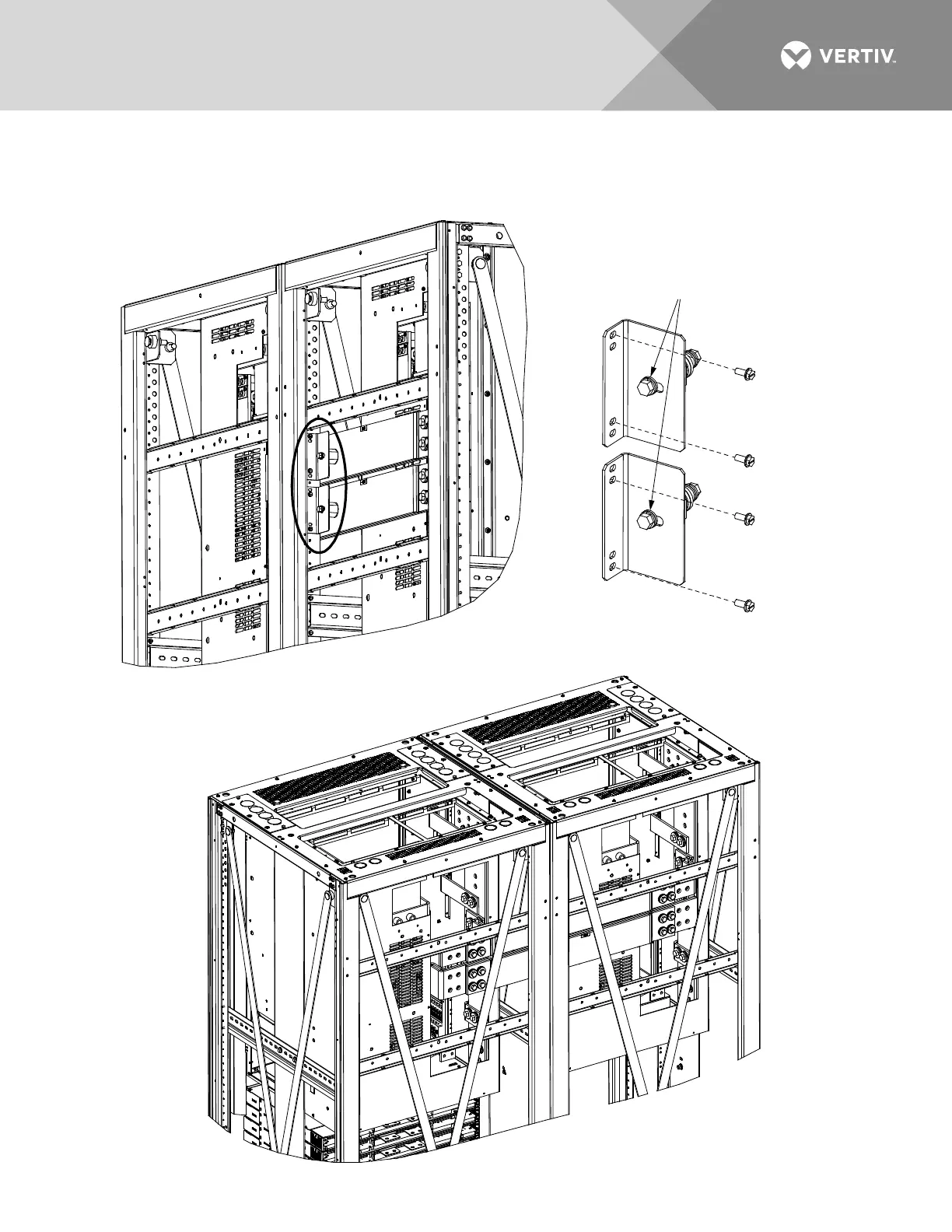

Figure 41: Installing Bay-to Bay Busbars (List 7 and 8 Only) (for system mounted in an enclosure) (cont’d from
previous page)
ASSEMBLED VIEW
8. Attach L-Shaped Brackets to cabinet side wall.
9. Tighten bracket to insulator bolt.
10. Re-Install cabinet rear panels.
8-32 x 3/8” Bolt
Torque to 20 in-lbs.
8-32 x 3/8” Bolt
Torque to 20 in-lbs.
1/4-20 x 1/2” Bolt,
1/4” Lock Washer,
1/4” Flat Washer.
Torque to 84 in-lbs.
