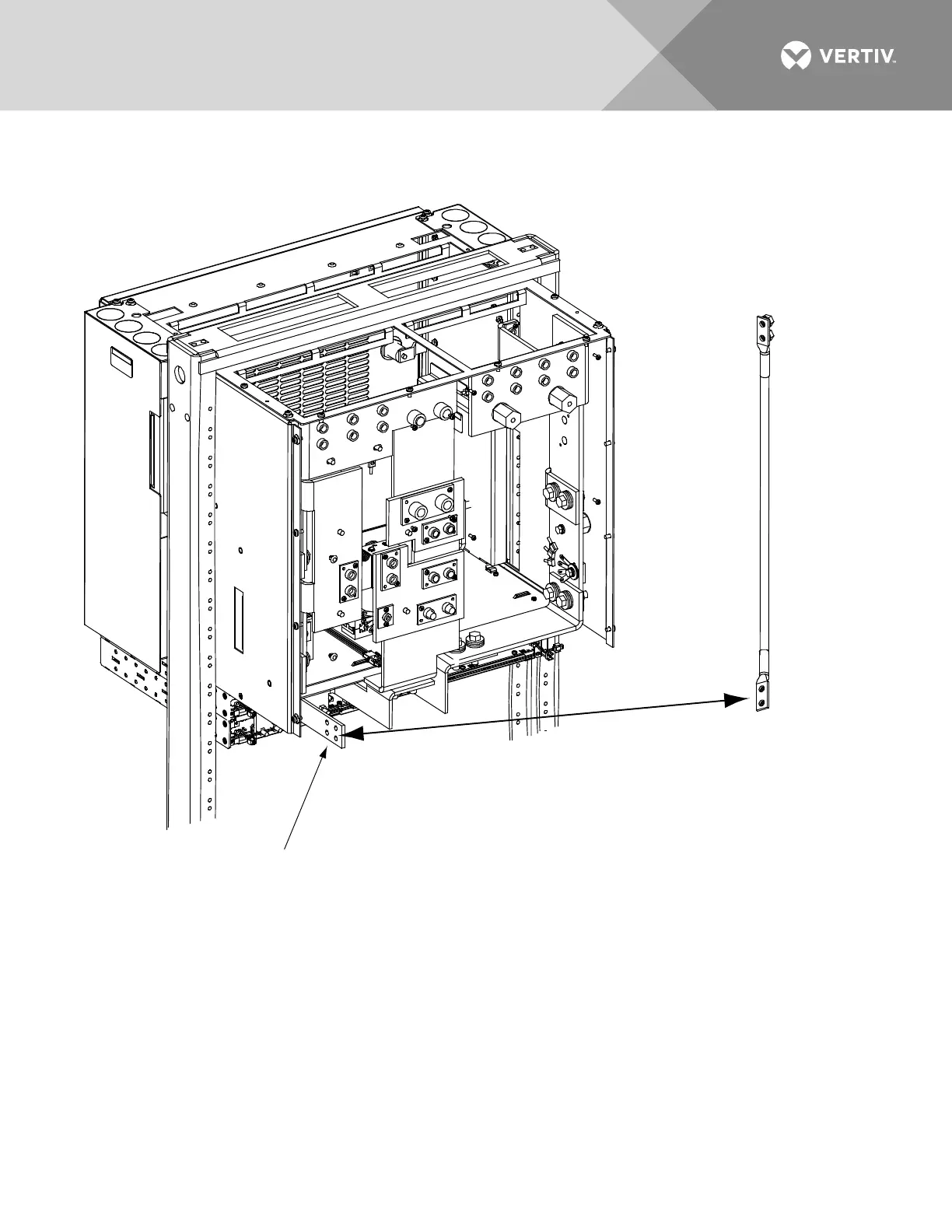

Figure 42: Installing Converter Output Cables (cont’d from previous page, cont’d on next page)
TORQUE CONNECTIONS
TO 84 IN-LBS.
To List DA, DB, DC, DD,
DE, DF, DG, DH, and DJ
Dual Voltage Distribution Panel
(see previous illustration)
P/N 556228
Converter
Output
Cable
Assembly order is: 1/4-20 x 1” bolt, 1/4” lock washer, 1/4” flat washer,
lug, +24V Busbar, 1/4” flat washer, 1/4-20 nut.
+24V Bus
Lugs may be mounted on both
sides of this busbar.
