2 Chapter 1 Introduction
NetSure 801 AG1 Power Supply System User Manual
and one rectifier cabinet is shown in Figure 1-4. The configurations of the distribution cabinets and the rectifier
cabinet are given in Table 1-1, and the mechanical parameters are given in Table 1-2
Rectifier rackDC distribution cabinet

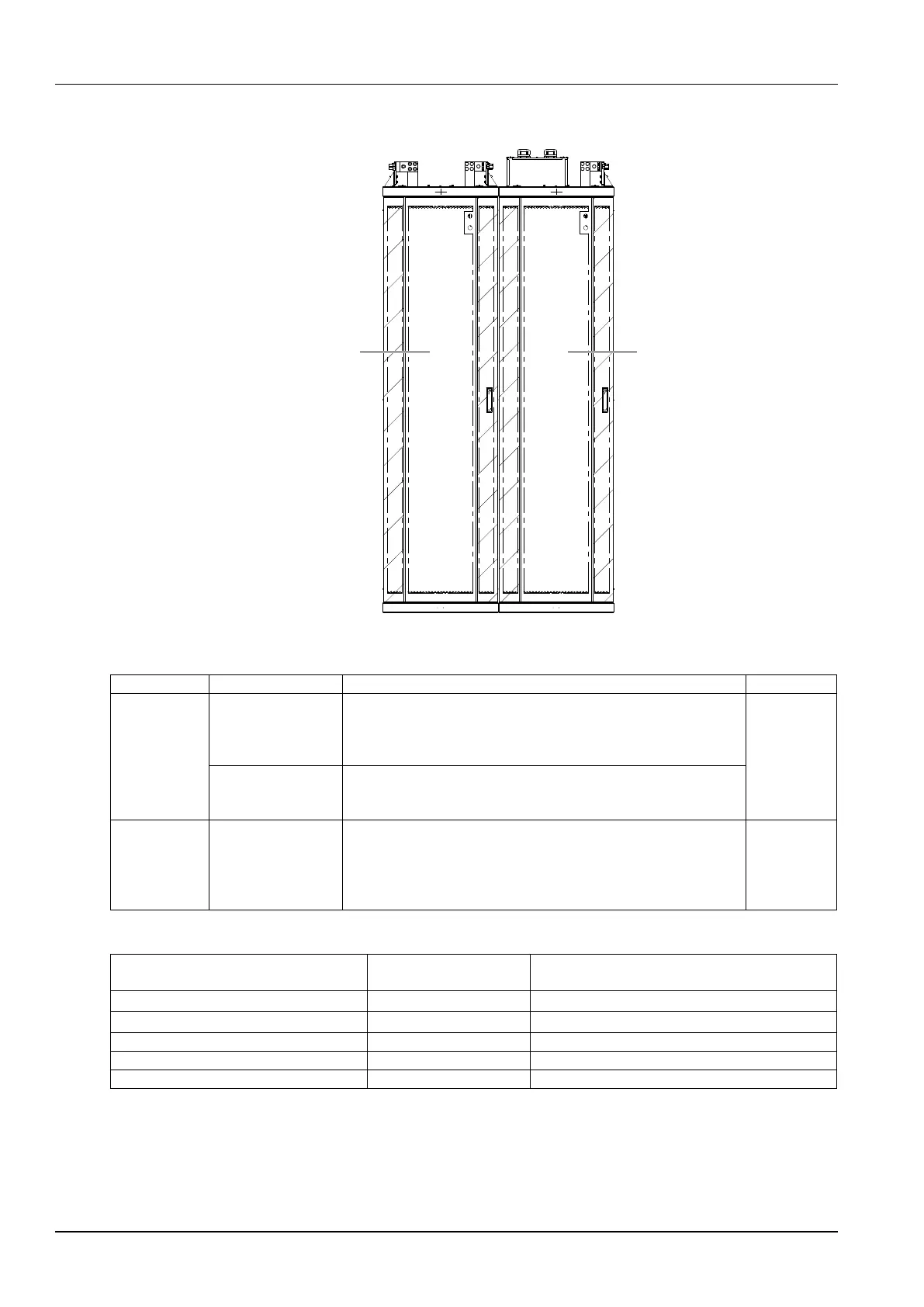

Figure 1-4 System structure
Table 1-1 Configurations of rectifier cabinets and distribution cabinets
Cabinet
Model
Configuration
Options
DC distribution
cabinet
PD48/2000DU
Cabling type: top cabling
Maximally configured with 1 battery distribution unit, 6 high ohmic
distribution units (HOD), or 6 low ohmic distribution units (LOD), or 3
fuse units
Top cover
PD48/2000DD
Cabling type: bottom cabling
Maximally configured with 1 battery distribution unit, 6 HODs, or 6
LODs, or 3 fuse units
Rectifier
cabinet
NetSure 801 AG1-T1
Cabling type: top cabling
1. Controller M830D: 1 piece
2. Rectifier R48-5800A,R48-5800e: 2 ~ 16 pieces
3. DC distribution: maximally configured with 1 battery distribution
unit, 2 HODs, or 2 LODs, or 1 fuse unit
Top cover,
temperature
sensor
Table 1-2 Mechanical parameters of rectifier, controller & cabinet
Component
Dimensions
(H × W × D, unit: mm)
Weight (kg)
R48-5800A,R48-5800e rectifier
88 × 244 × 372
＜
8
M830D controller
87
×
6.2
×
211.2
＜
1
PD48/2000DD DC distribution cabinet
2200 × 600 × 600
< 260
PD48/2000DU DC distribution cabinet
2350 × 600 × 600
< 260
NetSure 801 AG1-T1 rectifier cabinet
2350 × 600 × 600
< 270 (excluding rectifiers and controller)
