Chapter 1 Introduction 3
NetSure 801 AG1 Power Supply System User Manual
1.3 Components
1.3.1 DC Distribution Cabinet
The DC distribution cabinet is available in two models: PD48/2000DU and PD48/2000DD. The appearance of
PD48/2000DD DC distribution cabinet is shown in Figure 1-5. The appearance of PD48/2000DU DC distribution
cabinet is shown in Figure 1-6.
Battery IIBattery I Battery III Load I
HOD
LOD
Fuse unit
Power indicator
SM DU monitoring board
Alarm indicator
Battery distribution unit
DC positive busbar

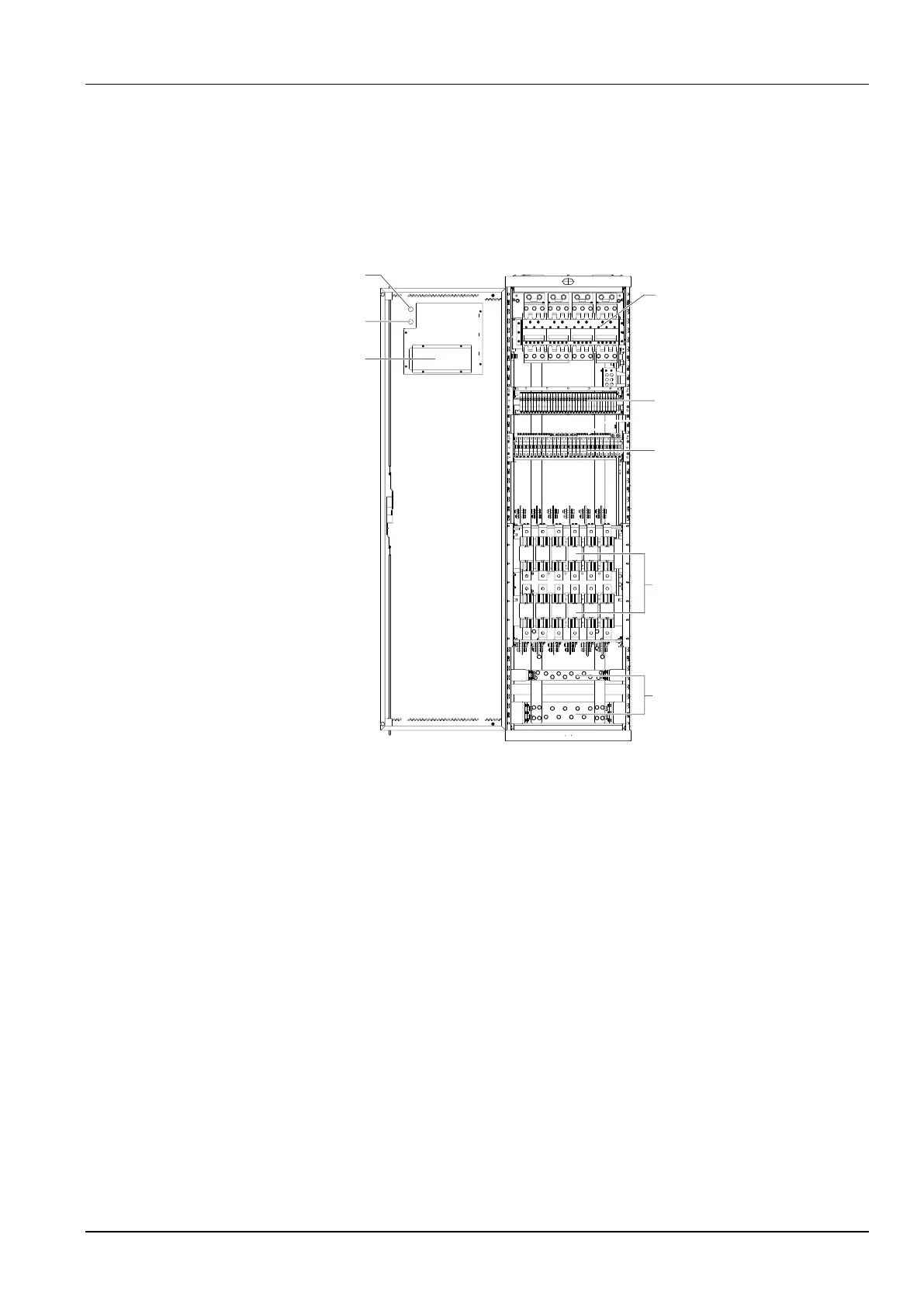

Figure 1-5 PD48/2000DD DC distribution cabinet (panels removed)
