5. Push the handle up into the module’s front panel. This will lock the module securely to the shelf.
Tighten the captive screw on the handle.
6. Repeat the above steps for each rectifier module being installed in the system.
7. After the rectifier modules are physically installed in the mounting shelf(s), they are ready for
operation immediately after power is supplied to them.
8. Certain functions (i.e. rectifier current limit, rectifier addressing) may require adjustment when
adding or replacing a rectifier module. Refer to “Rectifier Current Limit” on page 15 and the Power
System documentation for instructions.

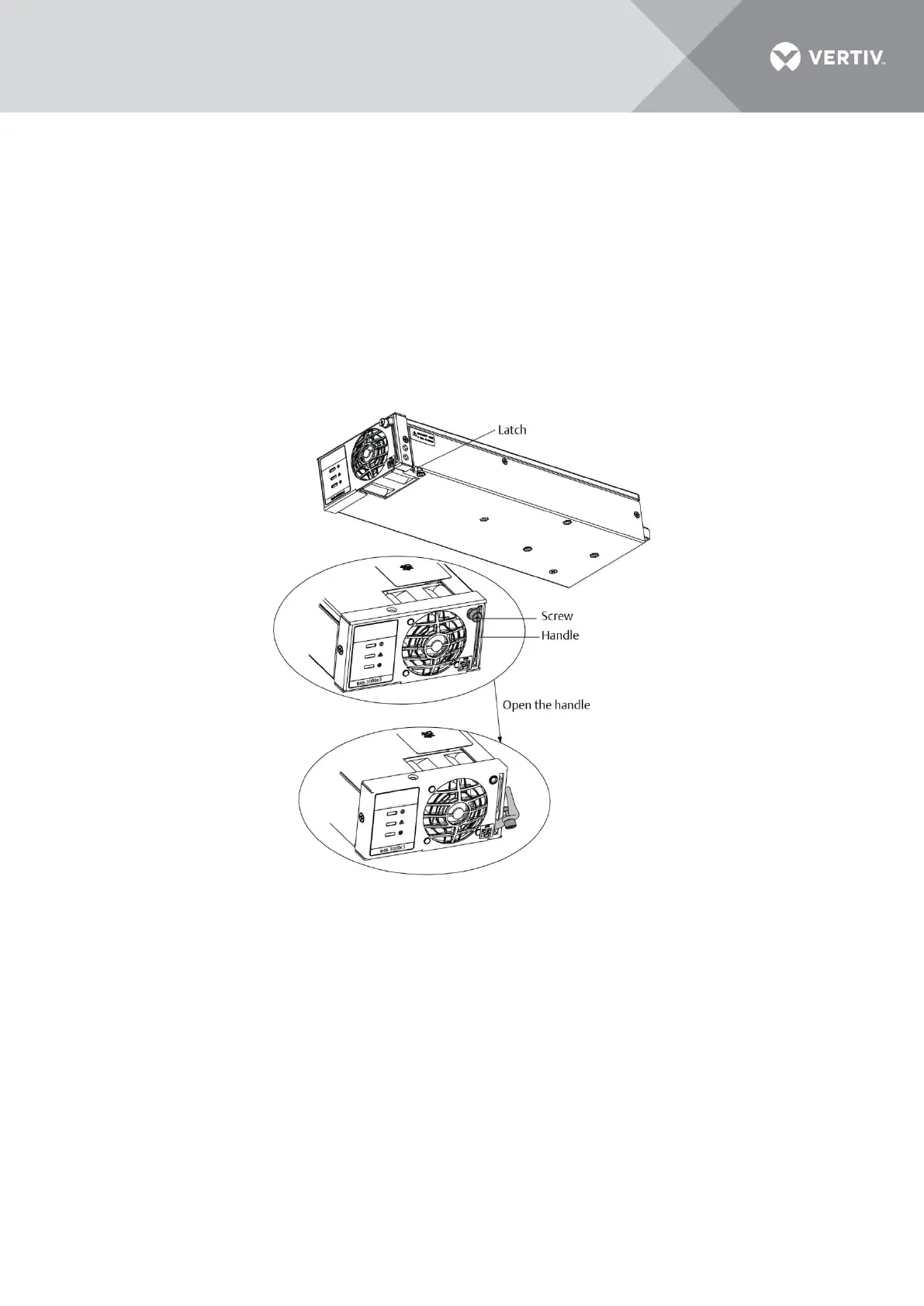

Figure 6: Installing Rectifier Module
