I. ELECTRICAL
CONTINUED

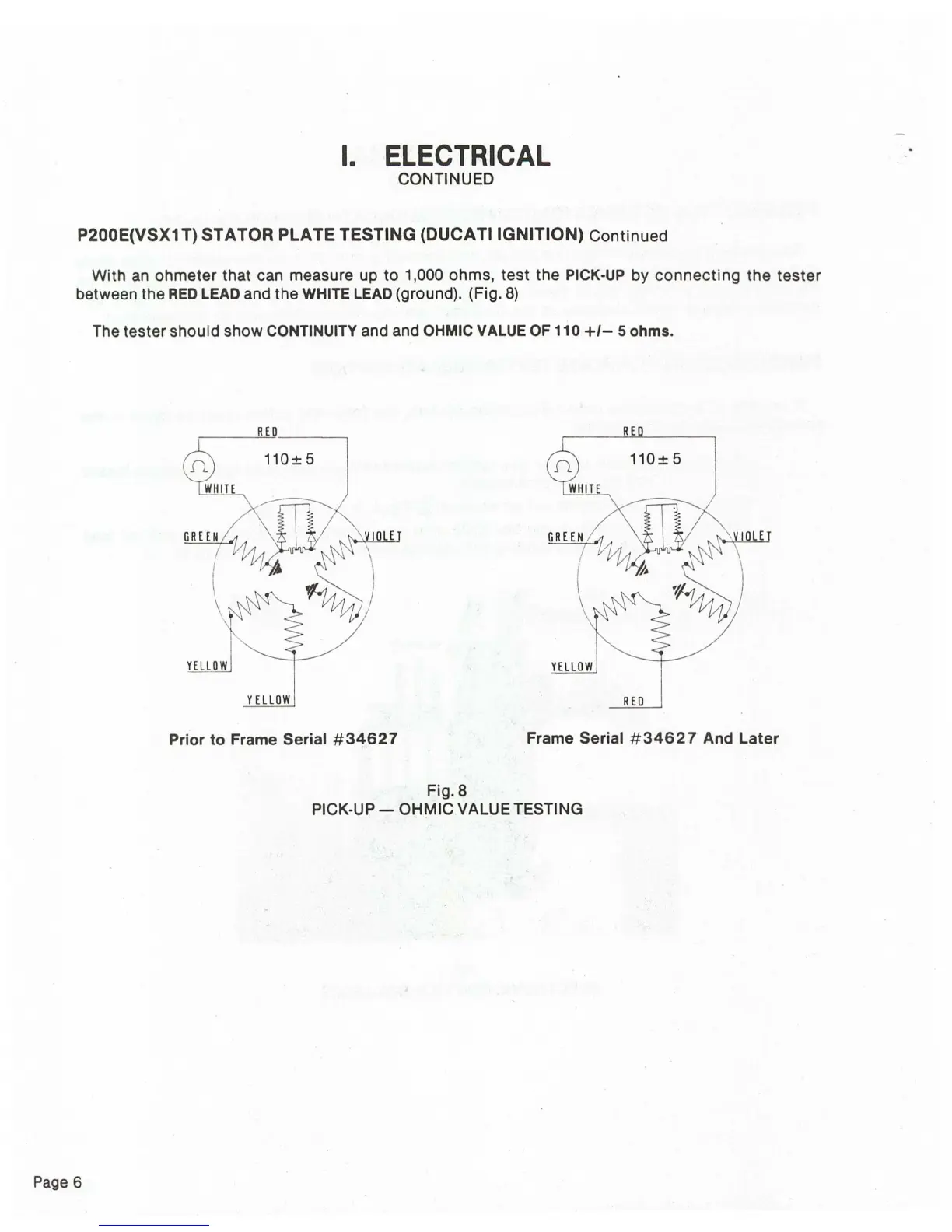

P200E(VSX1T) STATOR PLATE TESTING (DUCATIIGNITION) Continued
With an ohmeter that can measure up to 1,000 ohms, test the PICK-UP by connecting the tester
between the RED LEAD and the WHITE LEAD (ground). (Fig.8)
The tester should
show CONTINUITY and and OHMIC VALUE OF 110 +/- 5 ohms.
GREEN
(
REO
110± 5
REO
110± 5
YELLOW
YELLOW
Prior to Frame Serial #34627
REO
Frame Serial #34627 And Later
Fig.8
PICK·UP - OHMIC VALUE TESTING
Page 6

Vespa P125X Specifications

General

Cooling System	Air-cooled
Transmission	4-speed manual
Fuel Capacity	8 liters
Brakes	Drum brakes front and rear
Bore x Stroke	52.5 mm x 57 mm
Fuel System	Carburetor
Width	750 mm
Engine Type	Single-cylinder, 2-stroke
Rear Suspension	Coil spring
