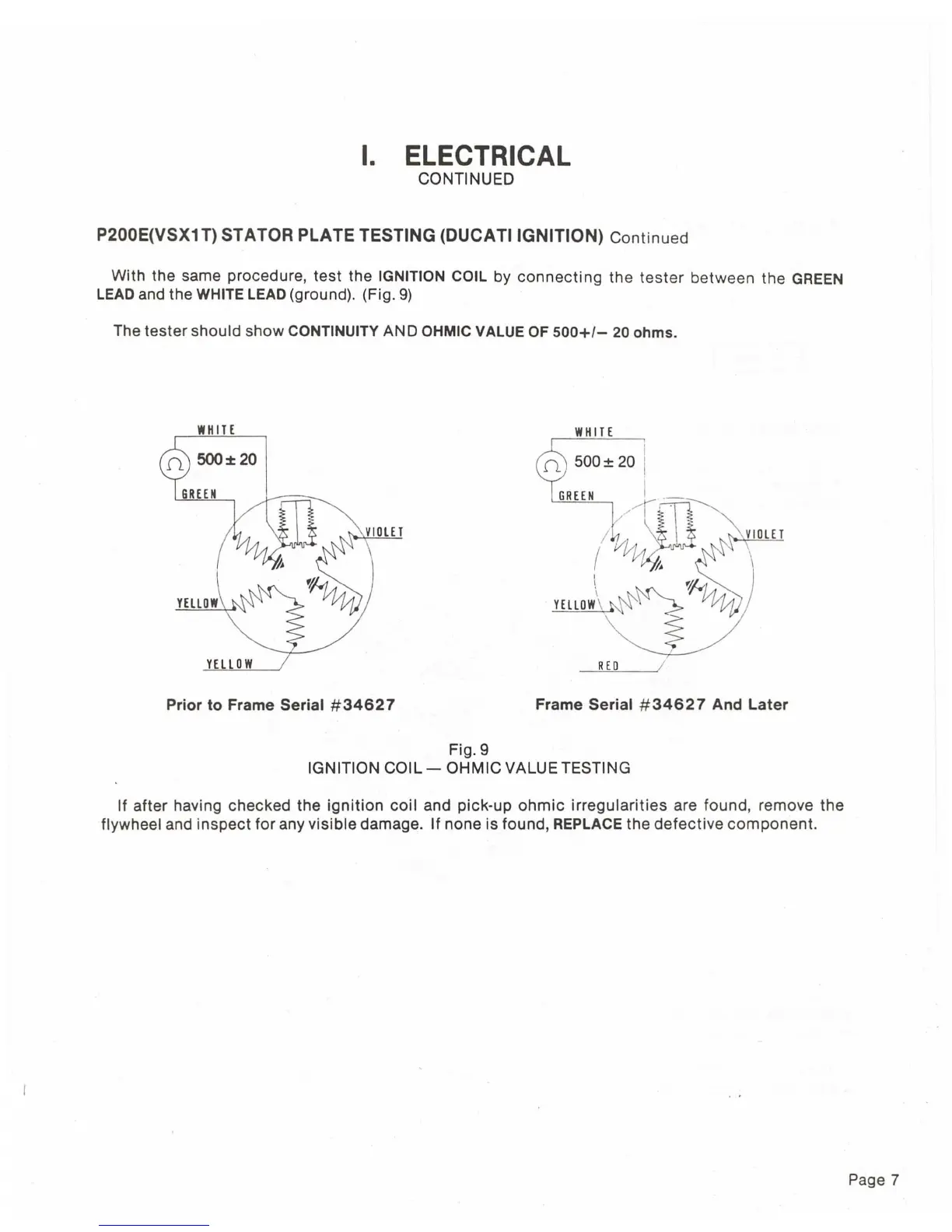

I. ELECTRICAL
CONTINUED
P200E(VSX1T) STATOR PLATE TESTING (DUCATIIGNITION) Continued
With the same procedure, test the IGNITION COIL by connecting the tester between the GREEN
LEAD and the WHITE LEAD (ground). (Fig.9)
The tester should show
CONTINUITY AND OHMIC VALUE OF 500+/- 20 ohms.
Prior to Frame Serial #34627
Frame Serial #34627 And Later
Fig.9
IGNITION COIL - OHMIC VALUE TESTING
If after having checked the
ignition coil and pick-up ohmic irregularities are found, remove the
flywheel and inspect for any visible damage. If none is found,
REPLACE the defective component.
Page 7

Vespa P125X Specifications

General

Cooling System	Air-cooled
Transmission	4-speed manual
Fuel Capacity	8 liters
Brakes	Drum brakes front and rear
Bore x Stroke	52.5 mm x 57 mm
Fuel System	Carburetor
Width	750 mm
Engine Type	Single-cylinder, 2-stroke
Rear Suspension	Coil spring
