- 4 -
①
2PCS× housing A
②
2PCS× housing B
③
2PCS× spring/cable assembly

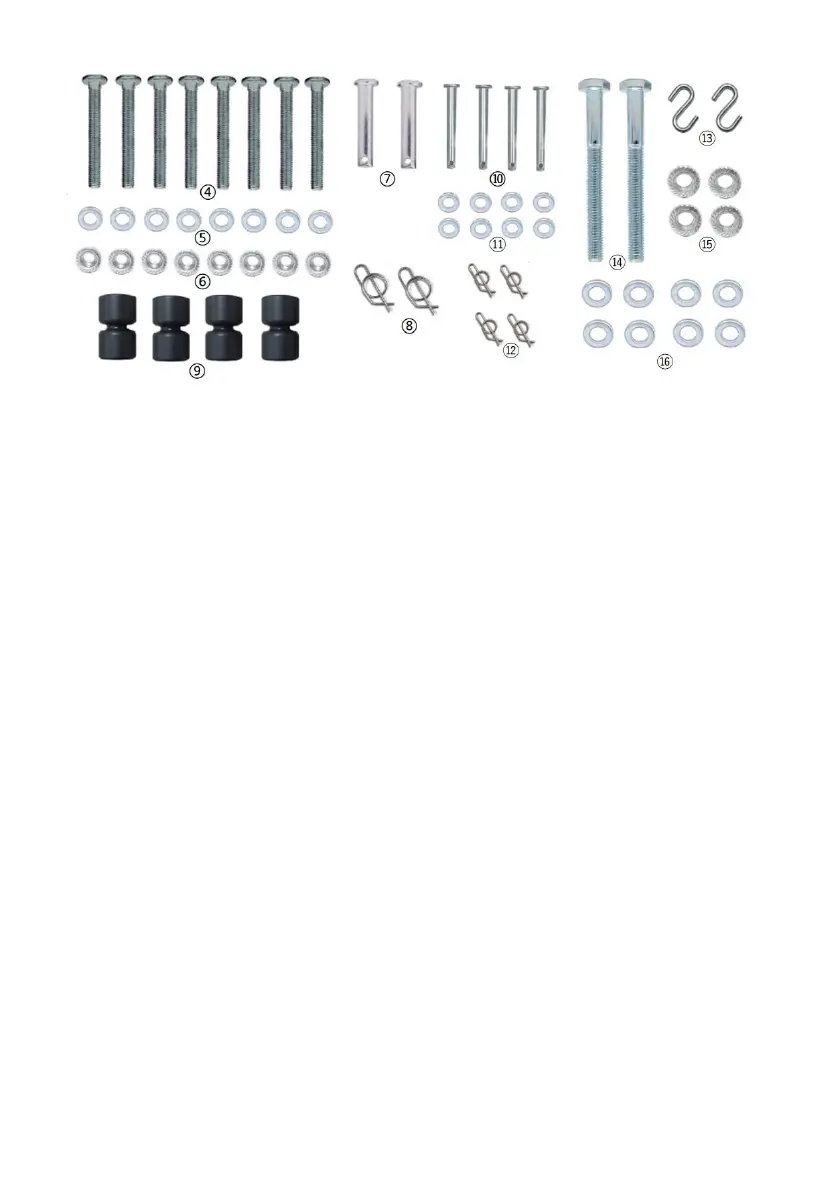

④8PCS× 5/16 inches × 3 inches mounting Bolts (M8 × 75 mm)
⑤
8PCS× 5/16-inch flat washer (M8)
⑥8PCS× 5/16-inch flanged lock nut
⑦2PCS× pin A
⑧2PCS× locking ring A
⑨4PCS× roller
⑩
4PCS× pin B
⑪
8PCS× 1/4-inch flat washer (M6)
⑫
4PCS× locking Ring B
⑬2PCS× S hook (purpose for determination of the Bolts ⑭ position)
⑭
2PCS× 1/2 inch × 5 1/2 inches gate attachment bolt Bolts
(
M12 ×
140mm
)
⑮
4PCS× 1/2-inch flanged lock nut (M12)
⑯8PCS× 1/2-inch flat washer (M12)
