Type B:
Connect the black rubber part to
the faucet. Remove the inside
small rubber ring if necessary.
Fasten the steel ring with the
screwdriver. Then fix the adapter
to the screw threads at the
bottom of the black rubber part.
HOW TO CONNECT THE HOSES TO THE ADAPTER
• Insert the hoses through the hollow bolts first. Fix the hoses on the
nozzles, then fasten the hollow bolts.
Top hose (A): Tap water outlet.
Connect the other end to the Pre-filter
Inlet. The tap water will flow into the
Pre-filter set.
Bottom hose (B): Drain water outlet.
Connect the other end to the Outlet in the
back of the unit. The drain water will flow
out from the Outlet.

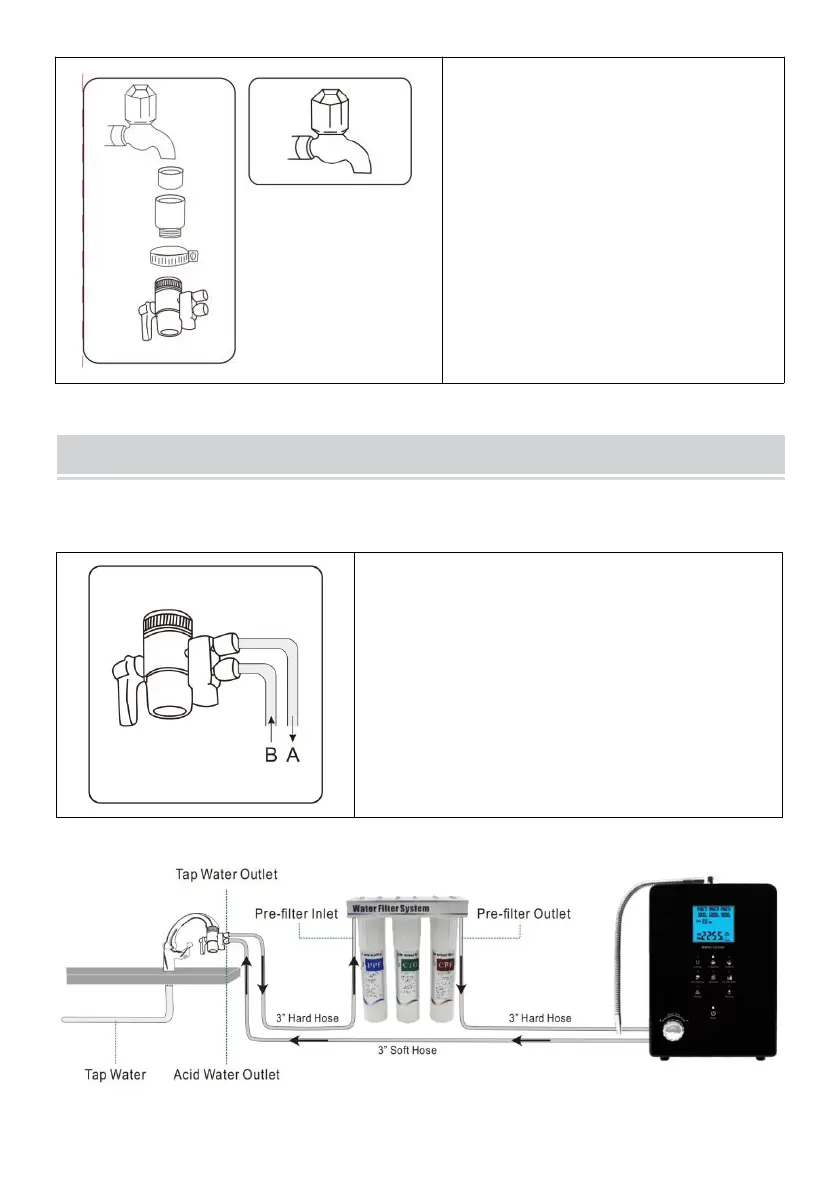

Hoses Installation Diagram:
