Step 
5/14

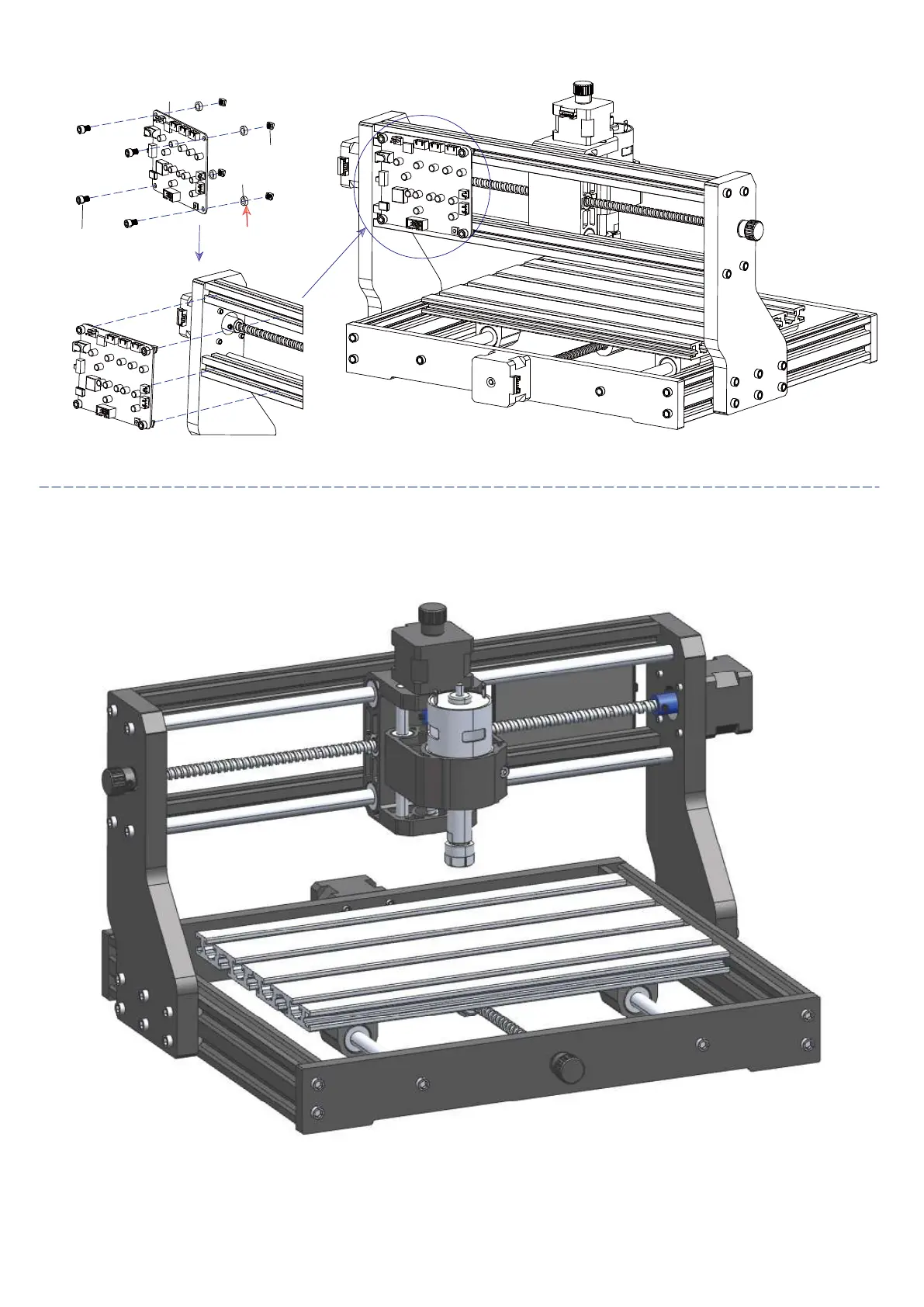

The plastic column must
be assembled between
the control board and
the aluminum parts.
C4: M5-10 4PCS
Ship nut
C1: Control board 1PCS
C2: Column 4PCS
C3: M5*10 4PCS
Screw
S3018 Pro Ver 2.3
