2 Add bogey wheel assemblies

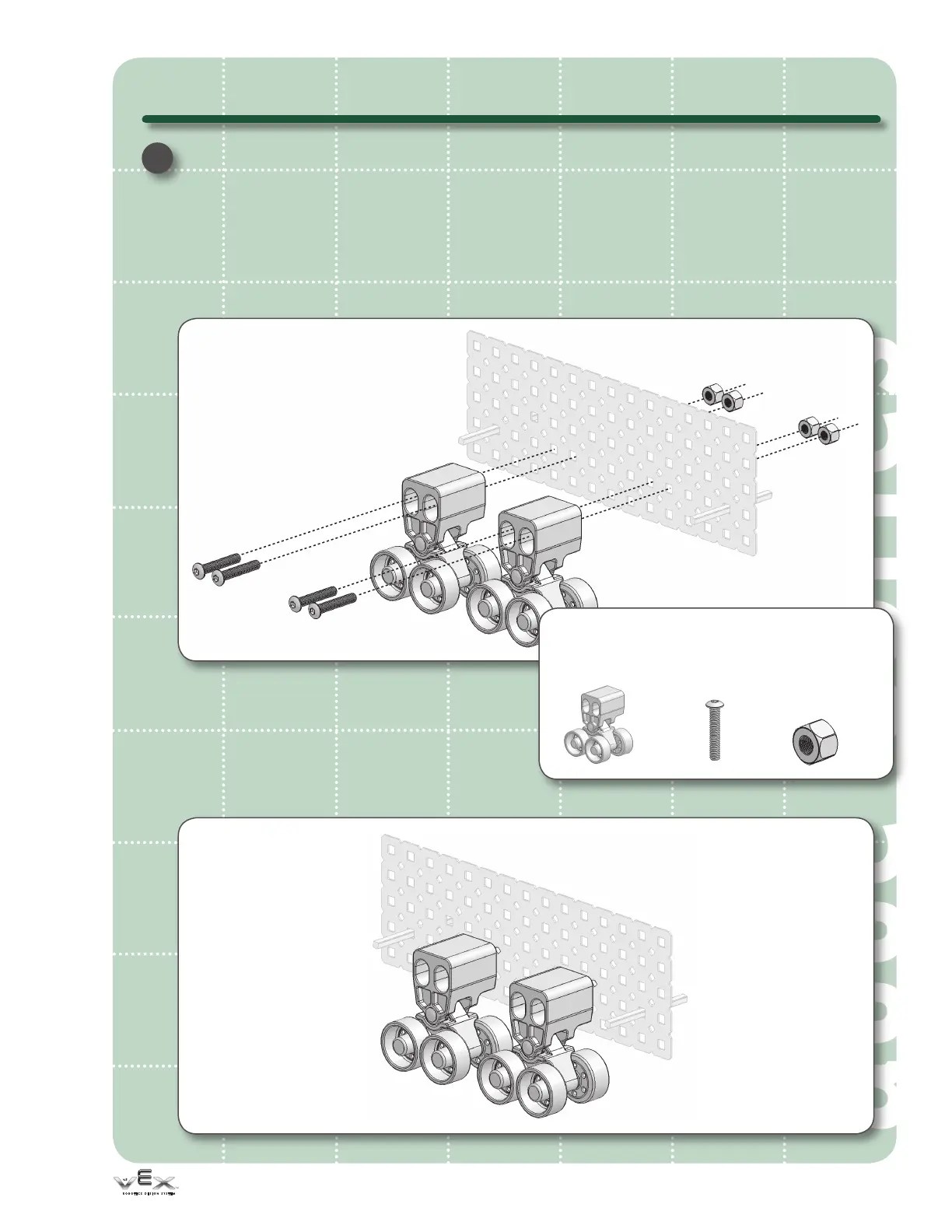

Add two bogey wheel assemblies to the support structure as shown.
Note that, for both bogey wheel assemblies, there should be two
spaces separating the bogey wheel assembly and the axle. Secure
the bogey wheel assemblies to the support structure using two
8-32x1" screws and two keps nuts per bogey wheel assembly. The
oblong holes in the bogey wheel assemblies will allow you to adjust
the tension of the tracks once you’ve finished assembling the system.
Your assembly should now look like this:
Parts needed in this step:
x 2 x 4 x 4
bogey wheel
assembly
8-32 x 1"
screw
keps nut
